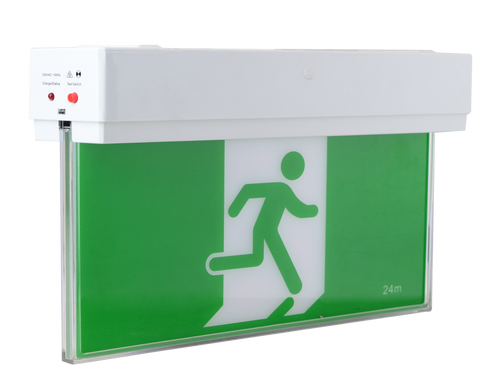

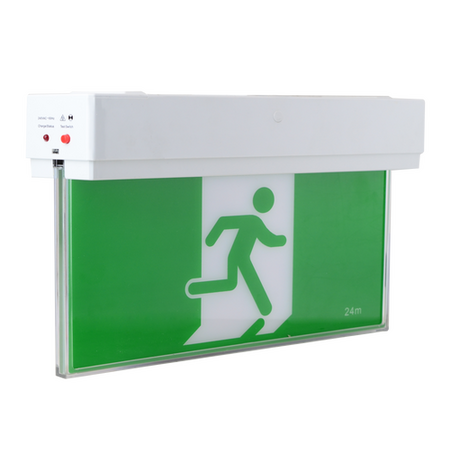

Blade Universal Exit Light | 240V | Polycarbonate Body | LED by Lawell Lightning

BRAND: Lawel Lighting
SKU: LWRE1611
$62.20 List price: $81.10
+ −
30 Days Return Delivery Options
Universal exit light with 240V input and durable polycarbonate body—ideal for commercial and residential buildings. Built for safety, with LED technology and flexible mounting options.

Product Name/Title: Blade Universal Exit

Brand: Lawell Lightning

SKU: LWRE1611

Alternatively Known As: ['Universal Exit Light', 'Blade Exit Sign', 'Emergency Exit Light', 'LED Exit Sign', 'Exit Blade Light']

Technical Specifications
  • Input Voltage: 240V
  • Construction: Polycarbonate body with transparent acrylic blade
  • Mounting: Ceiling and wall
  • Operation Mode: Maintained
  • Testing System: Manual
  • Battery: Lithium 2200mAh, 3-hour discharge
  • Classification: C0: D12.5, C90: D8
  • Viewing Distance: 24m
  • Lamps: LED, 50,000 hours lifespan
  • Operating Temperature: 1°C to 40°C

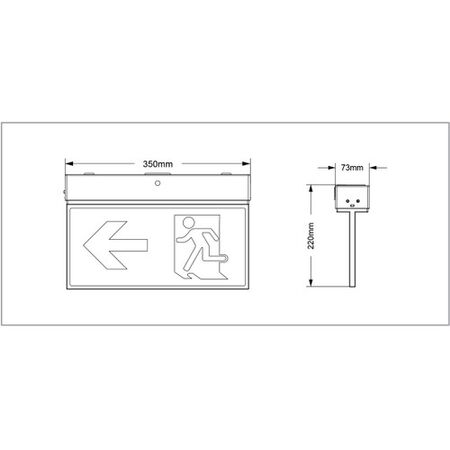

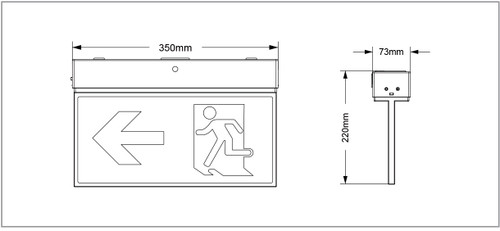

  • Dimensions (H x L x W): 220mm x 73mm x 350mm
  • Weight: 1.42 kg
Key Features
  • Low 3W standby power consumption
  • Includes both single and double sided decals: running man pictograph and EXIT
  • Large terminal block and cable entry for easy installation
  • Durable polycarbonate body with transparent acrylic blade
  • Flexible mounting: wall, ceiling single-sided, and ceiling double-sided
  • Maintained operation mode
  • Manual test switch for routine testing
  • 2200mAh lithium battery technology with 3-hour discharge
  • LED lamp with 50,000 hours lifespan
  • 24m viewing distance
Professional Installation Requirements
  • Installation must be performed by a licensed electrician to ensure compliance with AS/NZS 2293 and local regulations.
Applications
  • Commercial buildings: offices, shopping centres, warehouses
  • Residential complexes: apartments, hotels
  • Public facilities: hospitals, schools, airports
  • Any location requiring compliant emergency exit signage
Standards & Compliance
  • Complies with AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
  • Low standby power consumption reduces energy usage
  • Long-life LED reduces waste and maintenance
  • Lithium battery technology is more environmentally friendly than traditional alternatives
Warranty Information

3-year warranty covering manufacturing defects and battery performance.

Available Now

Available for immediate purchase. Ideal for commercial, residential, and public buildings requiring compliant emergency exit lighting.

E1611%20Datasheet.pdf (E1611_Datasheet.pdf, 388 Kb) [Download]

E1611%20ies.pdf (E1611_ies.pdf, 141 Kb) [Download]
