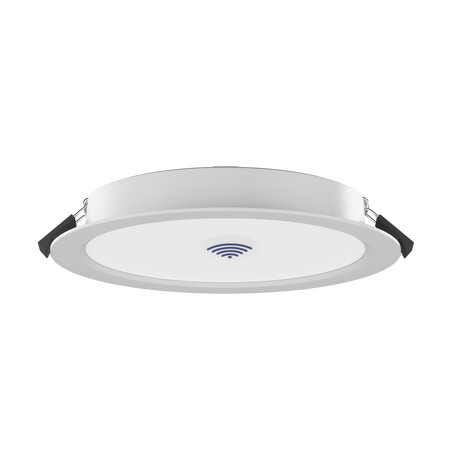

PIR Sensor Downlight 7W 3CCT IP54 White 3A Lighting

BRAND: 3A Lighting
SKU: AL5006-WHTC7S02-TS
$30.60 List price: $38.00
+ −
30 Days Return Electricians Unlock Trade Access
3A Lighting PIR Sensor Downlight White features 7W power, Epistar SMD and >90. Integrated LED sensor for automatic operation.
Technical Specifications
  • Power: 7W
  • LED Chip: Epistar SMD
  • CRI: >90
  • Input Voltage: AC220-240V 50/60Hz

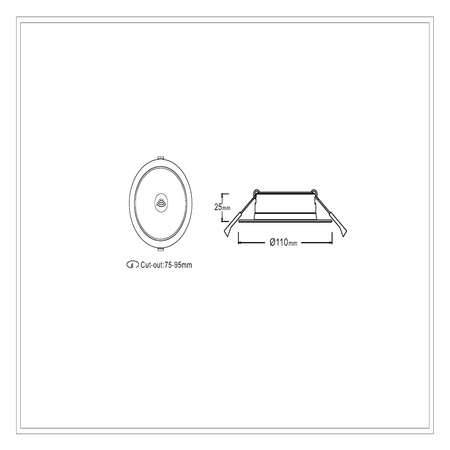

  • Size: Ø110x25mm
  • Cut out size: Ø75-95mm
  • Beam Angle: 100°
  • Colour: White
  • Selectable 3CCT
  • Surface mount
  • IP Rating: IP54
  • Luminous Flux: 110lm
  • Dimensions (H x L x W): 25mm x 110mm x 110mm
  • Weight: 0.3 kg
Key Features
  • Integrated LED sensor for automatic operation
  • 7W Epistar SMD LED chip with high CRI >90
  • Selectable 3CCT (Correlated Colour Temperatures)
  • Wide 100° beam angle for broad illumination
  • Surface mount design with IP54 rating for dust and splash resistance
  • 110 lumens output
  • Cut out size adaptable from Ø75-95mm
Professional Installation Requirements
  • Professional installation by a licensed electrician is required to ensure compliance with Australian standards and optimal sensor performance.
Applications
  • Residential: Living rooms, bedrooms, hallways
  • Commercial: Offices, retail stores, hospitality venues
  • General: Any indoor area requiring energy-efficient sensor lighting
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption
  • Long lifespan minimizes waste and replacement frequency
  • Automatic sensor operation further conserves energy
Warranty Information

3 years warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for energy-efficient, automated lighting in residential and commercial indoor spaces.

Check out our catalogue (d307c2_661c3f1e94fa472cbdc2c83cfd4f499e.pdf, 24,604 Kb) [Download]

Datasheet (0c4b3e_47974cd409374bb19c78b42cde97614b.pdf, 742 Kb) [Download]
