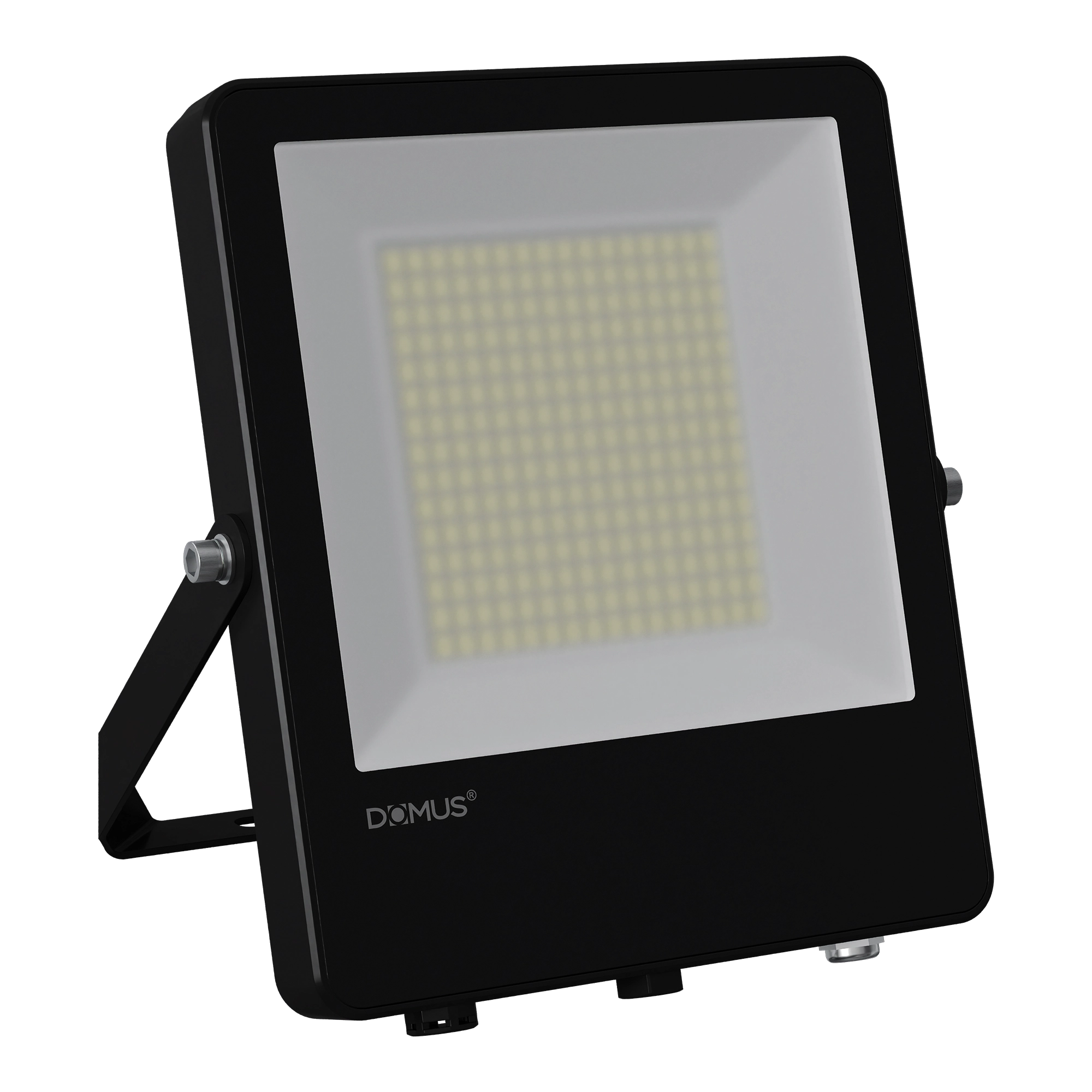

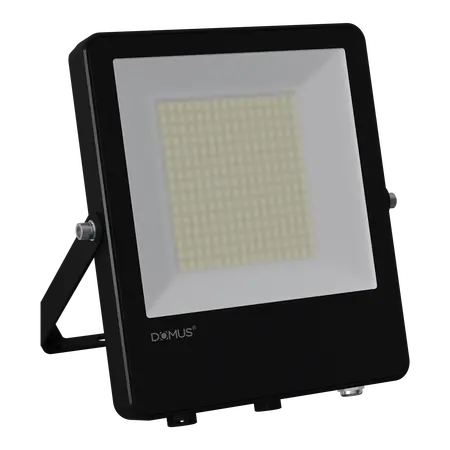

Blaze-Pro LED Floodlight 100W 24V DC Tri-Colour Black Domus
Domus Blaze-Pro 24V DC LED box floodlight, 100W, tri-colour, black.
Sign in
Please login to continue to your account.
Alternatively Known As: Blaze-Pro Marine 24V LED Floodlight, Domus 19910 LED Floodlight, 24V DC Outdoor Floodlight
- Input Voltage: 24V DC constant voltage; LED driver required
- Power: 100W nominal; DIP-selectable 50W/70W/100W per installation manual
- Lumen Output: 11,490 lm at 3000K; 12,194 lm at 4000K; 11,666 lm at 5500K
- Colour Temperature: 3000K / 4000K / 5500K switchable
- LED Type: SMD
- Luminous Efficacy: 110 lm/W
- Colour Rendering Index: ≥70
- Beam Angle: 120°
- Ingress Protection: IP66
- Impact Protection: IK08
- Dimming: No
- Lifespan: 20,000 hours
- Operating Temperature: -40°C to +45°C
- Surge Protection: 4.5 kV
- Power Factor: ≥1.0
- Driver: Driver on board; external 24V DC constant-voltage driver required
- Housing: Aluminium fascia with frosted glass lens
- Finish: Black marine-grade C5 powder coating
- Accessories: 26 cm ground spike included; 50 cm spike available separately
- Sensor Compatibility: Not compatible with BLAZE-PRO-SENSOR
- Dimensions (H x L x W): 255.1mm x 212.2mm x 26mm
- Weight: 1.28 kg
- Tri-colour selector for warm white, neutral white and white light
- Selectable 50W, 70W and 100W output using a waterproof DIP switch
- Anti-condensation breathing valve to reduce moisture build-up behind the lens
- IP66 weather-resistant construction for outdoor applications
- IK08 impact-resistant design
- 120° wide beam distribution
- Adjustable mounting bracket for angled installation
- Marine-grade C5 powder-coated finish for coastal environments
- Frosted glass lens helps reduce glare
- 26 cm ground spike included
- Installation should be performed by a professional electrician. Use a correctly rated 24V DC constant-voltage LED driver, wire fittings in parallel, isolate power before installation and do not adjust the selector switches while energised.
- Outdoor entertaining areas and BBQ areas
- Backyard and garden lighting
- Landscape and architectural floodlighting
- Driveways, paths and perimeter lighting
- Coastal and marine-adjacent outdoor installations
- Low-voltage lighting systems supplied from a 24V DC power source
- RCM marking is shown on the manufacturer's datasheet; no specific AS/NZS compliance declaration was published for this model.
- AS/NZS 60598.1 is the relevant general luminaire safety standard category for verification by the installer or project certifier.
- LED technology provides high output at approximately 110 lm/W, supporting lower energy consumption than equivalent conventional floodlights.
- Aluminium construction and the supplied glass lens are recyclable at end of service life where suitable recycling facilities are available.
- 20,000-hour rated life can reduce replacement frequency and associated material waste.
- C5 marine-grade coating may extend service life in corrosive coastal environments, reducing premature replacement.
3-year replacement warranty for the floodlight, subject to Domus Lighting warranty conditions, correct installation and installation by a licensed electrician. Domus classifies exterior LED floodlights as 3-year residential replacement and 12-month commercial replacement products in its warranty statement. ([domuslighting.com.au](https://www.domuslighting.com.au/product/blaze-pro-24v/))
Available through Domus Lighting and authorised Australian electrical and lighting distributors; confirm current stock and lead time with the distributor.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
