Trade Discount 26%

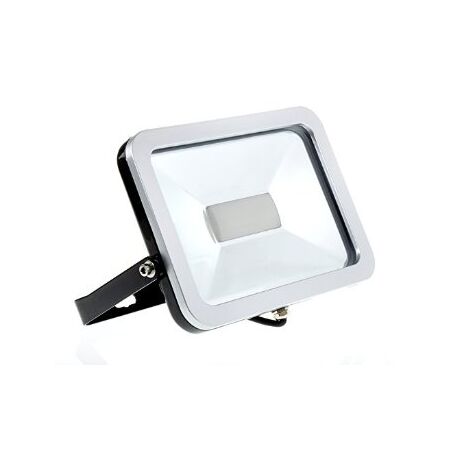

Ultra Slim LED Floodlight 20W 1400lm 4000K IP65 White LANX
The Ultra Slim LED Floodlight 20W 1400lm 4000K IP65 White LANX is suited to outdoor lighting for residential and commercial areas, security lighting, landscape and garden illumination, and signage and facade lighting. It features a 20W integrated LED chip, 240V AC input voltage, 4000K neutral white light and 1400 lumens output. The die cast aluminium body, tempered glass cover and IP65 rating provide weather-resistant construction, with dimensions of 180mm x 25mm x 175mm. See the product specifications below for installation requirements and lighting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- LED Flood Light
- Housing color: White back + silver front
- Die cast aluminium body
- Tempered glass cover
- Integrated 20W LED chip
- Built-in driver
- 30cm rubber cable, no plug
- Rated IP65
- Input voltage: 240 V AC
- Colour temperature: 4000K
- Light output: 1400 lumens

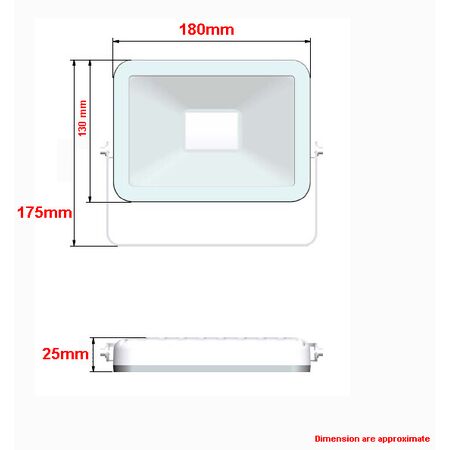

- Dimensions (H x L x W): 180mm x 25mm x 175mm
- Weight: 0.8 kg
Key Features
- Ultra slim design with die cast aluminium body
- Tempered glass cover for durability
- Integrated 20W LED chip with built-in driver
- IP65 rated for weather resistance
- Comes with 30cm rubber cable, no plug
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper wiring and safety compliance.
Applications
- Outdoor lighting for residential and commercial areas
- Security lighting
- Landscape and garden illumination
- Architectural lighting
Standards & Compliance
- Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long lifespan reduces waste and replacement frequency
Warranty Information
3 Year Replacement Warranty
Available Now
The LANX Ultra Slim LED Floodlight 20W is available now for immediate purchase. Ideal for outdoor residential and commercial lighting applications.
FAQ
Q: What are the key specifications of the Ultra Slim LED Floodlight?
A: It features a 20W integrated LED chip, 240V AC input voltage, 4000K neutral white light, 1400 lumens output and IP65 rating.
Q: Where can the Ultra Slim LED Floodlight be used?
A: It is suited to outdoor lighting for residential and commercial areas, security lighting, landscape and garden illumination, and signage and facade lighting.
For another finish option, consider the Ultra Slim LED Floodlight 20W 1400lm 4000K IP65 Grey for outdoor lighting.
For another outdoor lighting option, consider the Die Cast LED Floodlight 100W 7000lm 4000K IP65 Grey.
For outdoor area lighting applications, the Die Cast LED Floodlight 120W 8400lm 4000K IP65 Grey provides another floodlight option.
For guidance on the LANX electrical range, refer to the LANX Australis electrical range guide when selecting products.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
