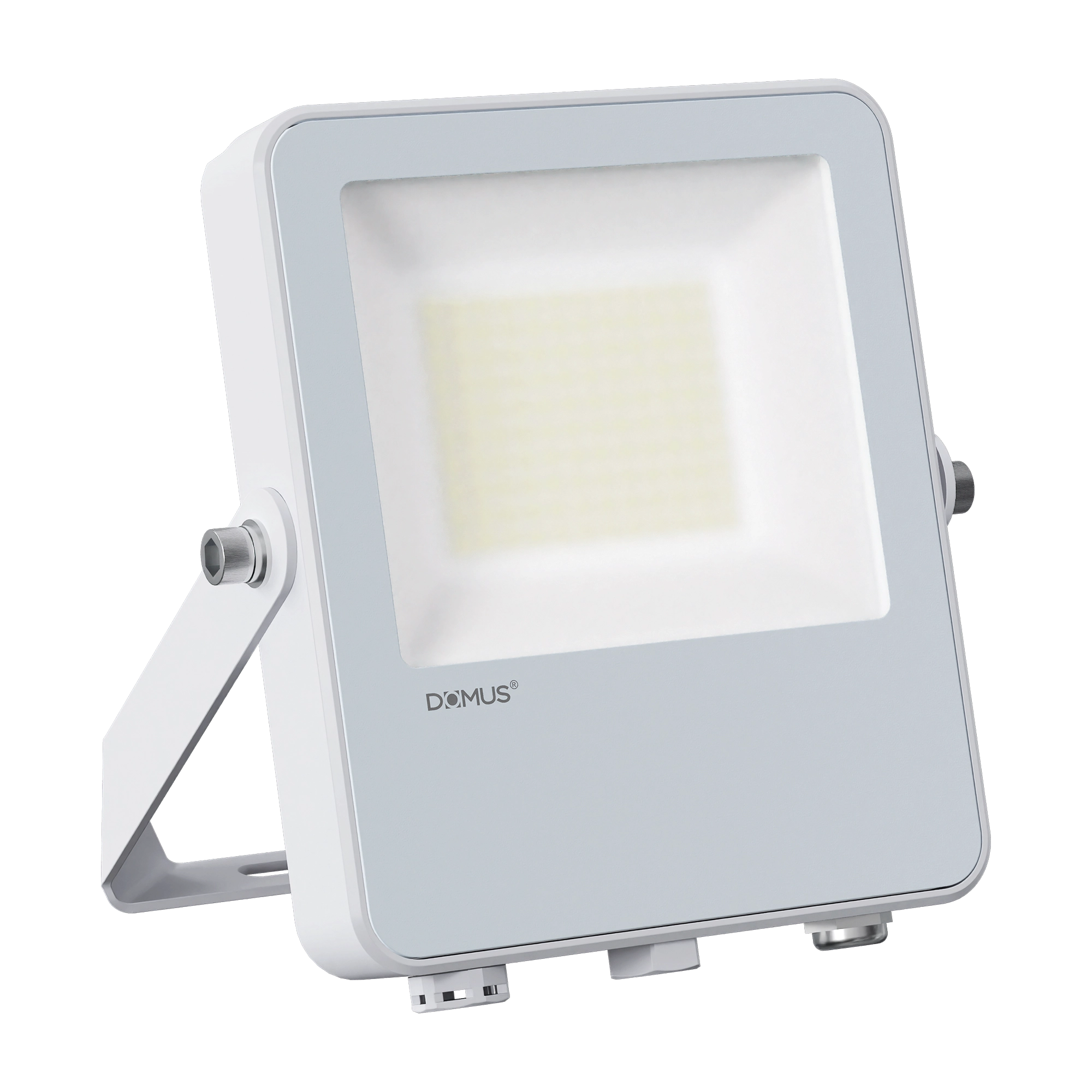

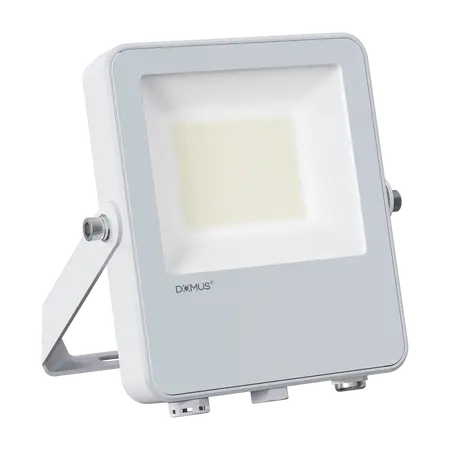

Blaze-Pro LED Floodlight 20/30/50W Fly Lead & Plug White Domus
Domus Blaze-Pro LED box floodlight, 20/30/50W selectable, tri-colour, fly lead and plug, white.
Sign in
Please login to continue to your account.
Alternatively Known As: Blaze-Pro-50 LED Floodlight, Domus LED Box Floodlight, Tri-Wattage LED Floodlight, Outdoor LED Floodlight
- Model: BLAZE-PRO-50, white variant item number 19917
- Input Voltage: 240V AC
- Power Selection: 20W / 30W / 50W
- Colour Temperature: 3000K / 4000K / 5500K selectable
- Lumen Output: 20W: up to 2,380lm; 30W: up to 3,430lm; 50W: up to 5,360lm
- LED Type: SMD
- Luminous Efficacy: 110lm/W
- Colour Rendering Index: CRI ≥70
- Beam Angle: 120°
- Ingress Protection: IP66
- Impact Protection: IK08
- Dimming: No
- Lifespan: 20,000 hours
- Driver: DOB, driver on board
- Operating Temperature: -40°C to +45°C
- Surge Protection: 4.5kV
- Cable: 1.5m flex and plug
- Sensor Interface: Built-in adaptor interface for optional plug-and-play sensor
- Lens: Frosted glass with anti-condensation breathing valve
- Body: Powder-coated cast aluminium
- Mounting: Adjustable all-angle mounting bracket
- Dimensions (H x L x W): 180.1mm x 26mm x 152.2mm
- Weight: 0.75 kg
- Selectable 20W, 30W and 50W output from one fitting
- Selectable 3000K warm white, 4000K neutral white or 5500K white colour temperature
- IP66-rated construction for outdoor applications
- Frosted glass lens helps reduce glare
- Anti-condensation breathing valve helps minimise condensation behind the lens
- Built-in interface for optional PIR or PE-cell sensor accessories
- Supplied with 1.5m flex and plug
- Adjustable mounting bracket
- White finish
- Three-year replacement warranty for residential exterior floodlight applications
- This is a 240V mains-powered luminaire. Installation, mounting and any electrical connection or alteration should be performed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian electrical installation requirements. Domus warranty eligibility requires installation by a licensed electrician.
- Residential outdoor lighting
- Backyard and garden lighting
- BBQ and outdoor entertaining areas
- Driveways, carports and pathways
- Sheds, workshops and garages
- Commercial and light-industrial exterior areas
- AS/NZS 60598.1:2017 – Luminaires, general requirements and tests
- AS/NZS 60598.2.5:2018 – Particular requirements for floodlights
- AS/NZS 3000:2018 – Electrical installations, for installation and connection requirements
- Energy-efficient LED technology provides high light output from selectable 20W, 30W or 50W power settings
- Long rated lifespan of 20,000 hours can reduce replacement frequency and material waste
- Aluminium housing is recyclable at end of service life
- Selectable wattage allows the fitting to be configured to the required light level, helping avoid unnecessary energy consumption
Three-year replacement warranty for residential exterior LED floodlights and 12-month replacement warranty for commercial applications, subject to Domus warranty conditions. Warranty claims require proof of purchase, installation by a licensed electrician and compliance with installation guidelines.
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
