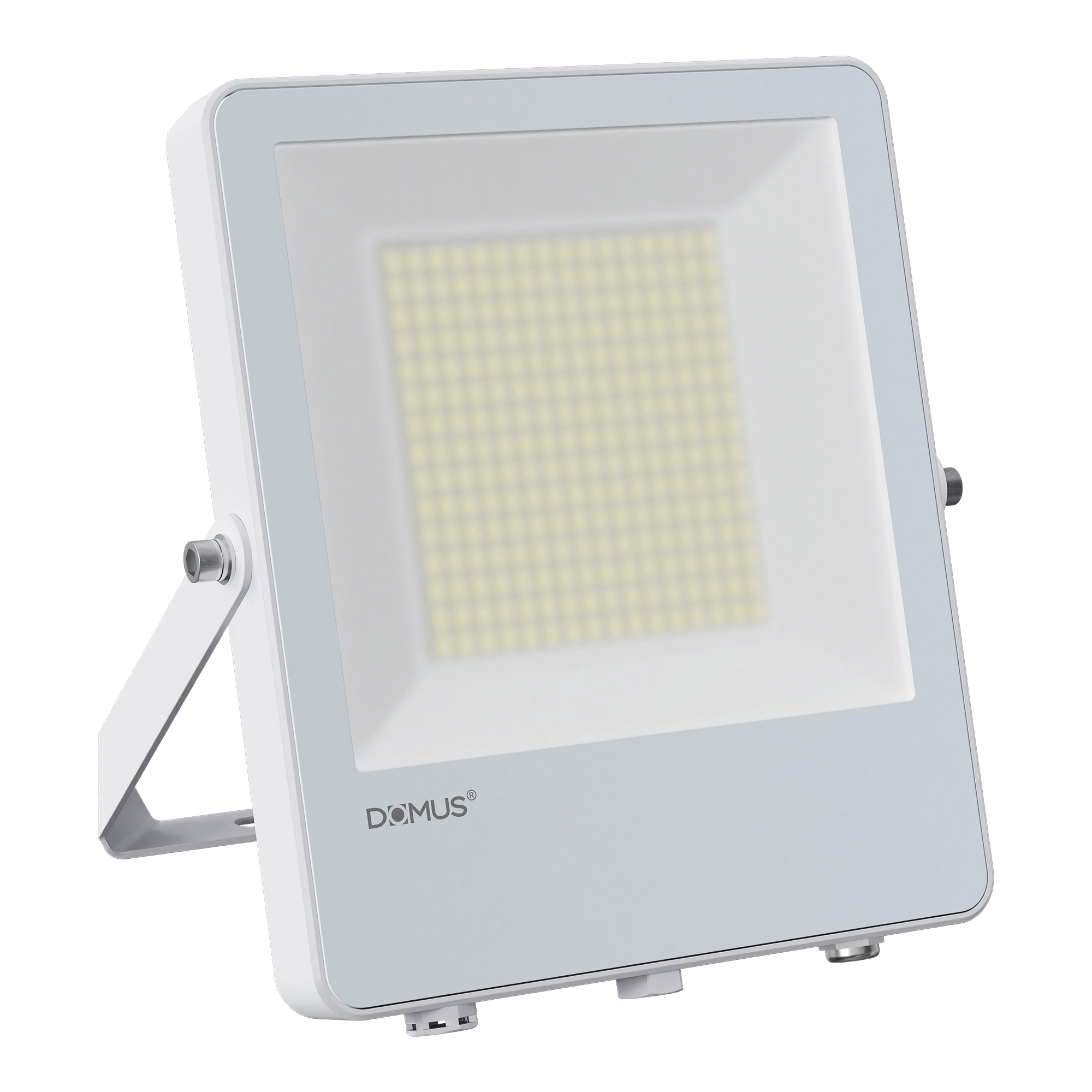

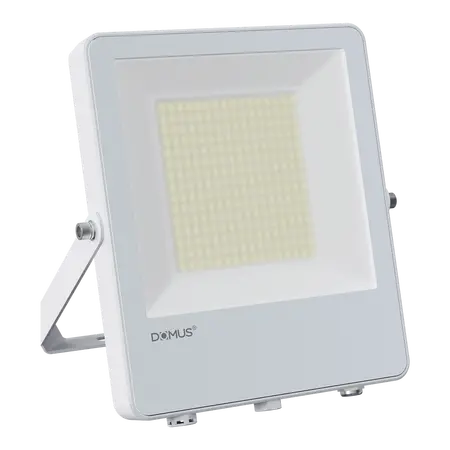

Blaze-Pro Marine LED Floodlight 50/75/100W Tri-Colour White Domus
Domus Blaze-Pro Marine LED box floodlight, 50/75/100W selectable, tri-colour, white.
Sign in
Please login to continue to your account.
Alternatively Known As: Marine LED Floodlight, Outdoor LED Floodlight, Multi-Wattage LED Floodlight, Tri-Colour LED Floodlight, LED Box Floodlight
- Input Voltage: 240V AC
- Selectable Power: 50W / 70W / 100W
- Lumen Output: 6,040–12,150 lm depending on wattage and colour temperature
- Colour Temperature: 3000K / 4000K / 5500K selectable
- LED Type: SMD
- Luminous Efficacy: 110 lm/W
- Colour Rendering Index: ≥70
- Beam Angle: 120°
- Dimming: No
- Ingress Protection: IP66
- Impact Protection: IK08
- Lifespan: 20,000 hours
- Driver: Driver on board (DOB)
- Surge Protection: 4.5 kV
- Operating Temperature: -40°C to +45°C
- Cable: 1.5 m flex and plug
- Housing: Aluminium with C5 marine-grade outdoor powder coating
- Lens: Frosted glass
- Bracket: 304 stainless steel with passivation and marine-grade coating
- Bracket Screws: 316 stainless steel
- Waterproof Connector: 304 stainless steel
- Sensor Compatibility: Built-in adaptor interface for optional PIR or PE-cell sensor
- Dimensions (H x L x W): 212.2mm x 255.1mm x 221.9mm
- Weight: 1.6 kg
- Selectable 50W, 70W and 100W output from one fitting
- Tri-colour selector for warm white, neutral white or white light
- Marine-grade finish designed for coastal and salt-water environments
- IP66 protection against dust and high-pressure water ingress
- Frosted glass lens helps reduce glare
- Anti-condensation breathing valve helps prevent moisture build-up
- Adjustable all-angle mounting bracket
- Plug-and-play sensor adaptor interface
- Supplied in a white finish with 1.5 m flex and plug
- Installation should be performed by a licensed electrician in accordance with the supplied installation instructions and AS/NZS 3000. Confirm that the selected mounting location is suitable for the IP66 rating and marine exposure conditions.
- Coastal and salt-water environments
- Outdoor entertaining areas and patios
- BBQ areas and backyards
- Driveways, yards and access ways
- Security and general area lighting
- Commercial outdoor and marine lighting installations
- AS/NZS 60598.1:2017 for general luminaire requirements and tests
- AS/NZS 60598.2.5:2002 for floodlight luminaires
- AS/NZS 3000 for electrical installation and wiring requirements
- LED technology provides high luminous efficacy and can reduce energy consumption compared with conventional floodlighting
- 20,000-hour rated lifespan can reduce replacement frequency and material waste
- Aluminium and stainless-steel components are recyclable at end of service life
- Marine-grade construction can extend service life in corrosive outdoor environments
3-year replacement warranty for residential exterior floodlight applications. Domus Lighting’s current warranty policy lists a 12-month replacement warranty for commercial exterior floodlights; installation by a licensed electrician and compliance with installation guidelines are required.
Available through Domus Lighting and authorised Australian electrical distributors.
