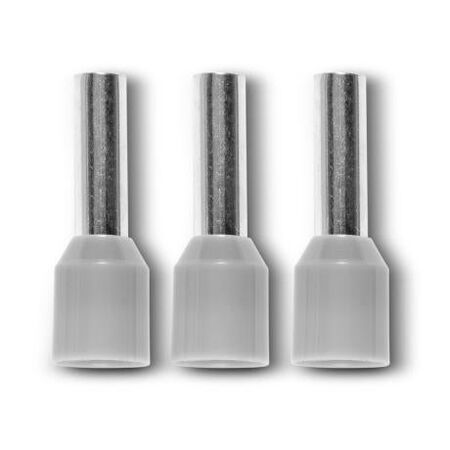

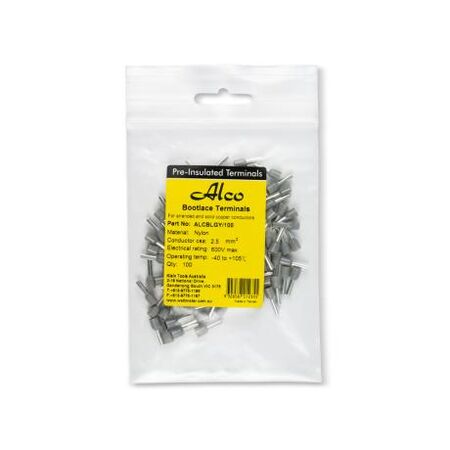

Bootlace Ferrule 2.5mm2 Grey 8mm Pack of 100 Wattmaster
Wattmaster insulated bootlace ferrule, 2.5mm2, Grey, copper, 600V. Ideal for fine-stranded conductor termination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Size: 2.5mm²
- Length: 8mm
- Insulation Material: Polyamide
- Voltage Rating: 600V max
- Colour: Grey
- Pack Quantity: 100 pieces
- Dimensions (H x L x W): 2mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Pre-insulated bootlace terminals for safe and reliable connections
- Colour-coded Polyamide insulation for easy identification
- Provides precise terminations to multi-stranded cables
- Reduces possibility of short-circuiting and prevents stray strands
- Rated for 600V maximum voltage
- Available in bulk packs for convenience
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Electrical wiring terminations for multi-stranded cables
- Industrial and residential electrical installations
- Control panels and switchboards
- Automotive and machinery wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces electrical faults and waste by ensuring secure cable connections
- Durable insulation extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Bootlace Terminal Pre-Insulated Grey 2.5mm² Length 8mm 100 Pack is available for immediate purchase, ideal for electrical wiring and termination applications.
FAQ
Q: What cable size is this bootlace ferrule designed for?
A: It is designed for 2.5mm2 fine-stranded conductors and features an 8mm pin length.
Q: Where can this bootlace ferrule be used?
A: It is suitable for electrical wiring terminations in control panels, switchboards, industrial installations and automotive machinery wiring.
Pair this bootlace ferrule with a bootlace ferrule strip for quicker preparation of multiple conductor terminations.
A twin bootlace ferrule provides a practical solution when terminating two conductors into one connection point.
Complete compatible pin-style terminations with an insulated pin connector for suitable electrical applications.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
