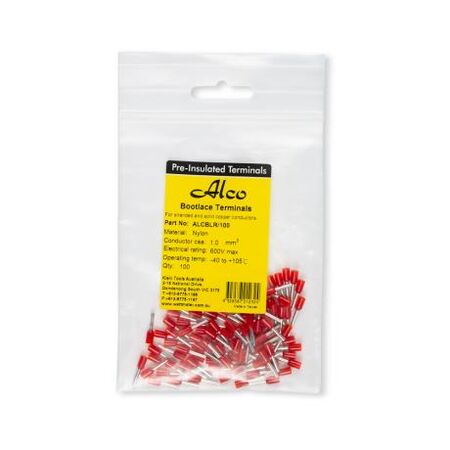

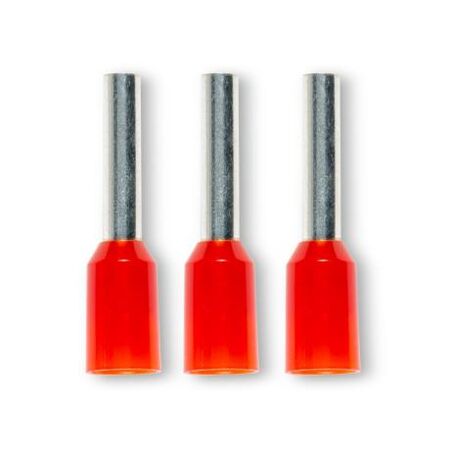

Bootlace Ferrule Insulated 1mm2 Red Pack of 100 Wattmaster
This insulated 1mm2 bootlace ferrule features an 8mm pin length for secure termination of fine-stranded conductors in electrical installations. Manufactured from copper with a red polyamide insulated sleeve and supplied in a pack of 100, it is suitable for switchboards, industrial wiring, and machinery control panels. Rated for applications up to 600V and compliant with AS/NZS 3000 Wiring Rules. See the full specifications below for installation guidance, dimensions, and application details.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Terminal Type: Bootlace terminal
- Insulation: Polyamide, colour-coded red
- Cable Size: 1mm²
- Length: 8mm
- Voltage Rating: 600V max
- Pack Quantity: 100 pieces
- Dimensions (H x L x W): 2mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Pre-insulated bootlace terminals for safe and reliable connections
- Provide precise terminations to multi-stranded cable
- Reduces possibility of short-circuiting and ensures no strands stray
- Colour-coded Polyamide insulation for easy identification
- Rated for 600V maximum voltage
- Available in bulk packs for larger projects
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring terminations for multi-stranded cables
- Industrial and residential electrical installations
- Automotive and machinery wiring connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Pre-insulated design reduces waste and improves installation efficiency
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wattmaster Bootlace Terminal Pre-Insulated Red 1mm² Length 8mm 100 Pack is available for immediate purchase, ideal for electrical wiring and termination applications.
FAQ
Q: What conductor size is this bootlace ferrule designed for?
A: It is designed for terminating 1mm2 multi-stranded conductors.
Q: What applications is this bootlace ferrule suitable for?
A: It is suitable for electrical wiring terminations, industrial and residential electrical installations, and automotive or machinery wiring connections.
Pair this bootlace ferrule with a bootlace ferrule strip to prepare multiple conductors quickly before termination.
Use a twin bootlace ferrule when connecting two stranded conductors into a single terminal connection.
Complete cable terminations with a pre-insulated end connector for secure electrical connections.
