Bootlace Ferrule Non-Insulated 16mm2 Pack of 100 Wattmaster

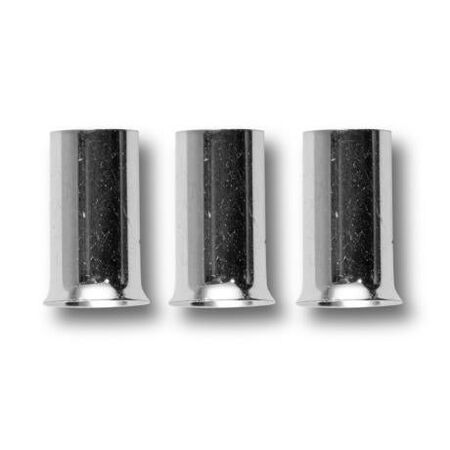

Designed for terminating 16mm² fine-stranded conductors, this non-insulated bootlace ferrule is manufactured from electro grade copper with an electro tinned finish for dependable conductivity. The flared entry design supports easier cable insertion and secure conductor termination. Suitable for industrial, commercial and electrical wiring applications and complies with AS/NZS 3000 Wiring Rules. See the product details below for specifications, dimensions and installation information.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electro grade copper
- Finish: Electro tinned
- Cable Size: 16mm²

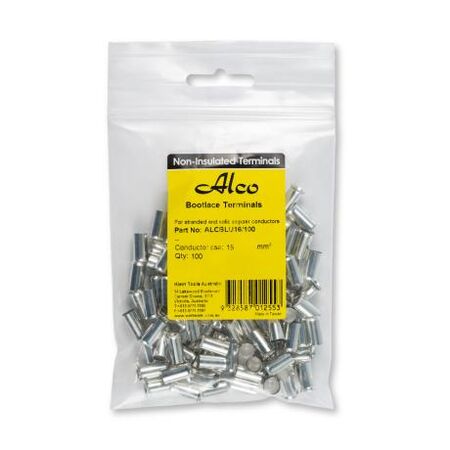

- Pack Quantity: 100 terminals
- Type: Non-insulated bootlace terminal
- Design: Flared end for easy cable entry
- Dimensions (H x L x W): 10mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- Non-insulated electro grade copper bootlace terminals
- Provide precise terminations to multi-stranded cable
- Reduce the possibility of short-circuiting and ensure no strands stray
- Electro tinned finish for high conductivity
- Flared end for easy cable entry
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring terminations for multi-stranded cables
- Industrial and commercial electrical installations
- Automotive and machinery wiring connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish enhances durability, reducing replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Wattmaster Bootlace Terminal Non-Insulated 16mm² 100 Pack is available for immediate purchase, ideal for electrical wiring and termination applications.
FAQ
Q: What conductor size is this bootlace ferrule suitable for?
A: It is designed for terminating 16mm² fine-stranded conductors.
Q: Does this bootlace ferrule comply with Australian wiring standards?
A: Yes. It complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).
Pair this installation with a bootlace ferrule strip for efficient preparation of multiple conductor terminations.
An insulated pin connector is a suitable option where pin-style wire terminations are required in compatible applications.
A twin bootlace ferrule provides a practical solution for terminating two conductors into a single terminal.
