Trade Discount 25%

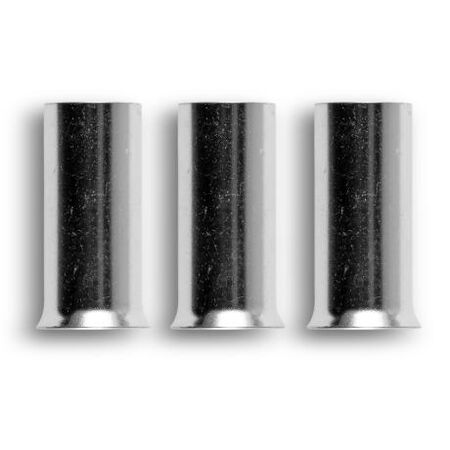

Bootlace Ferrule Non-Insulated 25mm2 Pack of 50 Wattmaster
Designed for terminating 25mm² fine-stranded conductors, this non-insulated bootlace ferrule is manufactured from electro grade copper with an electro tinned finish for dependable conductivity. The flared entry design supports smooth cable insertion while helping achieve secure conductor terminations. Suitable for industrial, residential, control panel and switchboard applications, and complies with AS/NZS 3000 Wiring Rules. See the product details below for specifications, dimensions and installation guidance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Terminal Type: Non-insulated bootlace terminal
- Material: Electro grade copper with electro tinned finish
- Cable Size Compatibility: 25mm²
- Pack Quantity: 50 pieces
- Design: Flared end for easy cable entry
- Dimensions (H x L x W): 5mm x 40mm x 10mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper bootlace terminals
- Provide precise terminations to multi-stranded cable
- Reduce the possibility of short-circuiting and ensure no strands stray
- Electro tinned finish for high conductivity
- Flared end for easy cable entry
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper termination and safety compliance.
Applications
- Electrical wiring terminations for multi-stranded cables
- Industrial and residential electrical installations
- Control panels and switchboards
- Automotive and machinery wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish enhances durability, reducing replacement frequency and waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wattmaster Bootlace Terminal Non-Insulated 25mm² 50 Pack is available now for immediate purchase. Ideal for electrical wiring and cable termination applications.
FAQ
Q: What conductor size is this bootlace ferrule designed for?
A: It is designed for terminating 25mm² fine-stranded conductors.
Q: Is this bootlace ferrule suitable for control panels and switchboards?
A: Yes. It is suitable for control panels, switchboards, industrial, residential and general electrical wiring applications.
Pair this installation with a bootlace ferrule strip for efficient preparation of multiple conductor terminations.
An insulated pin connector is a practical option where pin-style conductor terminations are required in compatible electrical installations.
A twin bootlace ferrule provides a convenient solution for terminating two conductors into a single terminal.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
