Home/Electrical/Connection/Metering Accessories/Busbar Chassis 400A 72 Way | 4Pole Top Feed | Encapsulated Material by NHP

Trade Discount 25%

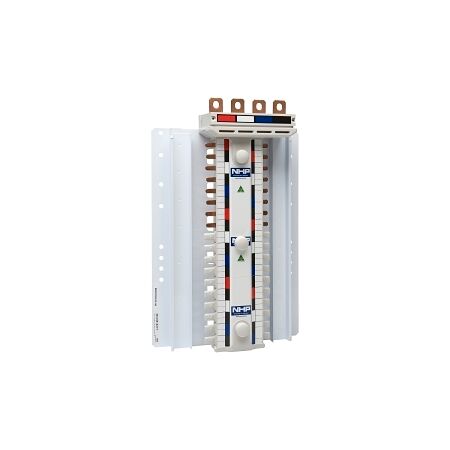

NHP POWERMAX DIN-T NC Busbar Chassis 400A 72 Way 4Pole Top Feed RNWNBN

Busbar Chassis 400A 72 Way | 4Pole Top Feed | Encapsulated Material by NHP

BRAND: NHP

SKU: NC472184TF

$3,404.40 List price: $4,520.60

+ −

30 Days Return Delivery Options

Busbar chassis with 400A rated current and 72 poles—ideal for industrial power distribution. Built for durability with encapsulated material housing and IP20 protection.

Description
Attachments

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 72 Way 4Pole Top Feed RNWNBN

Brand: NHP

SKU: NC472184TF

Alternatively Known As: NHP Busbar, Power Distribution Busbar, DIN Rail Busbar

Technical Specifications

Rated Current: 400 A
Number of Poles: 72
Nominal Voltage: 415 V
Short Time Withstand Current (1 sec): 13 kA
Short Time Withstand Current (0.3 sec): 25 kA
Short Time Withstand Current (0.1 sec): 30 kA
Assembly Arrangement: 18mm pitch
Material Housing: Encapsulated material
Degree of Protection: IP20
Dimensions (H x L x W): 674mm x 400mm x 300mm
Weight: 10 kg

Key Features

400A rated current for high power applications.
72 poles with 18mm pitch for versatile installation.
Encapsulated material housing for enhanced durability.
IP20 degree of protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in commercial and industrial settings
Construction: Suitable for use in electrical installations requiring high current capacity

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Durable construction reduces the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 400A 72 Way 4Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

Non-Returnable & Non-Cancellable

NC472184TF-AU-Chassis-NC-DINT-400A-4-Pole-Top-Feed-Datasheet.pdf (NC472184TF-AU-Chassis-NC-DINT-400A-4-Pole-Top-Feed-Datasheet.pdf, 238 Kb) [Download]
