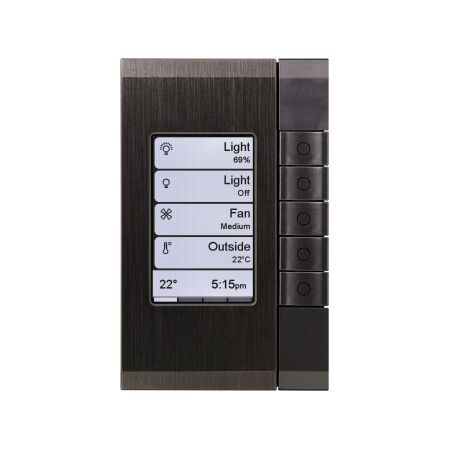

C-Bus eDLT Keypad 5 Key Grid Horizon Black Clipsal
Clipsal C-Bus EDLT Keypad Key Grid Horizon Black features 5 x push-button dual-action, C-Bus 2 wires and mini USB port. Ideal for homes, apartments, offices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Control type: 5 x push-button dual-action
- Communication port protocol: C-Bus - 2 wires
- Connector type: mini USB port (rear), socket (rear) for C-Bus
- Clamping connection capacity: 0.2...1.5 mm²
- IP Rating: IP20
- Operating temperature: 5...45 °C
- Rated supply voltage: 15...36 V DC
- Maximum supply current: 32 mA
- Display type: colour TFT display, 2.8 inch
- Dimensions (H x L x W): 123 mm x 77 mm x 77 mm
- Weight: 0.306 kg
Key Features
- Enhanced Dynamic Labelling Technology for intuitive control.
- 5 x push-button dual-action for versatile functionality.
- Local signalling with tri-colour LED on push-button.
- Compatible with LAN cable Cat. 5e.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any indoor location requiring control of lighting and devices
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Compliant with RoHS directives and environmental regulations.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The C-Bus eDLT Wall Plate with Enhanced Dynamic Labelling Technology is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with advanced functionality.
FAQ
Q: What display does the CLI5085EDLBHB keypad use?
A: It features a colour TFT display measuring 2.8 inches for the 5 push-button dual-action grid, part of the Enhanced Dynamic Labelling Technology range.
Q: What power supply does this keypad require?
A: It runs on a rated supply voltage of 15-36V DC with a maximum supply current of 32mA over the C-Bus 2-wire network.
A matching eDLT keypad is available in Espresso Black for an alternative dark finish.
A C-Bus eDLT wall plate in Horizon Black completes the keypad setup with dynamic labelling.
A C-Bus mounting frame is available separately for standard wall box installation.
