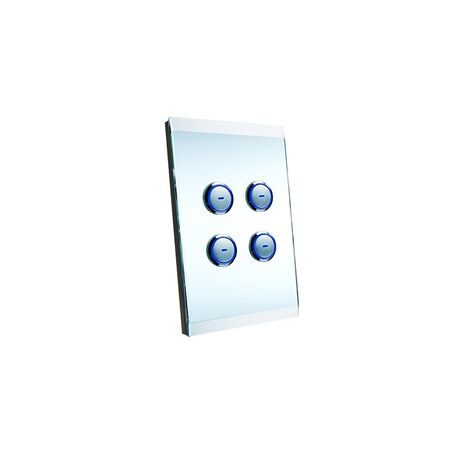

Glass Fascia Key Input Unit 4G Saturn Series Rectangular Clipsal
This 4 gang glass fascia key input unit from the Saturn Series offers dimmer control across 255 levels for C-Bus lighting scenes across larger installations. It has 84mm mounting centres, operates between 0 and 45°C, and connects via a terminal block for 0.2-1.5 sq mm wiring. Non-volatile memory retains programming through power failure, and LED gang indicators give clear status feedback per button. Full specifications and mounting requirements are detailed further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- 4 gang key input unit
- Mounting centres: 84 mm
- Operating temperature: 0 to 45°C
- Dimmer control with 255 levels
- C-Bus connection: terminal block for 0.2 - 1.5 sq mm wiring
- LED gang indicators for status feedback
- Programmable via learn mode or C-Bus toolkit software
- Mounting direction: horizontal and vertical
- Dimensions (H x L x W): 76mm x 20mm x 116mm
- Weight: 0.3 kg
Key Features
- 4 gang configuration
- Glass fascia design
- Mounting centres: 84 mm
- Operating temperature range: 0 to 45°C
- Dimmer control with 255 possible levels
- Inbuilt non-volatile memory retains programmed information during power failure
- LED gang indicators for illumination and status feedback
- Programmable via learn mode or C-Bus toolkit software
- C-Bus learn enabled
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper integration with C-Bus systems.
Applications
- Residential: Home automation and lighting control
- Commercial: Office buildings, hotels, and retail spaces
- Industrial: Automated control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient dimmer control reduces power consumption
- Non-volatile memory reduces need for reprogramming, saving resources
Warranty Information
Standard Clipsal warranty applies, typically 2 years against manufacturing defects.
Available Now
The Clipsal Glass Fascia Key Input Unit 4 Gang Saturn Series Rectangular is available for immediate purchase, ideal for residential and commercial automated lighting control applications.
FAQ
Q: How many buttons does this keypad have?
A: It's a 4 gang configuration with 84mm mounting centres, offering dimmer control across 255 levels per gang.
Q: How is this keypad programmed?
A: It's programmed via learn mode or C-Bus toolkit software, with non-volatile memory retaining settings through power loss.
Automation setups combining keypads with input monitoring can pair this with a C-Bus auxiliary input unit for learn-enabled input channels.
Larger C-Bus installations often add a C-Bus input board to expand automation zones alongside keypad control points.
Systems needing additional monitoring inputs can be extended with a SmartLiving I/O expander for tamper-protected zones.
