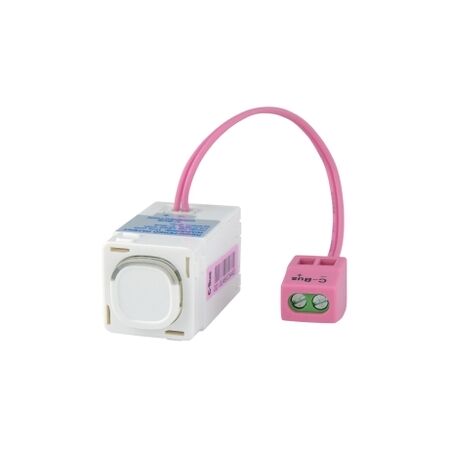

C-Bus Master Mech Module 1 Button 255 Levels LED Status Clipsal

BRAND: Clipsal
SKU: CLI5031NMML
$156.30 List price: $194.70
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal C-Bus Master Mech Module Button Levels LED features 15.36V DC, 18mA and 100 kOhm at 1-1kHz. Push-button interface for control.
Technical Specifications
  • Rated operational voltage: 15...36 V DC
  • Current consumption: 18 mA
  • Input impedance: 100 kOhm at 1-1 kHz
  • Isolation voltage: 3.75 kV from C-Bus to mains
  • Ambient temperature for operation: 0...45 °C
  • Relative humidity: 10...95 % non-condensing
  • Material: Plastic
  • Dimensions (H x L x W): 23mm x 41mm x 23mm
  • Weight: 0.1 kg
Key Features
  • Push-button interface for control
  • 255 possible dimmer levels
  • Local LED status indication
  • Wall mounted by Series 30M grid
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Smart Home: Control and management of lighting and appliances
  • Commercial: Automation in offices and retail spaces
Standards & Compliance
  • Complies with AS/NZS CISPR 15, AS/NZS CISPR 14-1, AS/NZS 60669.2.1
Environmental Benefits
  • Compliant with RoHS and free of toxic heavy metals.
Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Clipsal C-Bus Control and Management System Master Mechanism is available now for immediate purchase. Ideal for smart home and commercial automation solutions.


FAQ

Q: How many dimmer levels does the CLI5031NMML module support?

A: It supports 255 possible dimmer levels, controlled via a single push-button interface with local LED status indication.

Q: What voltage does this master mech module operate on?

A: It's rated for 15-36V DC with a current consumption of 18mA, isolated to 3.75kV from C-Bus to mains.


A matching slave mech module extends dimmer control across multiple gangs on the same C-Bus wiring.

A 4 button master mech module offers similar 255-level dimming for larger installations.

A C-Bus mounting frame is available separately for standard wall box installation.

Order with confidence — SCHNAP offers a 30-day return policy on electrical products.

5031NMML (5031NMML, 218 Kb) [Download]
