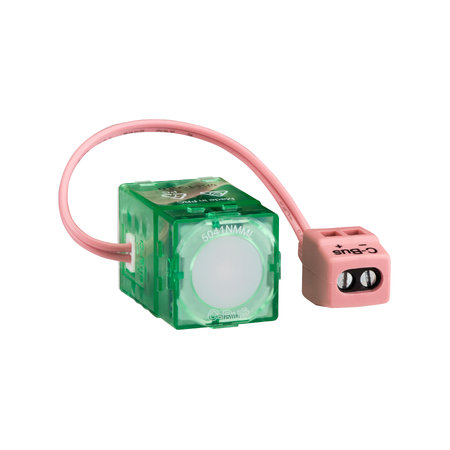

C-Bus Master Mech Module 40 Series 4 Button 255 Levels Clipsal

BRAND: Clipsal
SKU: CLI5041NMML
$146.40 List price: $182.50
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal C-Bus Master Mech Module Series Button Levels features 15.36V DC and 100 kOhm at 1-1kHz. Push-button interface for control.
Technical Specifications
  • Rated operational voltage: 15...36 V DC
  • Communication network type: C-Bus
  • Input impedance: 100 kOhm at 1-1 kHz
  • Isolation voltage: 3.75 kV from C-Bus to mains
  • Current consumption: 18 mA
  • Ambient air temperature for operation: 0...45 °C
  • Relative humidity: 10...95 % non-condensing
  • Dimensions (H x L x W): 22.8mm x 36mm x 22.8mm
  • Weight: 0.1 kg
Key Features
  • Push-button interface for control
  • 255 possible dimmer levels
  • LED local signalling for status indication
  • Compatible with C-Bus Iconic and Pro Series wall plates
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Smart Home: Control of lighting and appliances
  • Commercial: Integration into building management systems
Standards & Compliance
  • Complies with AS/NZS CISPR 15, AS/NZS CISPR 14-1, AS/NZS 60669.2.1
Environmental Benefits
  • Compliant with RoHS and free of substances of very high concern.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal C-Bus Master Module 40 Series is available now for immediate purchase. Ideal for smart home and commercial applications.


FAQ

Q: How many buttons and dimmer levels does the CLI5041NMML module support?

A: It's a 4 button module supporting up to 255 possible dimmer levels, with local LED signalling for status indication.

Q: What wall plates is this master mech module compatible with?

A: It's compatible with C-Bus Iconic and Pro Series wall plates for flexible installation options.


A matchingslave mech module extends dimmer control across multiple gangs on the same C-Bus wiring.

A 1 button master mech module offers similar 255-level dimming for smaller installations.

A C-Bus mounting frame is available separately for standard wall box installation.

Backed by SCHNAP's 30-day returns policy for added purchasing confidence.

5041NMML (5041NMML, 280 Kb) [Download]
