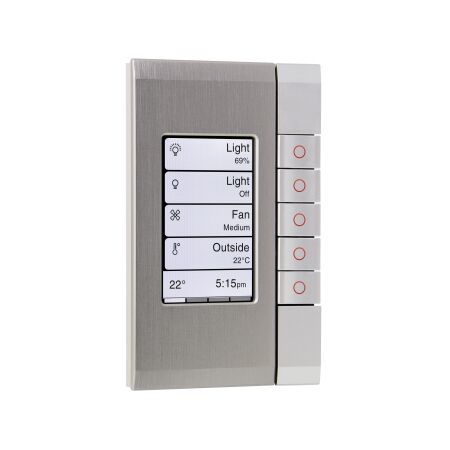

C-Bus eDLT Wall Plate 5 Key Dynamic Stainless Steel Clipsal

BRAND: Clipsal
SKU: CLI5085EDLBSS
$828.80 List price: $1,032.90
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal C-Bus EDLT Wall Plate Key Dynamic Stainless features 5 x push-button dual-action, C-Bus 2 wires and mini USB port.
Technical Specifications
  • Control type: 5 x push-button dual-action
  • Communication port protocol: C-Bus - 2 wires
  • Connector type: mini USB port (rear), socket (rear) for C-Bus
  • Clamping connection capacity: 0.2...1.5 mm²
  • IP Rating: IP20
  • Operating temperature: 5...45 °C
  • Rated supply voltage: 15...36 V DC
  • Maximum supply current: 32 mA
  • Display type: colour TFT display, 2.8 inch
  • Dimensions (H x L x W): 123 mm x 77 mm x 77 mm
  • Weight: 0.306 kg
Key Features
  • Enhanced Dynamic Labelling Technology with 5 push-button dual-action controls.
  • Local signalling with tri-colour LED status on push-button.
  • Compatible with LAN cable Cat. 5e for communication.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any indoor location requiring control of lighting and devices
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Compliant with RoHS directives and environmental regulations.
Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The C-Bus eDLT Wall Plate is available now for immediate purchase. Ideal for residential and commercial spaces, providing advanced control solutions.


FAQ

Q: What display does the CLI5085EDLBSS wall plate use?

A: It features a 2.8 inch colour TFT display with tri-colour LED status signalling for the 5 key dynamic dual-action grid.

Q: What power supply does this wall plate require?

A: It runs on a rated supply voltage of 15-36V DC with a maximum supply current of 32mA over the C-Bus 2-wire network.


A matching eDLT keypad in stainless steel completes the control setup for this wall plate.

A C-Bus eDLT wall plate is also available in Espresso Black for a darker finish.

A C-Bus mounting frame is available separately for standard wall box installation.

Backed by SCHNAP's 30-day returns policy for added purchasing confidence.

5085EDLB-SS (5085EDLB-SS, 242 Kb) [Download]
