Cable Gauge TDR Technology | ±2% Accuracy | Built-in Voltmeter | Aegis
Cable gauge with TDR technology and ±2% accuracy—ideal for telecommunications and electrical diagnostics. Built for precise cable measurement, with a built-in voltmeter for safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

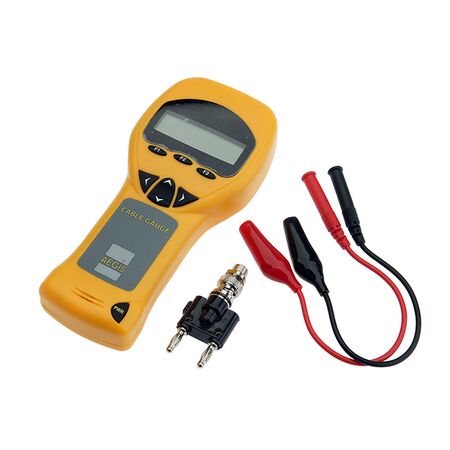

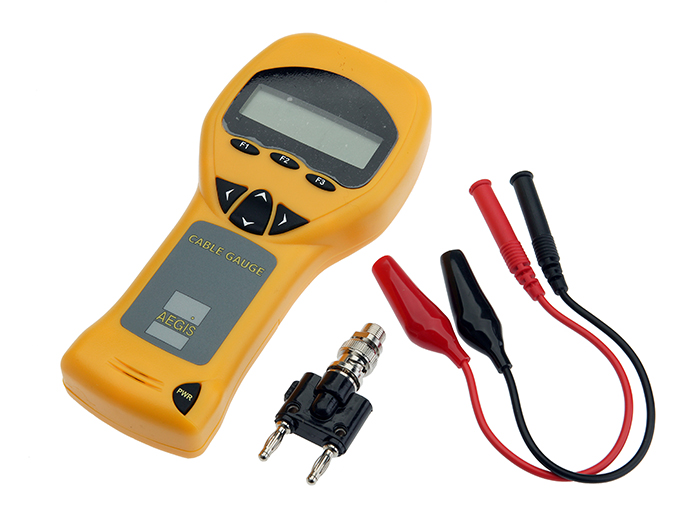

Product Name/Title: Cable Gauge
Brand: Aegis
SKU: CZ20050
Alternatively Known As: Cable Length Tester, Cable Fault Locator, TDR Cable Tester, Cable Fault Finder, Cable Length Meter
Technical Specifications
- TDR technology with ±2% accuracy
- Measures cable length, opens, and shorts by the metre
- Built-in true RMS voltmeter for voltage measurement up to 250V
- Pre-stored library of Australian and New Zealand cable types
- Universal banana jack connectors with included BNC and F adapters
- Single button operation for measuring or toning cables
- Full graphic display for comprehensive measurement information
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 0.5 kg
Key Features
- Simple to operate with single push button for measuring or toning cables
- Full graphic display showing all cable and measurement information on one screen
- Built-in library of Australian and New Zealand cable types for easy cable selection
- Universal banana jack connectors compatible with a wide range of test leads and adapters
- Includes BNC and F adapters for versatile connectivity
- Measures cable length, detects opens and shorts with ±2% accuracy using TDR technology
- Built-in true RMS voltmeter continuously measures voltage up to 250V to warn of unsafe conditions
- Injects tracing tone onto conductors for cable tracing with a probe
Professional Installation Requirements
- No professional installation required; designed for use by telecommunications, electrical, and data installers.
Applications
- Telecommunications cable testing and fault location
- Electrical cable length measurement and diagnostics
- Data and video cable installers for stocktaking and troubleshooting
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce cable waste by accurately measuring remaining cable length
- Enables precise fault location to minimize unnecessary cable replacement and digging
Warranty Information
Standard 1 year warranty against manufacturing defects.
Available Now
The Aegis Cable Gauge is available now for immediate purchase. Ideal for telecommunications, electrical, data, and video cable installers requiring accurate cable length measurement and fault detection.
