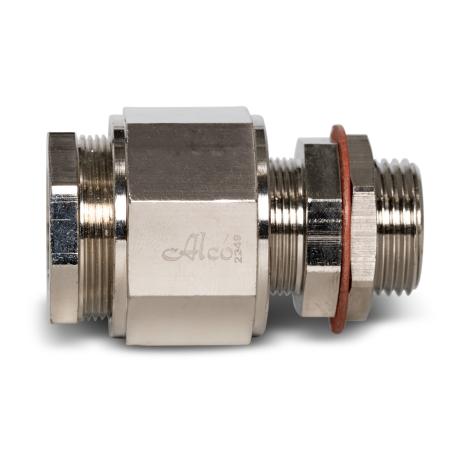

Cable Gland Brass EMC Weatherproof M20 | IP66/68 Rated | 13-17mm Cable Diameter | by Wattmaster
The Cable Gland Brass EMC Weatherproof M20 is designed for reliable indoor and outdoor cable installations requiring EMC protection. With an IP66/68 rating for water immersion and a durable brass construction, it ensures a secure seal for cable diameters from 13mm to 17mm. Ideal for industrial and commercial applications, this gland provides effective weatherproofing and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cable Gland Brass EMC Weatherproof M20 | IP66/68 Rated | 13-17mm Cable Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCEMC20
Alternatively Known As: EMC Cable Gland M20, Brass Cable Gland Weatherproof, EMC Weatherproof Cable Gland 13-17mm
Technical Specifications
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Cable Diameter Range: 13-17mm
- Ingress Protection: IP66/68 (30m water immersion)
- Temperature Range: –20°C to +80°C
- Locknut Supplied: Yes
- Standards Compliance: AS1939-1990
- Dimensions (H x L x W): 40mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Provides effective seal on cable sheath and ensures contact between screen and earth (body)
- Weatherproof with IP66/68 rating (up to 30m water immersion)
- Constructed from durable brass with nickel plating for corrosion resistance
- Includes locknut as standard for secure fitting
- Seal made from TPE for reliable temperature and environmental resistance
- Suitable for cable diameters from 13mm to 17mm
- Temperature operating range from –20°C to +80°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper EMC grounding and weatherproof sealing.
Applications
- Indoor and outdoor cable installations requiring EMC protection
- Industrial and commercial electrical wiring
- Environments needing weatherproof cable sealing
Standards & Compliance
- Complies with AS1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design prevents ingress of water and contaminants, reducing maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass EMC Weatherproof Cable Gland M20 for 13-17mm cable diameter is available for immediate purchase, ideal for industrial and commercial electrical installations requiring EMC protection and weatherproofing.
