Cable Length Meter | Measures Up to 30,000m | Digital Display & Resistance Measurement | Majortech
Cable length meter with a measurement range up to 30,000m and digital display—ideal for electrical contractors and utilities. Built for precise cable length and resistance measurement, with a user-select mode for various standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

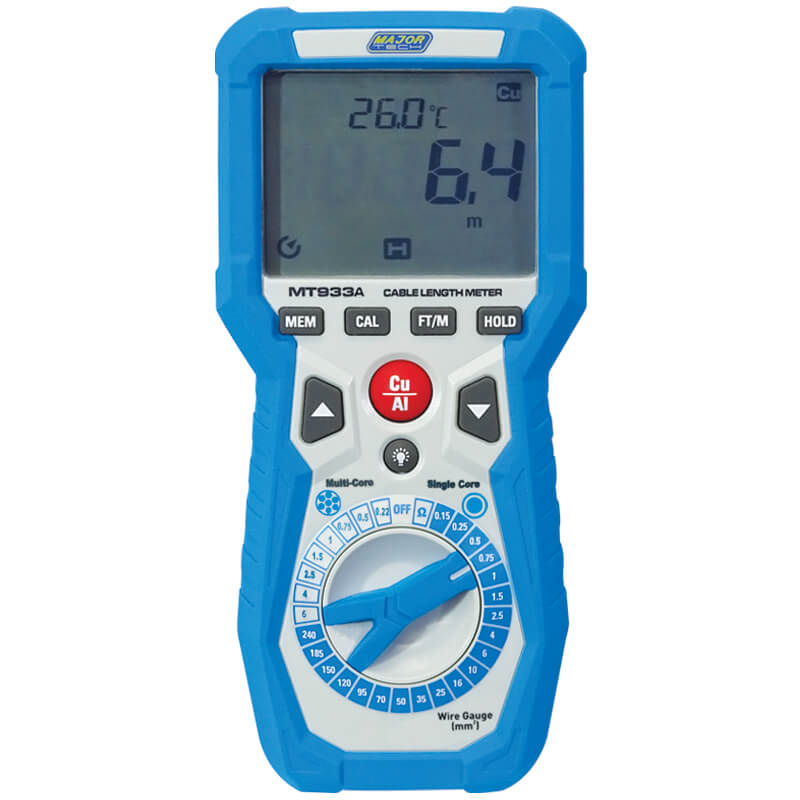

Product Name/Title: Cable Length Meter | Measures Up to 30,000m | Digital Display & Resistance Measurement | Majortech
Brand: Majortech
SKU: MT933
Alternatively Known As: Digital Cable Length Tester, Handheld Cable Meter, Cable Reel Length Meter, Milliohm Meter, Wire Length Meter
Technical Specifications
- Length Measurement Range: up to 30,000m
- Length Resolution: 1m or 0.01km depending on range
- Length Accuracy: ±(1% + 1m) to ±(1.2% + 1m)
- Resistance Range: up to 1999.9mΩ
- Resistance Resolution: 0.1mΩ
- Resistance Accuracy: ±(1% + 3)
- Temperature Range: -5 to 50°C
- Temperature Resolution: 0.1°C
- Temperature Accuracy: ±(2% + 1.8°C)
- Display: Large backlit LCD
- Dimensions (H x L x W): 80mm x 40mm x 150mm
- Weight: 0.5 kg
Key Features
- 20,000 count handheld, battery operated cable length meter
- Measures cable length up to 30,000m with gauges from 0.15mm² to 240mm²
- Digital display of cable length without unrolling reels
- User-select mode pre-programmed to Australian standard multi-core cables
- Alternative programming for other standards via user select mode
- Measures resistance and length of copper or aluminium cables
- Large backlit LCD display showing temperature and measurements
- Temperature measurement range from -5 to 50°C
Professional Installation Requirements
- No professional installation required; handheld device designed for field use by trained personnel.
Applications
- Electrical Contractors for cable inventory control
- Utilities for cable length measurement
- Distributors managing cable stock
- Measurement of any reeled wire or cable up to 30,000m
- Precision milliohm meter for resistance measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Battery operated for portable use reducing need for power sources
- Accurate measurement reduces cable waste and over-ordering
- Supports efficient inventory management minimizing excess stock
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech MT933A Cable Length Meter is available now for immediate purchase. Ideal for electrical contractors, utilities, and distributors requiring precise cable length and resistance measurements.
