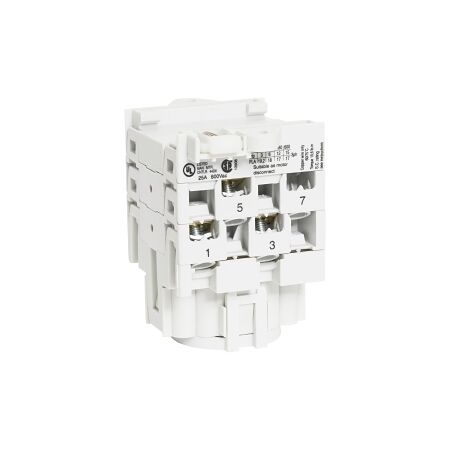

Cam Switch 3 Pole Off On 25A Base Mount DIN Rail NHP

BRAND: Sprecher + Schuh
SKU: LA2251783
$256.30 List price: $319.40
+ −
30 Days Return Electricians Unlock Trade Access
This 3 pole off/on cam switch is designed for industrial machinery control, automation and commercial electrical distribution systems. It provides 25A rated operation current and uses DIN rail mounting for installation. The unit supports 1.5-6 mm² rigid conductors and 1.5-4 mm² flexible conductors, with dimensions of 62mm x 71.5mm x 100mm. Refer to the product specifications below for current ratings, wiring requirements and mounting details.
Technical Specifications
  • Rated operation power at AC 3 400 V: 11 kW
  • Rated operation current at AC 15 230 V: 8 A
  • Rated operation current at AC 15 400 V: 6 A
  • Rated operation current at AC 22A 690 V: 25 A
  • Rated operation current at AC 22A 220-500 V: 25 A
  • Rated operation current at AC 21A 690 V: 25 A
  • Rated operation current at AC 1 690 V: 25 A
  • Thermal current enclosed: 25 A
  • Thermal current open: 30 A
  • Type of electrical connection: Screw connection
  • Material housing: Plastic
  • Wire conductor size rigid cable: 1.5-6 mm²
  • Wire conductor size flex cable: 1.5-4 mm²
  • Degree of protection: IP20
  • Mechanical life service cycles: 1,000,000 cycles
  • Number of switch positions: 2
  • Operating temperature: -25 to 60 °C
  • Dimensions (H x L x W): 62mm x 71.5mm x 100mm
  • Weight: 0.5 kg
Key Features
  • 3 pole design for versatile switching applications.
  • Rated for 25A operation, suitable for various electrical loads.
  • DIN rail mounting for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery control and automation
  • Commercial: Electrical distribution systems
Standards & Compliance
  • Complies with relevant Australian electrical standards.
Environmental Benefits
  • Durable design reduces the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Off On 25A Base Mount is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

Non-Returnable & Non-Cancellable


FAQ

Q: What is the rated operation current of this cam switch?
A: The cam switch has a rated operation current of 25A at AC22A 690V and AC21A 690V.

Q: What mounting and wiring specifications does it have?
A: It uses DIN rail mounting and supports 1.5-6 mm² rigid conductors and 1.5-4 mm² flexible conductors.


For lower-current off/on switching, a 3 pole cam switch provides another switching option.
For three-pole changeover applications, use a 3 pole cam switch with panel mounting.
For two-pole off/on switching, consider a 2 pole cam switch for panel mounting.

Use the switch amp rating guide when selecting the appropriate current rating for a cam switch.

Register for a trade account to access exclusive pricing on this and other electrical products.
