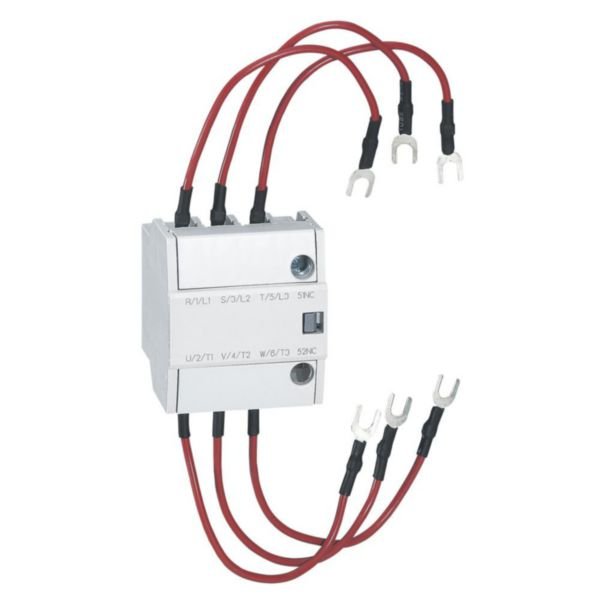

Capacitor Switching Unit for CTX3 3P | 30kVar at 415V | Easy Installation | by Legrand
The Capacitor Switching Unit for CTX3 3P is designed for optimal motor control in tertiary and industrial applications, supporting a maximum power of 30kVar at 415V. This unit easily mounts on the front of CTX3 3P contactors rated from 9A to 40A, ensuring efficient capacitor switching and improved energy efficiency. Ideal for qualified electricians, it enhances motor protection systems while complying with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Capacitor Switching Unit for CTX3 3P | 30kVar at 415V | Easy Installation | by Legrand
Brand: Legrand
SKU: 416874
Alternatively Known As: Capacitor switching block, CTX3 capacitor unit, Motor contactor capacitor switch
Technical Specifications
- Maximum power: 30kVar at 415V
- Compatible with CTX3 3P contactors rated from 9A to 40A
- Type: Capacitor switching unit
- Mounting: Front of CTX3 3P contactor
- Dimensions (H x L x W): 120mm x 90mm x 70mm
- Weight: 1.5 kg
Key Features
- Maximum power rating of 30kVar at 415V
- Designed for mounting on the front of CTX3 3P contactors from 9A to 40A
- Specifically designed for tertiary and industrial applications
- Easy installation by fixing on the front side of the contactor
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and capacitor switching units to ensure safety and compliance.
Applications
- Tertiary electrical installations
- Industrial electrical installations
- Motor control and protection systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by optimizing capacitor switching in motor control circuits
- Supports reduction of reactive power consumption, lowering energy losses
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
The Legrand Capacitor Switching Unit for CTX3 3P 9A to 40A is available for immediate purchase, ideal for tertiary and industrial motor control applications.
