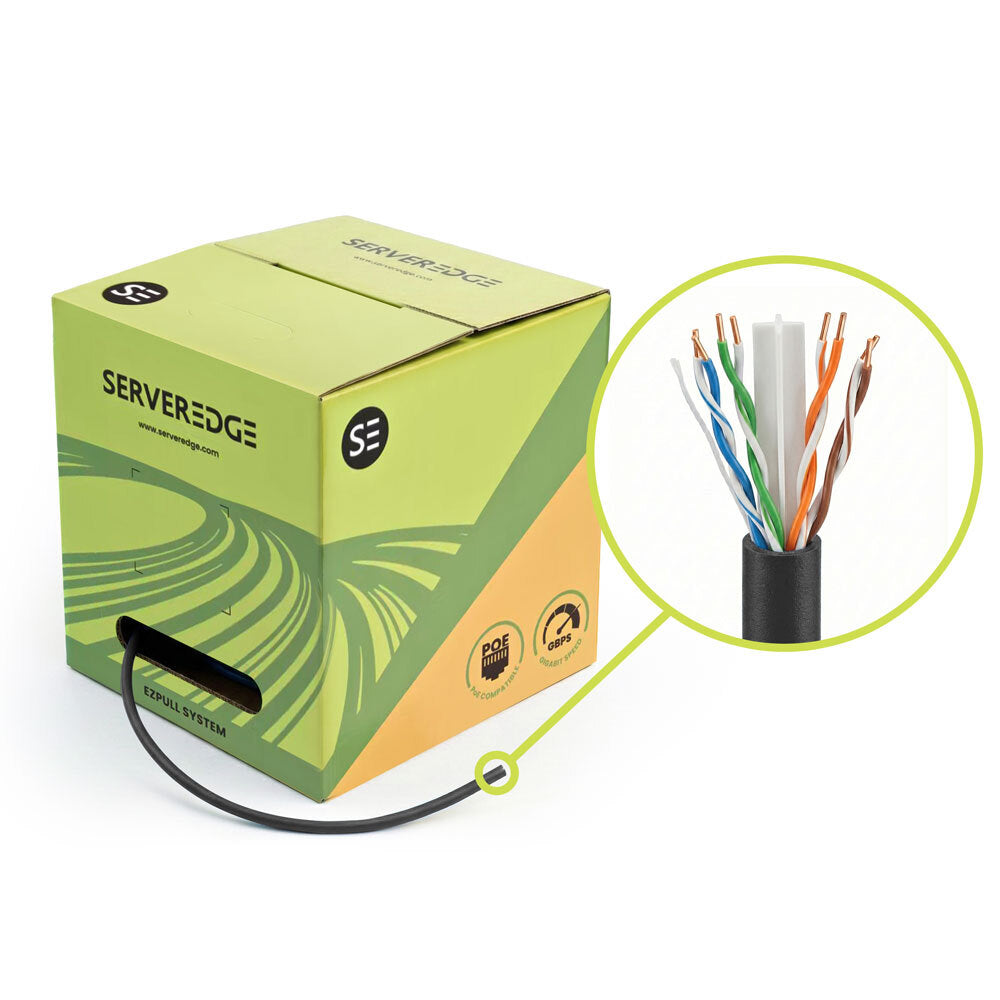

Cat6 Cable 305m UTP Solid Black Serveredge
Serveredge Cat6 cable features UTP solid 24AWG conductors, a black PVC jacket and a 305m box. Ideal for structured cabling and permanent links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Cat6 Ethernet Cable, Cat6 Data Cable, U/UTP Structured Cabling, 24AWG Solid Network Cable
Technical Specifications
- Cable Category: Category 6
- Cable Type: U/UTP, unshielded twisted pair
- Cable Length: 305 m
- Conductor Size: 24 AWG
- Conductor Material: Soft-annealed bare copper
- Conductor Construction: 4 solid twisted pairs, 8 conductors
- Sheath Material: Flame-retardant PVC
- Outer Diameter: 5.5 mm ±0.5 mm
- Insulation Material: High-density polyethylene
- Insulation Thickness: 0.20 mm
- Rip Cord: Included under sheath
- Twisted Pair Lay Length: ≤38 mm
- Maximum Network Application: 1000BASE-T
- Packaging: Dispenser reel in box carton
- Manufacturer Standards: ISO/IEC 11801 Ed. 2.2 Class E; IEC 61156-5:2009; ANSI/TIA-568-C.2
- Dimensions (H x L x W): 220mm x 330mm x 330mm
- Weight: 13 kg
Key Features
- Solid 24AWG bare copper conductors for permanent-link structured cabling
- Unshielded twisted-pair construction with four colour-coded pairs
- Flame-retardant PVC outer jacket suitable for general indoor network installations
- Integrated pair divider helps maintain pair geometry and transmission performance
- Sequential measurement markings assist cable-length management during installation
- Supplied in a practical 305m dispenser box
- Supports Category 6 applications up to 1000BASE-T
Professional Installation Requirements
- Fixed or concealed telecommunications cabling should be installed, terminated and tested by an appropriately registered Australian cabler in accordance with AS/CA S009 and applicable ACMA requirements.
Applications
- Permanent horizontal cabling in offices, commercial buildings and homes
- Structured voice and data cabling systems
- Ethernet network infrastructure and patch-panel installations
- Data racks, server rooms and communications cabinets
- 1000BASE-T Gigabit Ethernet networks
Standards & Compliance
- AS/CA S008:2020 — applicable requirements for customer cabling products; confirm product-specific compliance documentation before installation
- AS/CA S009:2020 — installation requirements for customer cabling
- AS/NZS 3080 — structured telecommunications cabling performance and installation reference
Environmental Benefits
- Bare copper conductors are recyclable at end of product life
- Solid-copper construction and durable PVC insulation support long service life and reduce replacement waste
- Permanent structured cabling can support network upgrades without replacing the installed cable infrastructure
Warranty Information
2-year standalone Serveredge warranty. The warranty may extend to 25 years when used as part of a certified structured cabling system and the required certification is completed, subject to Serveredge terms and conditions.
Available Now
Available through Serveredge and authorised Australian electrical, data-cabling and communications distributors; live stock status should be confirmed before ordering.
