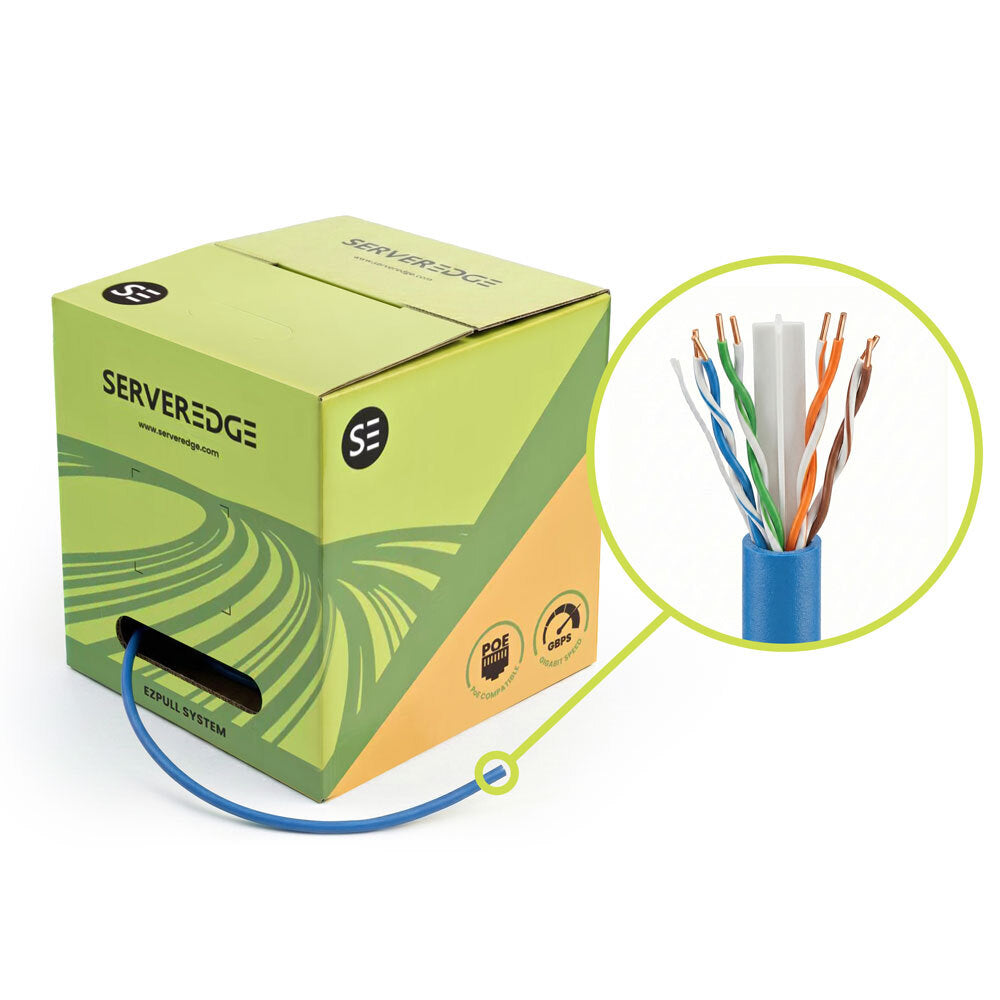

Cat6 Cable 305m UTP Solid Blue Serveredge
Serveredge Cat6 cable features UTP solid 24AWG conductors, a blue PVC jacket and a 305m box. Ideal for structured cabling and permanent links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Cat6 Ethernet Cable, Cat6 Data Cable, Cat6 U/UTP Cable, Solid-Core Network Cable
Technical Specifications
- Cable Category: Category 6
- Cable Length: 305m
- Cable Type: UTP, unshielded twisted pair
- Conductor Size: 24AWG
- Conductor Material: Soft-annealed bare copper
- Cable Construction: 4 solid twisted pairs
- Jacket Material: FR PVC
- Jacket Colour: Blue
- Insulation Material: High-density polyethylene
- Nominal Cable Diameter: 5.5mm ±0.5mm
- Rip Cord: Included beneath jacket
- Pair Lay Length: ≤38mm
- Applications: Supports up to 1000BASE-T
- Packaging: Reel in box carton
- Jacket Marking: Sequential measurement markings
- Dimensions (H x L x W): 225mm x 420mm x 420mm
- Weight: 11 kg
Key Features
- Solid 24AWG copper conductors for permanent-link and structured-cabling installations
- Unshielded four-pair construction for standard Cat6 network cabling
- Integrated pair divider to assist pair separation and crosstalk performance
- Blue PVC jacket for cable identification and routing
- 305m reel suitable for longer cable runs
- Supports applications designed for Category 6 and lower-rated systems
- Suitable for Gigabit Ethernet applications up to 1000BASE-T
- Sequential markings help identify remaining cable length
Professional Installation Requirements
- Fixed or concealed telecommunications cabling in Australia should be installed by a registered cabler in accordance with AS/CA S009:2020 and current ACMA cabling requirements. Terminate solid-core cable with compatible permanent-link outlets, patch panels or plugs.
Applications
- Structured cabling systems
- Permanent horizontal network links
- Commercial and residential Ethernet installations
- Data cabinets, patch panels and telecommunications outlets
- Gigabit Ethernet networks up to 1000BASE-T
- Voice, data and IP device cabling
Standards & Compliance
- AS/CA S008:2020 Requirements for Customer Cabling Products, incorporating Amendment No.1/2025, is the applicable Australian customer-cabling product standard
- AS/CA S009:2020 Installation Requirements for Customer Cabling applies to fixed or concealed customer-cabling installation
- Manufacturer-listed international standards: ISO/IEC 11801 Ed. 2.2 Class E, IEC 61156-5:2009 Category 6 and ANSI/TIA-568-C.2 Category 6
Environmental Benefits
- Bare copper conductors can be recovered and recycled at end of service life
- Solid-core construction and a durable PVC jacket support long service life, reducing replacement frequency and material waste
Warranty Information
Two-year standalone warranty. Warranty may extend to 25 years when the cable forms part of a certified structured cabling system and the applicable Serveredge warranty conditions are met.
Available Now
Available through Serveredge and authorised Australian electrical, data-cabling and telecommunications distributors.
