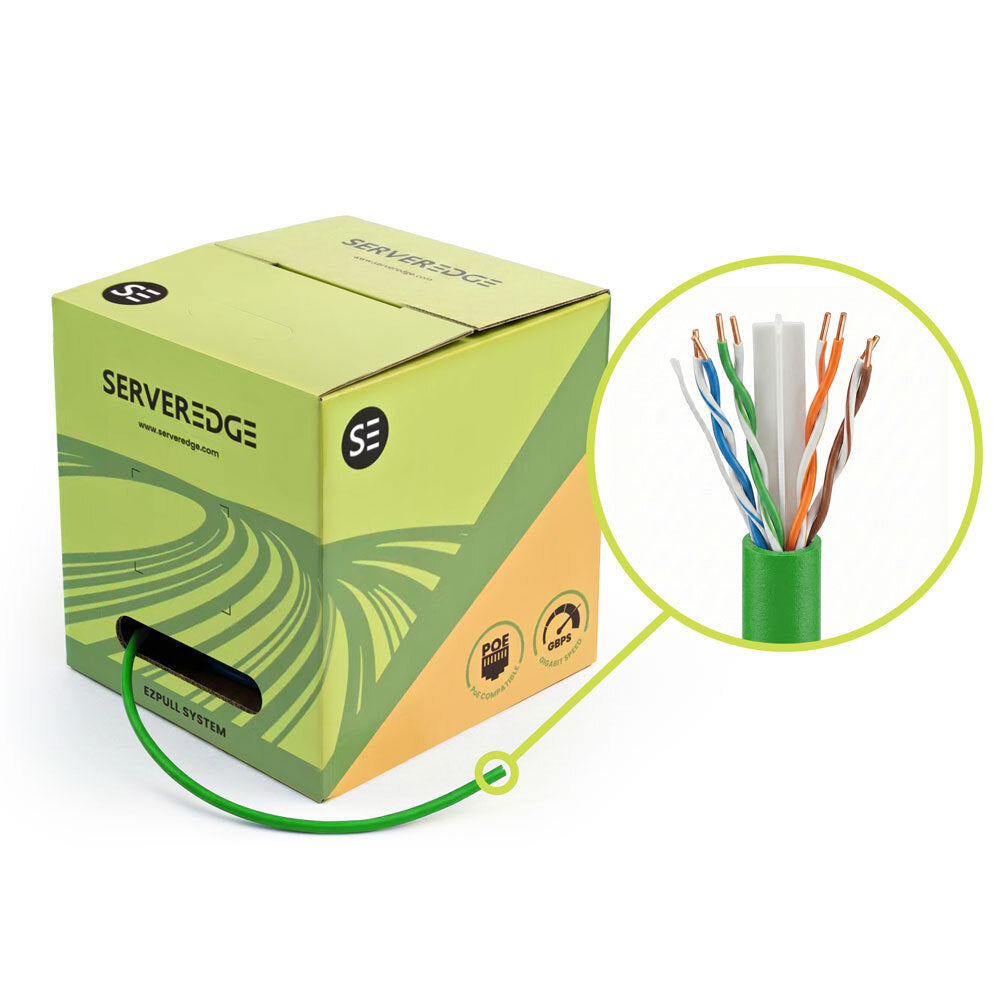

Cat6 Cable 305m UTP Solid Green Serveredge
Serveredge Cat6 cable features UTP solid 24AWG conductors, a green PVC jacket and a 305m box. Ideal for structured cabling and permanent links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Cat6 Ethernet Cable, Cat6 Bulk Cable, Cat6 Data Cable, C6UTSLE305-GN
Technical Specifications
- Cable Category: Cat6
- Cable Type: U/UTP, unshielded twisted pair
- Cable Length: 305 m ±1.5 m
- Conductor: Solid bare copper, 24AWG, 0.515 ±0.01 mm
- Cable Construction: 4 solid copper twisted pairs
- Jacket Material: Flame-retardant PVC
- Cable Diameter: 5.5 ±0.5 mm
- Insulation Material: High-density polyethylene
- Insulation Thickness: 0.20 mm
- Pair Separator: Central nylon spine
- Rip Cord: Nylon rip cord under jacket
- Maximum Application: 1000BASE-T
- Frequency Performance: Up to 250 MHz
- Flammability: IEC 60332-1
- Environmental Compliance: RoHS compliant
- Packaging: Reel-in-a-box carton
- Standards: ISO/IEC 11801 Ed. 2.2 Class E; IEC 61156-5:2009; ANSI/TIA-568-C.2
- Dimensions (H x L x W): 215mm x 390mm x 390mm
- Weight: 8 kg
Key Features
- Solid 24AWG bare copper conductors
- Unshielded four-pair Cat6 construction
- Green FR PVC jacket for cable identification and colour coding
- Sequential measurement markings on the jacket
- Central spine helps maintain pair separation and performance
- Suitable for permanent links and structured cabling systems
- Supports applications up to 1000BASE-T Gigabit Ethernet
- 305m reel-in-a-box format for installation work
Professional Installation Requirements
- Fixed or concealed telecommunications cabling should be installed, terminated and tested by an appropriately registered Australian cabler in accordance with applicable ACMA requirements and AS/CA S009 installation rules.
Applications
- Structured voice and data cabling
- Permanent-link Ethernet installations
- Commercial and residential network infrastructure
- Server rooms, communications rooms and patch-panel connections
- Gigabit Ethernet networks up to 1000BASE-T
Standards & Compliance
- AS/CA S008:2020 Requirements for customer cabling products, including Amendment 1:2025 where applicable
- AS/CA S009:2020 Installation requirements for customer cabling when installed as fixed or concealed telecommunications cabling
- AS/NZS 3080 performance requirements may apply to the completed balanced structured cabling system
Environmental Benefits
- RoHS-compliant construction helps restrict specified hazardous substances
- Solid copper conductors and PVC insulation are suitable for material recovery at end of service life
- Durable permanent-link construction can reduce replacement frequency and installation waste
- Supports reliable Gigabit Ethernet infrastructure, helping avoid premature cabling upgrades
Warranty Information
Two-year standalone warranty. Warranty may extend to 25 years when installed as part of a certified structured cabling system, subject to Serveredge warranty terms and certification requirements.
Available Now
Available through Serveredge and authorised Australian distributors; confirm current stock before ordering.
