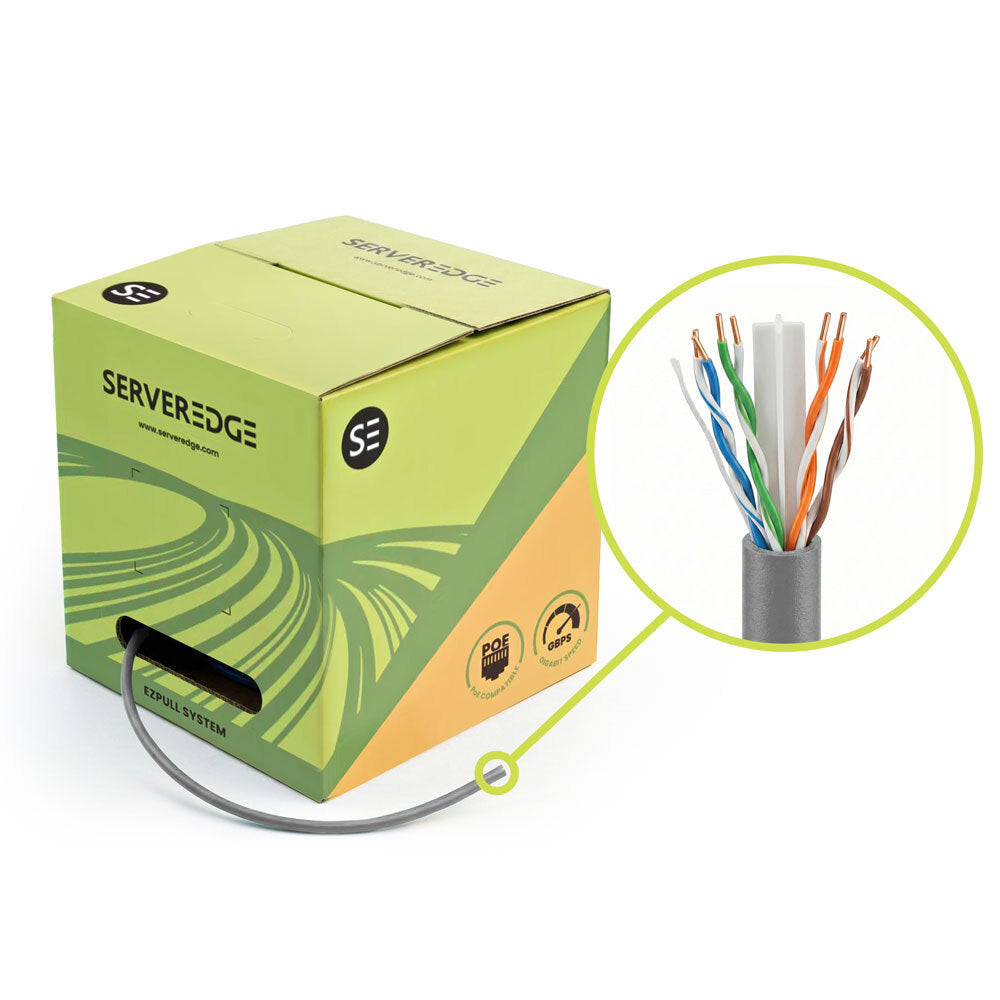

Cat6 Cable 305m UTP Solid Grey Serveredge
Serveredge Cat6 cable features UTP solid 24AWG conductors, a grey PVC jacket and a 305m box. Ideal for structured cabling and permanent links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Cat6 Ethernet Cable, Category 6 Bulk Network Cable, U/UTP Solid-Core Data Cable, C6UTSLE305-GY
Technical Specifications
- Cable Category: Category 6
- Cable Type: U/UTP, unshielded twisted pair
- Cable Length: 305m ±1.5m
- Conductor: Solid bare copper, 24AWG, 0.515mm nominal diameter
- Number of Pairs: 4 solid copper twisted pairs
- Jacket Material: Flame-retardant PVC
- Jacket Colour: Grey
- Overall Cable Diameter: 5.5mm ±0.5mm
- Insulation Material: High-density polyethylene
- Insulation Thickness: 0.20mm
- Rip Cord: Nylon rip cord under jacket
- Central Filler: Nylon central spine
- Maximum Application: Up to 1000BASE-T
- Operating Frequency: Up to 250MHz Category 6 performance
- Packaging: Reel-in-a-box carton
- Flammability: IEC 60332-1
- Environmental Compliance: RoHS compliant
- Standards Referenced: ISO/IEC 11801 Ed. 2.2 Class E; IEC 61156-5:2009; ANSI/TIA-568-C.2
- Dimensions (H x L x W): 215mm x 390mm x 390mm
- Weight: 11.0 kg
Key Features
- 305m bulk cable supplied in a reel-in-a-box
- Solid 24AWG bare copper conductors for permanent-link installations
- Unshielded four-pair construction for structured data cabling
- Grey FR PVC outer jacket with sequential measurement markings
- Nylon central spine and rip cord for cable management and preparation
- Supports Gigabit Ethernet applications up to 1000BASE-T
- Designed to reduce impedance, structural return loss and near-end crosstalk
- Suitable for Category 6 and lower-rated network systems
Professional Installation Requirements
- Fixed or concealed telecommunications cabling should be installed, terminated and tested by an appropriately registered Australian cabler in accordance with AS/CA S009 and the applicable customer cabling requirements. Maintain Category 6 installation practices, including bend-radius, separation and termination requirements.
Applications
- Structured cabling installations
- Permanent links between patch panels and telecommunications outlets
- Commercial and residential Ethernet networks
- Server rooms, data cabinets and communications racks
- Gigabit Ethernet infrastructure up to 1000BASE-T
- Voice, data and other Category 6-compatible applications
Standards & Compliance
- AS/CA S008:2020 Requirements for customer cabling products, including Amendment No. 1:2025, is applicable to customer-side telecommunications cabling products
- AS/CA S009:2020 Installation requirements for customer cabling applies to fixed or concealed customer cabling installation
Environmental Benefits
- Solid bare copper conductors are recyclable at end of service life
- RoHS compliance helps restrict specified hazardous substances in the cable construction
- Durable PVC-jacketed construction can support a long service life and reduce replacement waste
- Supplied as bulk cable for permanent installations, reducing the need for multiple shorter packaged leads
Warranty Information
2-year standalone warranty. Warranty may be extended to 25 years when used as part of a certified structured cabling system, subject to Serveredge warranty terms and completion of the required certification.
Available Now
Available through Serveredge and authorised Australian distributors; local stock and lead times should be confirmed with the distributor.
