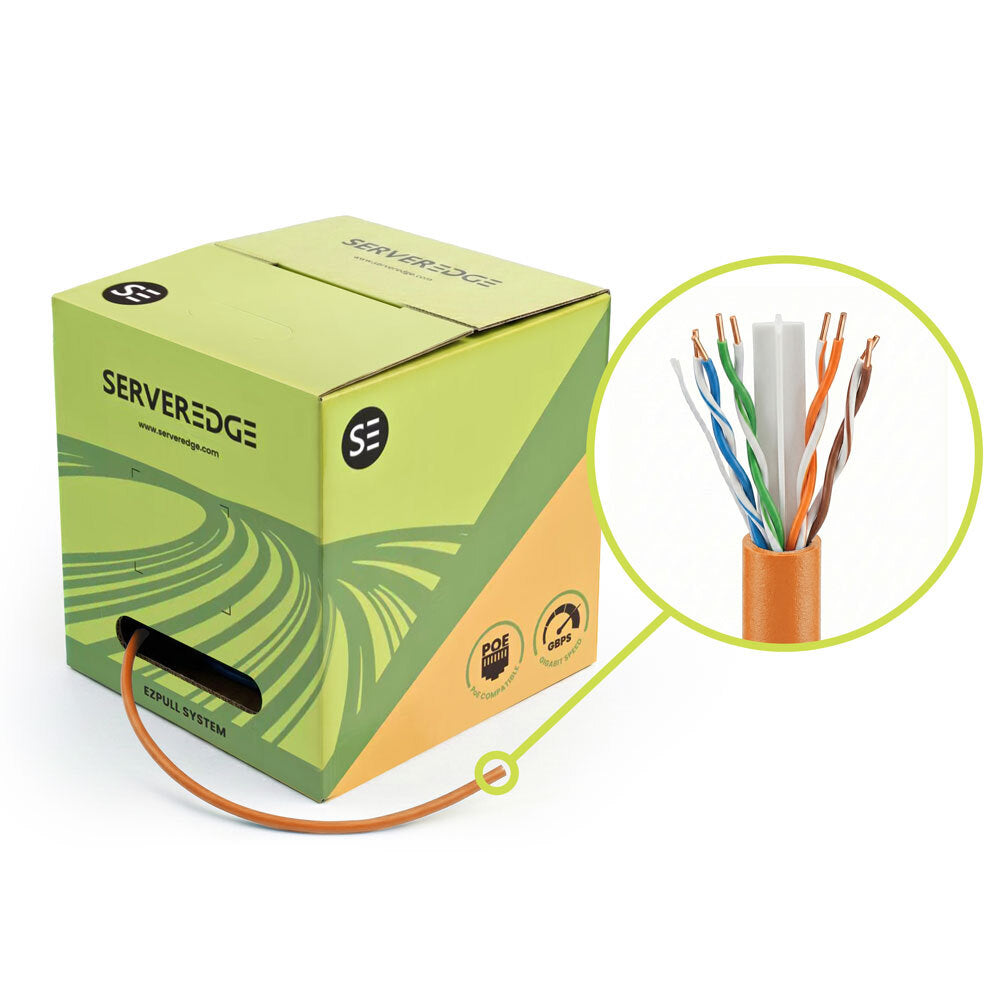

Cat6 Cable 305m UTP Solid Orange Serveredge
Serveredge Cat6 cable features UTP solid 24AWG conductors, a orange PVC jacket and a 305m box. Ideal for structured cabling and permanent links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Cat6 bulk cable, Category 6 UTP cable, solid-core Ethernet cable, structured cabling cable
Technical Specifications
- Cable Category: Category 6
- Cable Type: Unshielded twisted pair (UTP), solid core
- Cable Length: 305 m
- Conductor Size: 24 AWG
- Conductor Material: Soft annealed bare copper
- Cable Construction: 4 solid copper twisted pairs
- Jacket Material: Flame-retardant PVC
- Jacket Diameter: 5.5 mm ±0.5 mm
- Insulation Material: High-density polyethylene
- Insulation Thickness: 0.20 mm
- Pair Separator: Integrated pair divider
- Rip Cord: Included under sheath
- Cable Colour: Orange
- Operating Support: Up to 1000BASE-T applications
- Packaging: Reel in box carton
- Jacket Marking: Sequential measurement markings
- Performance Standards: ISO/IEC 11801 Ed. 2.2 Class E; IEC 61156-5:2009; ANSI/TIA-568-C.2
- Dimensions (H x L x W): 400mm x 400mm x 220mm
- Weight: 13.5 kg
Key Features
- 305 m bulk cable length for permanent-link installations
- Solid 24 AWG bare copper conductors
- Unshielded four-pair construction for structured data cabling
- Orange PVC jacket for cable identification and colour coding
- Integrated pair divider helps maintain pair geometry and crosstalk performance
- Supports Category 6 network applications up to Gigabit Ethernet
- Sequential markings assist cable measurement during installation
- Supplied in a practical reel-in-box carton
Professional Installation Requirements
- Installation of fixed customer telecommunications cabling should be performed by an appropriately registered Australian cabler where required by Australian telecommunications cabling regulations. Install and terminate in accordance with the applicable structured cabling standards and manufacturer requirements.
Applications
- Commercial and residential structured cabling
- Permanent links between patch panels and telecommunications outlets
- Data, voice and video network infrastructure
- Gigabit Ethernet network installations
- Server rooms, communications rooms and building risers
- Internal wall, ceiling and cable-tray installations
Standards & Compliance
- AS/NZS 3080:2013 is applicable to integrated telecommunications cabling systems for commercial premises.
- AS/CA S008:2025 is the applicable Australian technical standard for customer cabling products where the cable is supplied for customer cabling use.
- The manufacturer additionally specifies ISO/IEC 11801 Ed. 2.2, IEC 61156-5:2009 and ANSI/TIA-568-C.2 compliance; specific AS/NZS certification for this SKU is not stated.
Environmental Benefits
- Solid copper conductors can be recovered and recycled at end of service life.
- Durable permanent-installation construction can reduce replacement frequency and material waste.
- Supports reliable, energy-efficient Ethernet infrastructure by enabling high-performance data transmission.
- PVC and polyethylene materials should be separated and processed through appropriate cable-recycling channels where available.
Warranty Information
Two-year standalone manufacturer warranty. Coverage may extend to 25 years when the cable forms part of a certified structured cabling system, subject to Serveredge warranty terms and project certification requirements.
Available Now
Available through Serveredge and authorised Australian electrical, data-cabling and telecommunications distributors; confirm current stock and lead time with the distributor.
