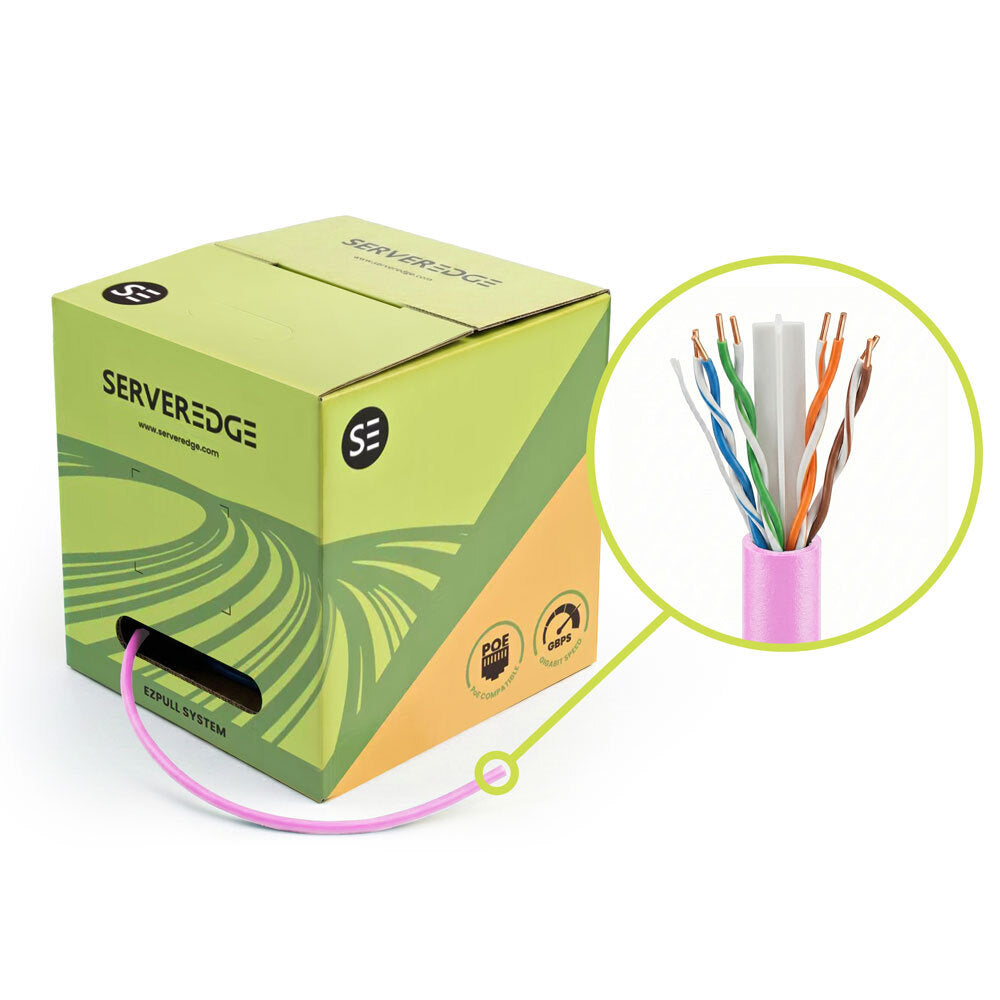

Cat6 Cable 305m UTP Solid Pink Serveredge
Serveredge Cat6 cable features UTP solid 24AWG conductors, a pink PVC jacket and a 305m box. Ideal for structured cabling and permanent links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Cat6 Bulk Network Cable, Cat6 Installation Cable, Category 6 UTP Cable, Solid-Core Ethernet Cable
Technical Specifications
- Cable Category: Category 6
- Cable Type: UTP, unshielded twisted pair
- Cable Length: 305m
- Conductor Gauge: 24AWG
- Conductor Material: Soft annealed bare copper
- Cable Construction: 4 solid copper twisted pairs
- Jacket Material: Flame-retardant PVC
- Overall Cable Diameter: 5.5mm ±0.5mm
- Insulation Material: High-density polyethylene
- Insulation Thickness: 0.20mm
- Pair Separator: Integrated separator
- Rip Cord: Included beneath sheath
- Pair Lay Length: ≤38mm
- Supported Application: Up to 1000BASE-T
- Jacket Colour: Pink
- Packaging: Reel-in-box carton
- Manufacturer Standards: ISO/IEC 11801 Ed. 2.2 Class E; IEC 61156-5:2009; ANSI/TIA-568-C.2
- Dimensions (H x L x W): 380mm x 380mm x 210mm
- Weight: 11.7 kg
Key Features
- 305m bulk cable suitable for permanent structured-cabling links
- Solid 24AWG bare copper conductors
- Unshielded four-pair construction for standard indoor network installations
- Integrated pair separator helps maintain pair geometry and reduce crosstalk
- Sequential measurement markings assist cable-length management
- Pink jacket supports colour-coded network identification
- Reel-in-box packaging allows controlled cable dispensing
- Supports Gigabit Ethernet applications up to 1000BASE-T
Professional Installation Requirements
- For fixed or concealed telecommunications cabling, installation should be completed by an appropriately registered cabler in accordance with AS/CA S009:2020 and applicable ACMA requirements. Terminate with compatible Category 6 components and test the completed link.
Applications
- Structured data cabling
- Permanent Ethernet links
- Patch panels and telecommunications racks
- Office, commercial and residential network installations
- Voice, data and Gigabit Ethernet infrastructure
Standards & Compliance
- AS/CA S008:2020 is the applicable Australian standard for customer cabling products; verify product labelling and supplier compliance before installation
- AS/CA S009:2020 applies to installation of fixed or concealed customer cabling
- AS/NZS 3080 is relevant to the performance and design of balanced structured cabling systems
Environmental Benefits
- Solid bare copper conductors are recyclable at end of service life
- Long 305m bulk length reduces the packaging and material use associated with multiple shorter cable runs
- Durable PVC and solid-core construction can support extended service life and reduce replacement waste
Warranty Information
2-year standalone manufacturer’s warranty. The warranty may extend to 25 years when the cable forms part of a certified structured cabling system, subject to Serveredge warranty terms and project certification requirements.
Available Now
Available through Serveredge and authorised Australian distributors, subject to current stock levels.
