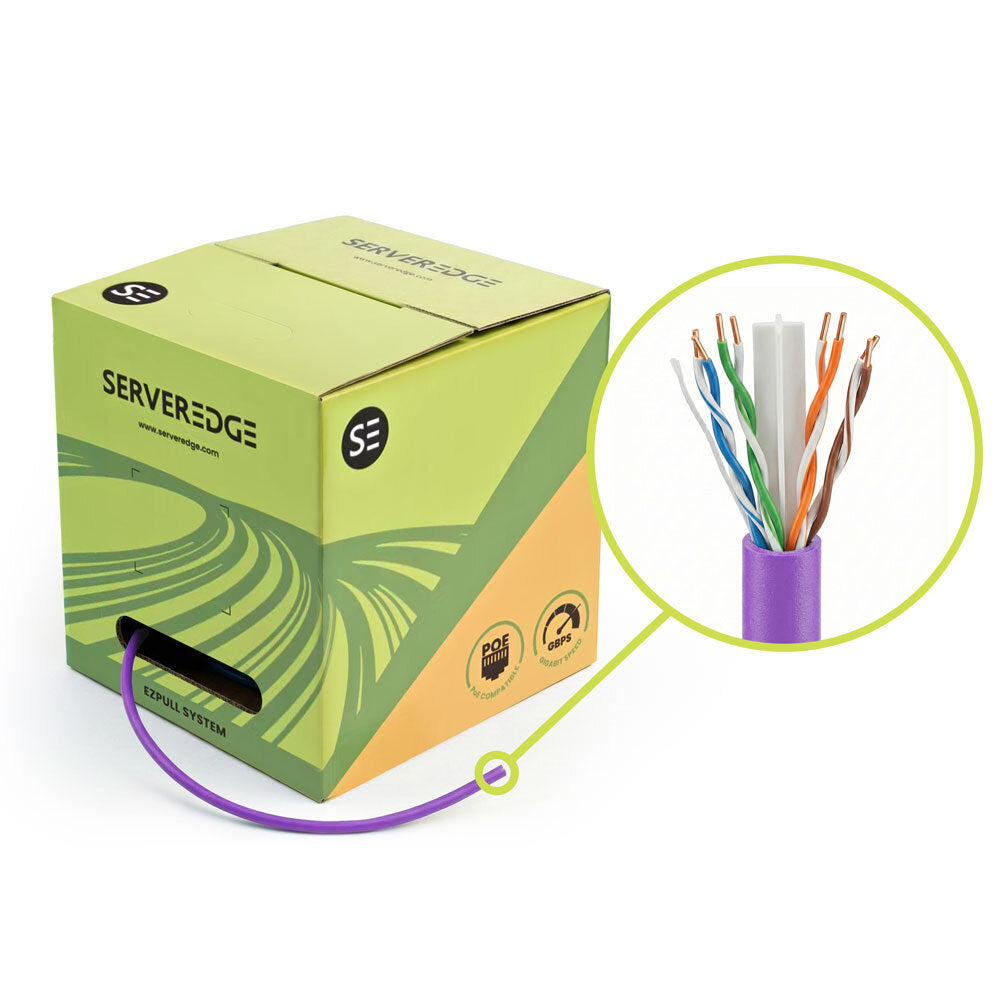

Cat6 Cable 305m UTP Solid Purple Serveredge
Serveredge Cat6 cable features UTP solid 24AWG conductors, a purple PVC jacket and a 305m box. Ideal for structured cabling and permanent links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Serveredge C6UTSLE305-PU, Cat6 Bulk Cable, Cat6 Ethernet Cable, Cat6 Structured Cabling Cable, U/UTP Cat6 Cable
Technical Specifications
- Cable Length: 305m ±1.5m
- Cable Category: Cat6
- Shielding: U/UTP, unshielded twisted pair
- Conductor Size: 24AWG, 0.515mm nominal diameter
- Conductor Material: Solid bare copper
- Cable Construction: 4 solid copper twisted pairs
- Pair Separator: Central nylon spine
- Insulation Material: High-density polyethylene
- Insulation Thickness: 0.20mm
- Jacket Material: Flame-retardant PVC
- Jacket Colour: Purple
- Jacket Diameter: 5.5mm ±0.5mm
- Rip Cord: Nylon rip cord under jacket
- Frequency Performance: Up to 250MHz
- Network Support: Up to 1000BASE-T
- Flammability: IEC 60332-1
- Packaging: Reel-in-a-box carton, 390 x 390 x 215mm
- Standards Stated by Manufacturer: ISO/IEC 11801 Ed. 2.2 Class E, IEC 61156-5:2009, ANSI/TIA-568-C.2
- Dimensions (H x L x W): 215mm x 390mm x 390mm
- Weight: 10.5 kg
Key Features
- 305m bulk cable for permanent structured-cabling links
- Solid 24AWG bare copper conductors
- Unshielded twisted-pair construction with four colour-coded pairs
- Purple PVC jacket for cable identification and colour coding
- Central pair separator helps maintain pair geometry and performance
- Sequential measurement markings on the jacket
- Supports applications designed for Cat6 or lower-rated systems
- Suitable for Gigabit Ethernet and 1000BASE-T networks
- Supplied in a reel-in-a-box carton for controlled cable dispensing
- RoHS-compliant cable construction
Professional Installation Requirements
- Fixed or concealed customer cabling should be installed, terminated and tested by an appropriately registered Australian cabler in accordance with applicable ACMA requirements and AS/CA S009. Maintain separation from mains wiring and follow the manufacturer's bend-radius and installation guidance.
Applications
- Commercial structured cabling installations
- Data and telecommunications infrastructure
- Server rooms and network cabinets
- Permanent Ethernet links to patch panels and data outlets
- Gigabit Ethernet networks
- Voice, data and video distribution systems
Standards & Compliance
- AS/CA S008:2020 – applicable requirements for customer cabling products in Australia; verify product labelling and compliance documentation before installation
- AS/CA S009:2020 – applicable installation requirements for fixed or concealed customer cabling
Environmental Benefits
- Solid copper conductors and PVC components can be separated and recovered through appropriate cable recycling streams
- RoHS-compliant construction restricts specified hazardous substances
- Durable permanent-link construction can reduce replacement frequency and installation waste
- Supports reliable network infrastructure and efficient Gigabit Ethernet data transmission
Warranty Information
Two-year standalone warranty from the shipment date. The warranty may extend to 25 years when used as part of a certified structured cabling system, subject to Serveredge product warranty certification and applicable terms and conditions.
Available Now
Available through Serveredge and authorised Australian electrical, data-cabling and technology distributors; confirm current stock before ordering.
