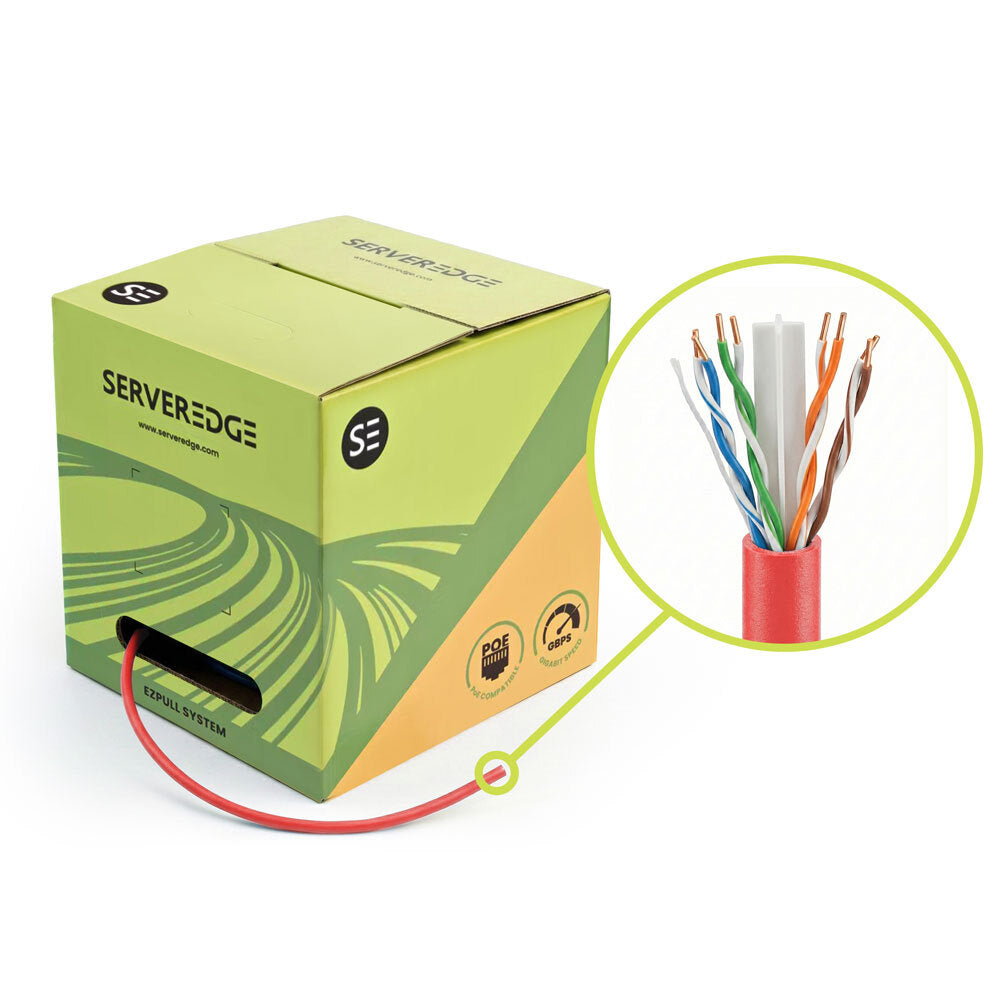

Cat6 Cable 305m UTP Solid Red Serveredge
Serveredge Cat6 cable features UTP solid 24AWG conductors, a red PVC jacket and a 305m box. Ideal for structured cabling and permanent links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Cat6 Bulk Cable, Cat6 Structured Cabling Cable, Cat6 U/UTP Installation Cable, Solid-Core Ethernet Cable
Technical Specifications
- Cable Category: Category 6
- Cable Type: U/UTP, unshielded twisted pair
- Cable Length: 305m
- Conductor: Solid soft-annealed bare copper
- Conductor Size: 24AWG
- Cable Construction: 4 solid copper twisted pairs, 8 conductors
- Jacket Material: FR PVC
- Jacket Colour: Red
- Cable Outer Diameter: 5.5mm ±0.5mm
- Insulation Material: High-density polyethylene
- Insulation Thickness: 0.20mm
- Rip Cord: Included beneath the jacket
- Pair Lay Length: ≤38mm
- Transmission Support: Up to 1000BASE-T applications
- Packaging: Reel supplied in a box carton
- Manufacturer Standards: ISO/IEC 11801 Ed. 2.2 Class E; IEC 61156-5:2009 Category 6; ANSI/TIA-568-C.2 Category 6
- Dimensions (H x L x W): 400mm x 400mm x 290mm
- Weight: 11 kg
Key Features
- 305m bulk cable for permanent-link and structured-cabling installations
- Unshielded twisted-pair construction for standard Ethernet network infrastructure
- Solid bare copper conductors provide reliable termination and signal performance
- 24AWG conductors suitable for fixed installation cabling
- FR PVC jacket with sequential measurement markings
- Integrated rip cord assists jacket removal during termination
- Supports Category 6 network applications up to 1000BASE-T
- Red jacket provides visual cable identification
Professional Installation Requirements
- Permanent telecommunications cabling should be installed, terminated and tested by a registered cabler or suitably qualified network technician in accordance with applicable Australian cabling requirements, including AS/CA S009.
Applications
- Structured cabling in residential, commercial and industrial buildings
- Permanent network links between patch panels and data outlets
- Ethernet infrastructure for switches, routers, servers and access points
- Voice, data and video distribution systems
- Office, data-centre and communications-room installations
Standards & Compliance
- AS/NZS 3080:2013 – Telecommunications installations, generic cabling for customer premises; applicability should be confirmed for the complete installed cabling system
- AS/CA S008:2020 – applicable Australian customer cabling product requirements; confirm product labelling and registration before installation
Environmental Benefits
- Solid copper conductors are recyclable at end of service life
- Durable construction supports extended service life and can reduce replacement waste
- Supports high-speed network infrastructure, helping connected equipment operate efficiently
- PVC and copper components may be recoverable through appropriate cable recycling programmes
Warranty Information
Two-year standalone warranty against defects, or 25 years when installed as part of a certified structured cabling system and covered by the required Serveredge warranty certification. Subject to Serveredge warranty terms and conditions.
Available Now
Available through Serveredge and authorised Australian distributors; confirm current stock status before ordering.
