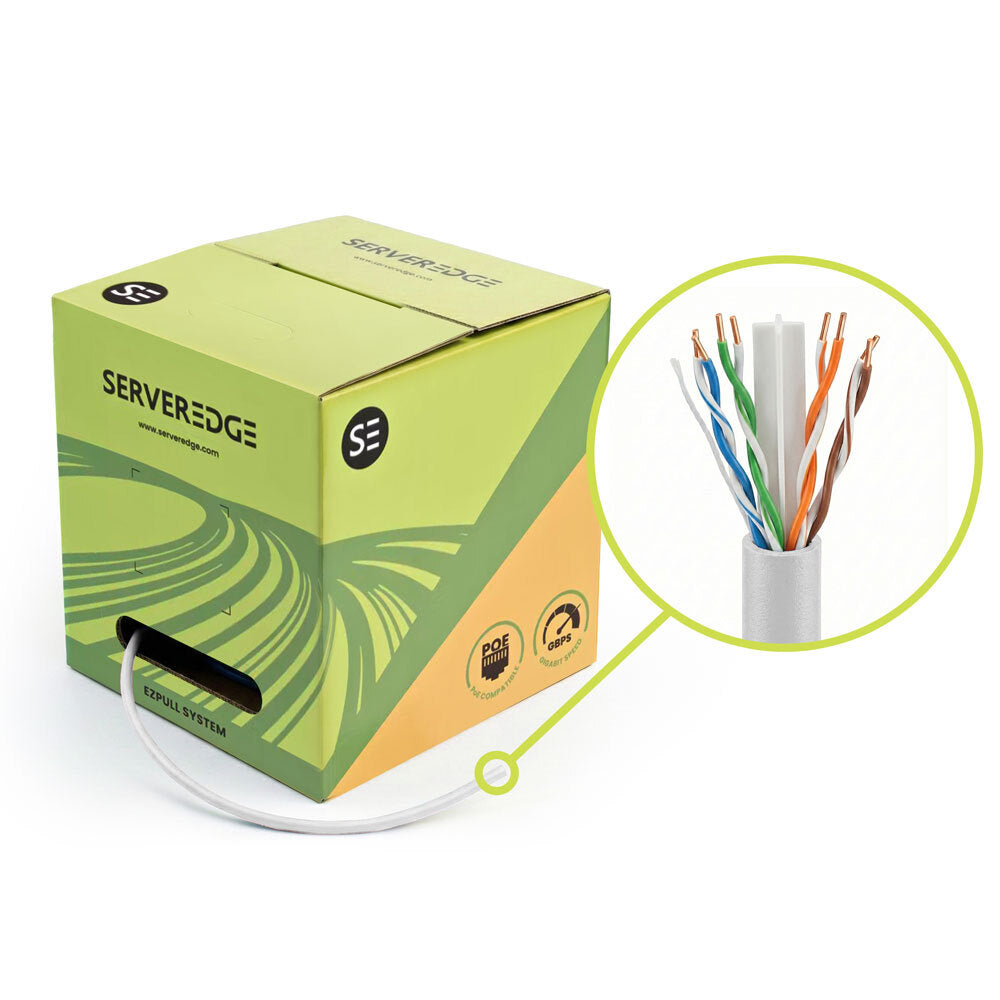

Cat6 Cable 305m UTP Solid White Serveredge
Serveredge Cat6 cable features UTP solid 24AWG conductors, a white PVC jacket and a 305m box. Ideal for structured cabling and permanent links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Cat6 bulk cable, Category 6 network cable, U/UTP data cable, solid-core Ethernet cable
Technical Specifications
- Cable Category: Category 6
- Cable Length: 305m ±1.5m
- Cable Type: U/UTP solid twisted pair
- Conductor: Solid bare copper, 24AWG, 0.515mm nominal diameter
- Number of Pairs: 4 twisted pairs
- Jacket Material: Flame-retardant PVC
- Cable Diameter: 5.5mm ±0.5mm
- Insulation Material: High-density polyethylene
- Central Filler: Nylon spine
- Rip Cord: Nylon, located under the jacket
- Frequency Performance: Tested to 250MHz Cat6 permanent-link performance
- Network Performance: Supports up to 1000BASE-T applications
- Applicable International Specifications: ISO/IEC 11801 Ed. 2.2 Class E; IEC 61156-5:2009 Category 6; ANSI/TIA-568-C.2 Category 6
- Flammability: IEC 60332-1 compliant
- Electrical Performance: Conductor resistance ≤9.38Ω/100m; insulation resistance ≥5000MΩkm
- Packaging: Reel-in-a-box
- Dimensions (H x L x W): 215mm x 390mm x 390mm
- Weight: 11 kg
Key Features
- Solid 24AWG bare copper conductors for permanent structured-cabling installations
- Unshielded twisted-pair construction with four colour-coded pairs
- Integrated nylon spine helps maintain pair geometry and reduce crosstalk
- FR PVC jacket with sequential cable measurement markings
- White jacket simplifies cable identification and colour-coded network installations
- 305m reel-in-box format for efficient cable deployment
- Suitable for Category 6 voice, data and video distribution systems
Professional Installation Requirements
- Fixed or concealed telecommunications cabling should be installed and tested by an appropriately qualified Australian cabler in accordance with applicable ACMA requirements and AS/CA S009 installation rules. Terminate using compatible Category 6 components and maintain the required separation from mains wiring.
Applications
- Permanent links in structured cabling systems
- Commercial and residential Ethernet installations
- Office, education, healthcare and retail network cabling
- Data rooms, communications cabinets and patch-panel installations
- Gigabit Ethernet networks, including 1000BASE-T applications
Standards & Compliance
- AS/CA S008:2020 — applicable Australian standard for customer cabling products; the manufacturer’s product information does not expressly state AS/CA S008 compliance, so project-specific verification is recommended.
- AS/CA S009:2020 — applicable installation requirements for customer cabling when installed as fixed or concealed telecommunications cabling.
Environmental Benefits
- RoHS requirement stated in the manufacturer’s technical data sheet, supporting restriction of hazardous substances.
- Solid copper conductors and durable PVC construction support a long service life and can reduce replacement waste.
- Copper and PVC components may be recoverable through appropriate cable recycling streams at end of life.
Warranty Information
2-year standalone warranty against defects. The warranty may extend to 25 years when the cable forms part of a certified structured cabling system and the required Serveredge warranty certification is completed. Subject to Serveredge warranty terms and conditions. ([serveredge.com](https://www.serveredge.com/products/serverdge-305m-24awg-white-pvc-solid-cat6-network-cable-utp-4-pair))
Available Now
Available through Serveredge and authorised Australian electrical, data-cabling and communications distributors; live stock availability should be confirmed before ordering.
