Trade Discount 25%

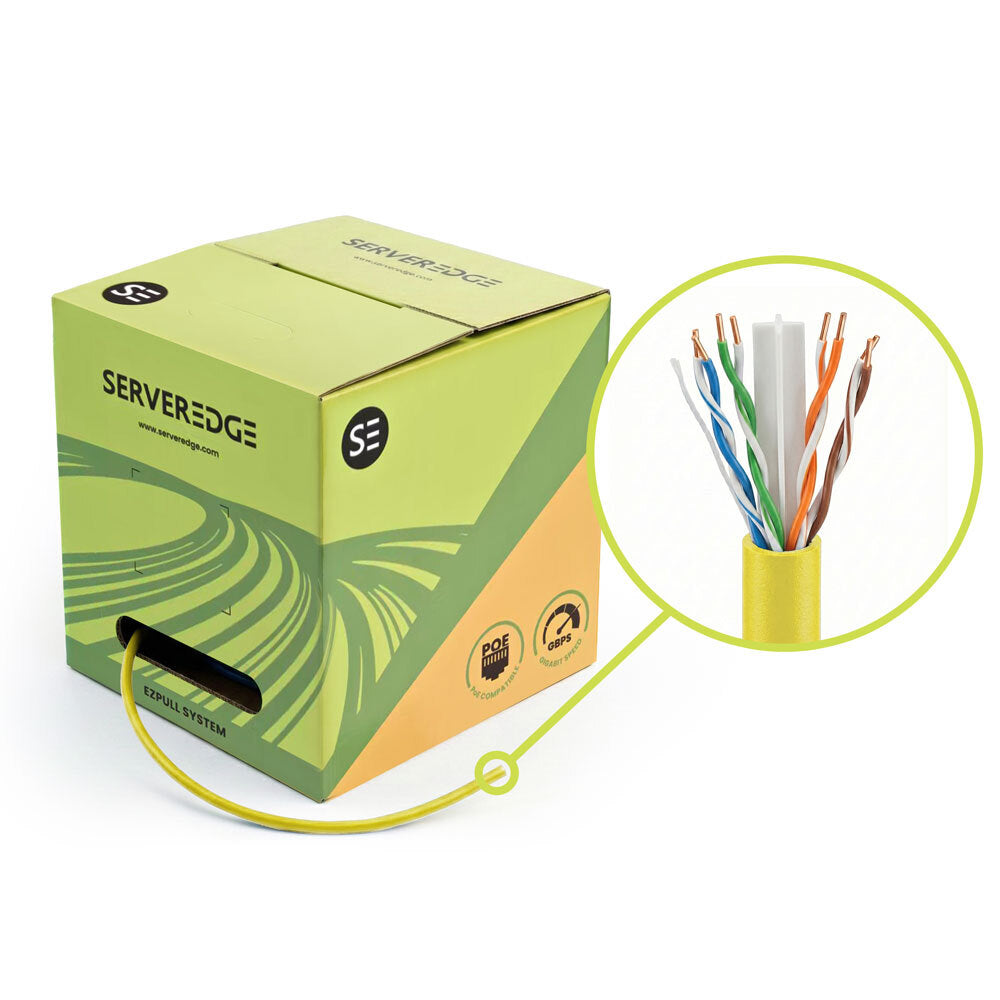

Cat6 Cable 305m UTP Solid Yellow Serveredge
Serveredge Cat6 cable features UTP solid 24AWG conductors, a yellow PVC jacket and a 305m box. Ideal for structured cabling and permanent links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Cat6 Bulk Cable, Cat6 Structured Cabling Cable, Cat6 U/UTP Cable, 305 m Cat6 Cable Roll
Technical Specifications
- Cable Category: Category 6
- Cable Type: U/UTP, unshielded twisted pair
- Length: 305 m
- Conductor Size: 24 AWG
- Conductor Material: Soft annealed bare copper
- Conductor Construction: 4 solid copper twisted pairs
- Outer Sheath: FR PVC
- Sheath Colour: Yellow
- Cable Diameter: 5.5 mm ±0.5 mm
- Insulation Material: High-density polyethylene
- Insulation Thickness: 0.20 mm
- Rip Cord: Included beneath sheath
- Maximum Application: Up to 1000BASE-T
- Pair Lay Length: ≤38 mm
- Performance References: ISO/IEC 11801 Ed. 2.2 Class E, IEC 61156-5:2009 and ANSI/TIA-568-C.2 Category 6
- Dimensions (H x L x W): 220mm x 360mm x 360mm
- Weight: 10.5 kg
Key Features
- Solid bare copper conductors for permanent structured cabling links
- Unshielded four-pair construction with integrated pair divider
- Sequential measurement markings on the cable jacket
- 305 m reel-in-box packaging for installation convenience
- Yellow jacket supports cable identification and colour coding
- Designed for Category 6 network applications up to 1000BASE-T
- Suitable for voice, data and video distribution systems
Professional Installation Requirements
- Installation of fixed or concealed customer telecommunications cabling should be performed by an appropriately registered cabler in accordance with applicable Australian cabling rules and manufacturer requirements.
Applications
- Commercial and residential structured cabling
- Server rooms and data centres
- Permanent links between patch panels and network outlets
- Ethernet, voice and data distribution
- Network infrastructure colour coding and identification
Standards & Compliance
- AS/CA S008:2020 Requirements for customer cabling products, including applicable amendments and current ACMA requirements
- AS/CA S009:2020 Installation requirements for customer cabling, where the cable is installed as fixed or concealed customer cabling
- AS/NZS 3080 performance requirements for balanced structured cabling systems, where applicable to the completed installation
Environmental Benefits
- Bare copper conductors can be recovered and recycled at end of service life
- Solid-copper construction supports long-term installation and reduces replacement waste
- PVC and polyethylene materials should be managed through appropriate cable recycling or disposal channels
- Supports reliable network infrastructure that can reduce premature cable replacement
Warranty Information
Two-year standalone warranty from the product shipment date. Warranty may extend to 25 years when installed as part of a certified Serveredge structured cabling system and the required product warranty certification is completed.
Available Now
Available through Serveredge and authorised Australian distributors, subject to current distributor stock.
