Trade Discount 25%

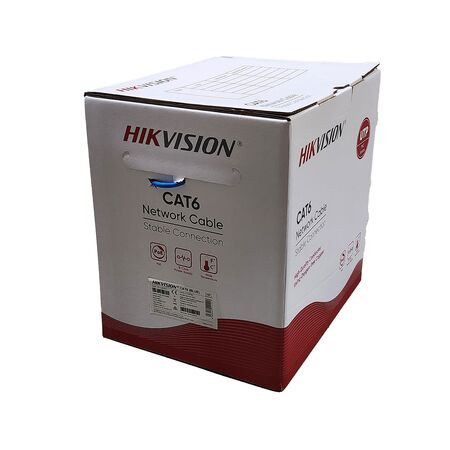

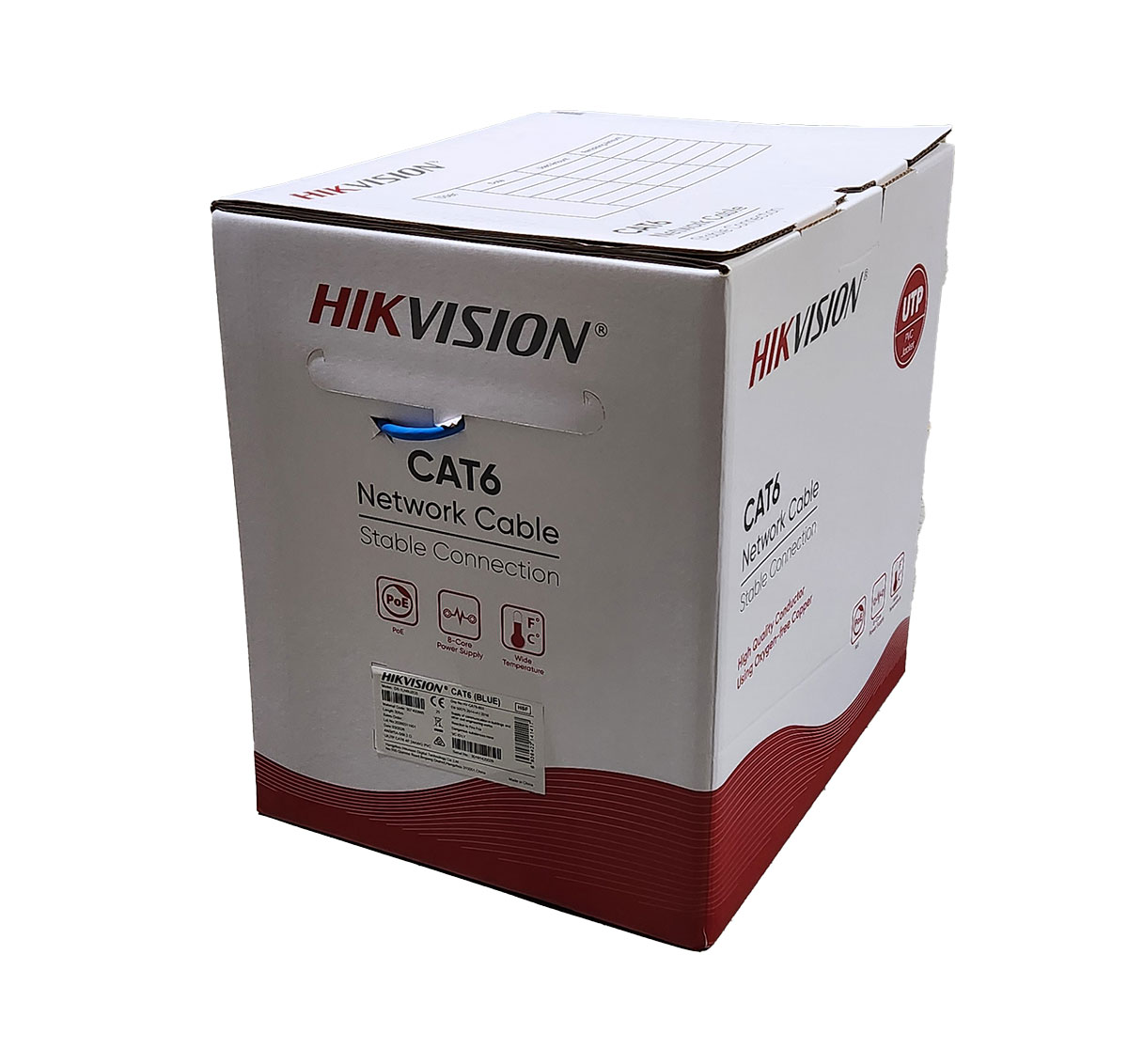

CAT6 Cable Blue 305m Box DS-1LN6UZC0 Hikvision
Hikvision CAT6 cable features 305m box length in blue. Ideal for network cabling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1LN6UZC0 CAT6 Cable, CAT6 Solid Copper Cable, Blue Ethernet Cable, Indoor Structured Cabling Cable
Technical Specifications
- Category: Cat 6
- Cable Structure: U/UTP
- Conductor Material: Solid bare copper
- Conductor Size: 0.50 ± 0.01 mm, 24 AWG
- Insulation Diameter: 0.88 ± 0.05 mm
- Sheath Material: PVC
- Sheath Colour: Blue
- Fire Resistance: CPR Fca
- Usage: Indoor
- Cable Length: 305 ± 1.5 m
- Internal Construction: Rip cord and separator
- International Standards: ANSI/TIA-568.2-D, IEC 61156 and ISO/IEC 11801
- Environmental Compliance: RoHS 2.0
- Dimensions (H x L x W): 210mm x 390mm x 390mm
- Weight: 9.9 kg
Key Features
- 305-metre pull box for large structured cabling installations
- Solid bare copper conductors provide reliable signal transmission and PoE performance
- Unshielded twisted-pair construction for standard indoor network cabling
- Blue PVC outer sheath for cable identification
- Suitable for CCTV, Ethernet, data, voice, access control and wireless access-point cabling
- Rip cord and separator simplify cable preparation and installation
- Fluke-tested performance stated by the manufacturer for permanent-link and channel applications
Professional Installation Requirements
- Fixed or concealed telecommunications cabling should be installed and terminated by an appropriately registered Australian cabler in accordance with AS/CA S009:2020 and the manufacturer's installation instructions.
Applications
- Indoor structured data cabling
- IP CCTV camera and NVR installations
- Power over Ethernet network devices
- Wireless access points
- Ethernet, voice and general communications networks
- Access control and security system cabling
Standards & Compliance
- AS/CA S008:2020 — applicable Australian requirements for customer cabling products
- AS/CA S009:2020 — applicable Australian installation requirements for customer cabling
Environmental Benefits
- Solid copper conductors are recyclable at end of service life
- RoHS 2.0 compliance restricts specified hazardous substances
- Durable construction can reduce replacement frequency and material waste
- Supports combined data and power delivery over PoE, reducing the need for separate power cabling in suitable installations
Warranty Information
Hikvision warranty policy documentation identifies data cable consumables as covered for 12 months from shipment, subject to the applicable purchase agreement and Hikvision Australia warranty terms.
Available Now
Available through Hikvision and authorised Australian distributors, subject to current distributor stock.
