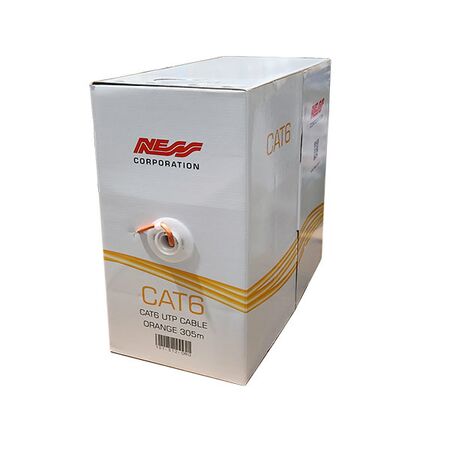

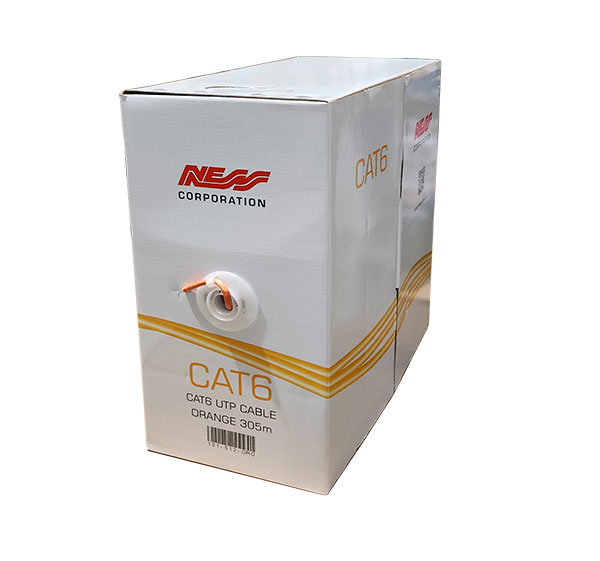

CAT6 Ethernet Cable 305m Orange Ness
Ness CAT6 Ethernet cable features a 305m length in an easy pull box and an orange sheath. Ideal for data and security network cabling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness CAT6 Data Cable, Ness Category 6 Network Cable, Ness CAT6 U/UTP Cable
Technical Specifications
- Cable Category: CAT6
- Cable Type: U/UTP, four twisted pairs
- Cable Length: 305m nominal
- Conductor Material: Solid bare copper
- Conductor Diameter: 0.530 ± 0.005mm
- Insulation Material: HDPE
- Sheath Material: PVC
- Sheath Colour: Orange, RAL 2003
- Overall Cable Diameter: 6.2 ± 0.3mm
- Nominal Impedance: 100 ± 15 ohms
- Frequency Performance: Up to 250MHz
- DC Conductor Resistance: ≤8.3 ohms per 100m at 20°C
- Operating Temperature: -20°C to +60°C
- Test Standards: ANSI/TIA-568-C.2, ISO/IEC 11801, IEC 61156 and BS EN 50288
- Dimensions (H x L x W): 300mm x 305mm x 300mm
- Weight: 12.5 kg
Key Features
- 305m cable length for structured network installations
- Easy-pull hanked box for controlled cable dispensing
- Orange PVC outer sheath for easy identification
- Solid bare copper conductors
- CAT6 performance tested through 250MHz
- Four colour-coded twisted pairs
- Cable passes Fluke testing according to the manufacturer datasheet
Professional Installation Requirements
- Fixed or concealed customer cabling in Australia should be installed, terminated and tested by a registered cabler in accordance with AS/CA S009:2020 and applicable ACMA requirements.
Applications
- Residential Ethernet and data cabling
- Commercial office and structured cabling installations
- Security, CCTV and access-control network cabling
- Network backbone and horizontal cabling within the supported cable-channel limits
- Cable runs to network outlets, patch panels and telecommunications cabinets
Standards & Compliance
- AS/CA S008:2020 — applicable Australian requirements for customer cabling products; specific Ness AS/CA S008 approval is not stated in the available product datasheet
- AS/CA S009:2020 — installation requirements for customer cabling
Environmental Benefits
- Solid bare copper conductors are recyclable at end of service life
- Durable PVC-sheathed construction can reduce replacement frequency and material waste
- Bulk 305m packaging can reduce packaging and transport requirements compared with multiple shorter cable lengths
Warranty Information
Ness Corporation’s standard warranty is three years against defects for products manufactured or supplied by Ness, unless otherwise specified, subject to the manufacturer’s warranty terms and Australian Consumer Law.
Available Now
Available through Ness Corporation and authorised Australian distributors, subject to distributor stock levels.
