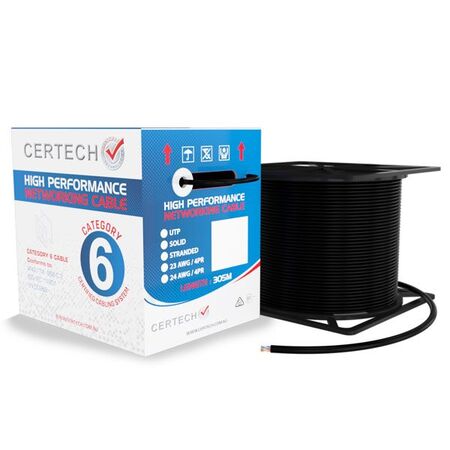

Cat6 U UTP Data Cable Solid 23AWG 250MHz Black 305m Reel Certech
Cat6 U UTP solid cable with 305m length and 100% bare copper—ideal for high-speed data transmission in residential and commercial networks. Built for safety with LSZ
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: UTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Diameter: 0.55mm
- Cable Gauge: 23AWG
- DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair ≤4.0%
- DC Resistance (Max.): ≤9.38Ω/100m
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- Mutual Capacitance at Frequency: ≤5.8nF/100m
- NVP: 69%
- Operating Frequency: 250MHz
- Flame Test Method: IEC60332-1-2
- Installation Temperature: -20 ~ +60 degrees Celsius
- Operating Temperature: -40 ~ +75 degrees Celsius
- Dimensions (H x L x W): 0.55mm x 305000mm x 0.55mm
- Weight: 13.1 kg
Key Features
- 305m length for extensive installations.
- 100% Bare Copper Cable for optimal conductivity.
- LSZH Jacket for reduced smoke and toxicity in case of fire.
- 4K UHD Ready for high-definition video transmission.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
- Residential: Home networking
- Commercial: Office networking, data centers
- General: Any installation requiring high-speed data transmission
Standards & Compliance
- Complies with AS/CA S008:2010 for telecommunications cabling.
Environmental Benefits
- LSZH jacket minimizes environmental impact by reducing harmful emissions in case of fire.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CERTECH 305M Cat6 U/UTP Solid Cable, Black LSZH Jacket is available now for immediate purchase. Ideal for residential and commercial networking applications.
FAQ
Q: What is the operating frequency and conductor spec of the Certech NCC6LSZHBLACK?
A: The NCC6LSZHBLACK runs at 250MHz operating frequency with a 23AWG 100% bare copper conductor and HDPE insulation, delivering reliable high-speed performance across Cat6 U UTP installations.
Q: Is the Certech Cat6 LSZH 305m cable suitable for commercial and data centre environments?
A: Yes — the LSZH jacket reduces smoke and toxic emissions in case of fire, making it appropriate for commercial office networking, data centres, and any installation where fire safety compliance is a consideration. It also meets AS/CA S008:2010 for telecommunications cabling.
For shielded installations requiring EMI protection, the 24-port unloaded shielded patch panel is compatible with Cat5e, Cat6, and Cat6a deployments.
Terminate runs cleanly using Cat6 feed-thru RJ45 connectors with 8P8C gold-plated contacts for reliable field termination.
A Cat6 keystone jack with 110 termination is a compatible wall socket solution for structured cabling with this cable.
