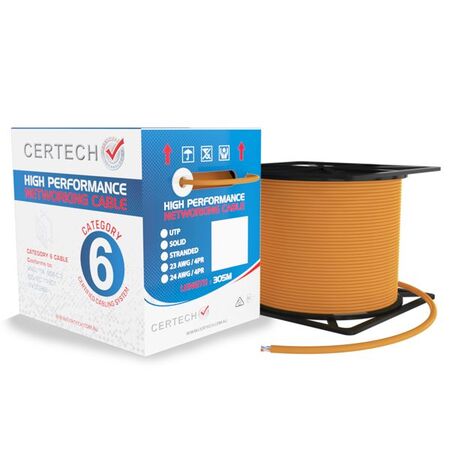

Cat6 U UTP Data Cable Solid 23AWG 250MHz Orange 305m Reel Certech
Cat6 U UTP solid cable with 305m length and LSZH jacket—ideal for networking and data transmission. Built for residential and commercial installations, with 100% bar
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: UTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Diameter: 0.55mm
- Cable Gauge: 23AWG
- Jacket Thickness: 0.55±0.05mm
- DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%
- DC Resistance (Max.): ≤9.38Ω/100m
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- Mutual Capacitance at Frequency: ≤5.8nF/100m
- NVP: 69%
- Operating Frequency: 250MHz
- Flame Test Method: IEC60332-1-2
- Installation Temperature: -20 ~ +60 degrees Celsius
- Operating Temperature: -40 ~ +75 degrees Celsius
- Dimensions (H x L x W): 0.55mm x 305000mm x 0.55mm
- Weight: 13.1 kg
Key Features
- 305m length for extensive installations.
- 100% Bare Copper Cable for optimal performance.
- LSZH Jacket for reduced smoke and toxicity.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Networking and data transmission
Standards & Compliance
- Complies with AS/CA S008:2010 for telecommunications cabling.
Environmental Benefits
- LSZH jacket reduces harmful emissions in case of fire.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CERTECH 305M Cat6 U/UTP Solid Cable, Orange LSZH Jacket is available now for immediate purchase. Ideal for networking and data transmission applications.
FAQ
Q: What conductor and jacket materials does the NCC6LSZHORANGE use?
A: This cable uses a 100% bare copper conductor with HDPE insulation and an LSZH (Low Smoke Zero Halogen) jacket — the LSZH jacket reduces harmful emissions in the event of fire, making it a safer option for enclosed residential and commercial spaces.
Q: What is the operating frequency and temperature range of the NCC6LSZHORANGE?
A: The cable operates at 250MHz and is rated for an operating temperature of -40 to +75 degrees Celsius, with an installation temperature range of -20 to +60 degrees Celsius — suitable for a wide range of indoor structured cabling environments.
