Trade Discount 25%

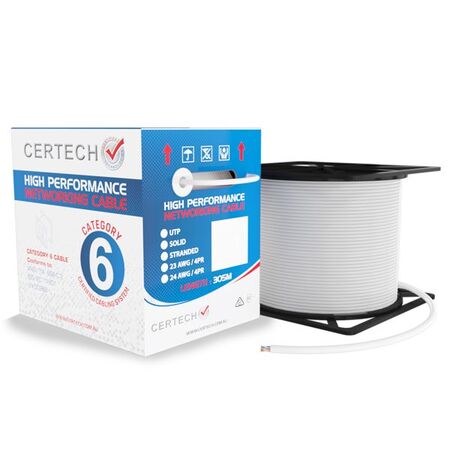

Cat6 U UTP Data Cable Solid 23AWG 250MHz White 305m Reel Certech
Cat6 U UTP solid cable with 305m length and LSZH jacket—ideal for extensive networking installations. Built for optimal performance with 100% bare copper conductor,
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: UTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Diameter: 0.55mm
- Cable Gauge: 23AWG
- DC Resistance (Max.): ≤9.38Ω/100m
- Operating Frequency: 250MHz
- Installation Temperature: -20 ~ +60 degrees Celsius
- Operating Temperature: -40 ~ +75 degrees Celsius
- Dimensions (H x L x W): 0.55mm x 305000mm x 0.55mm
- Weight: 13.1 kg
Key Features
- 305m length for extensive installations.
- 100% Bare Copper Conductor for optimal performance.
- LSZH Jacket for reduced smoke and toxicity.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with standards.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Networking and data transmission
Standards & Compliance
- Complies with AS/CA S008:2010 for telecommunications cabling.
Environmental Benefits
- LSZH jacket reduces harmful emissions in case of fire.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CERTECH 305M Cat6 U/UTP Solid Cable, White LSZH Jacket is available now for immediate purchase. Ideal for extensive networking applications.
FAQ
Q: Why choose a white jacket Cat6 cable like the Certech NCC6LSZHWHITE for indoor installations?
A: The white LSZH jacket makes the NCC6LSZHWHITE a practical choice for surface-run or semi-exposed cabling in homes, apartments, offices, and hospitality environments where cable appearance matters — while the LSZH material reduces harmful emissions in case of fire.
Q: What are the key electrical specs for the Certech NCC6LSZHWHITE?
A: The NCC6LSZHWHITE runs at 250MHz operating frequency with a 23AWG 100% bare copper conductor, DC resistance max of 9.38Ω/100m, and HDPE insulation — delivering consistent Cat6 U UTP performance across the full 305m drum length.
Pair this cable with a Cat6 patch cord to complete the link between patch panel and active network equipment.
Wall outlet terminations can be handled with a Cat6 keystone jack using standard 110 termination for structured cabling runs.
For larger rack installations, a 24-port Cat5e UTP patch panel with toolless termination supports efficient port management across multiple cable runs.
Order with confidence — SCHNAP offers a 30-day return policy on electrical products.
