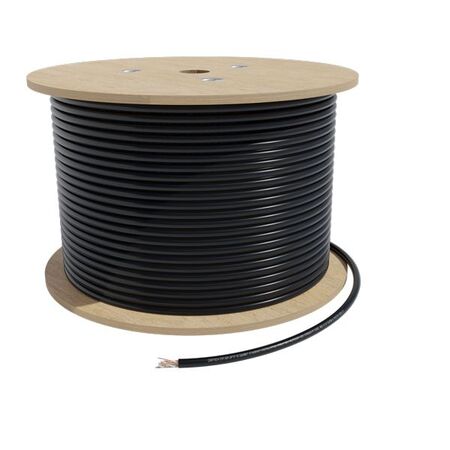

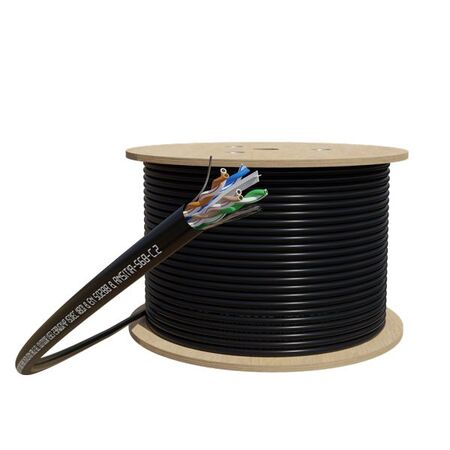

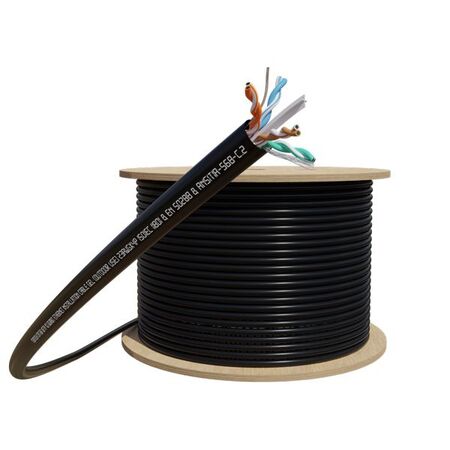

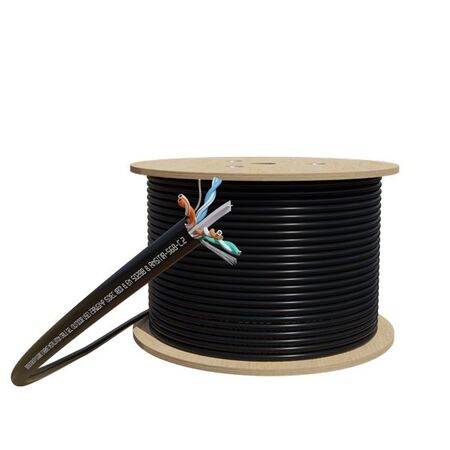

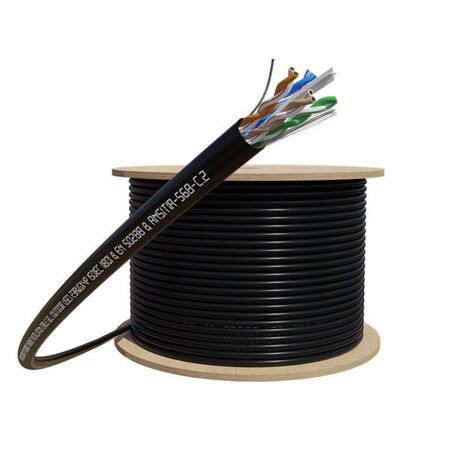

Cat6 U UTP Outdoor Data Cable Solid 23AWG Black 305m Reel Certech
Cat6 U UTP gel filled cable with 305m length and 250MHz frequency—ideal for underground installations. Built for high-speed data transmission, with UV stabilized PE
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: UTP
- Jacket Material: PE (UV Stabilised)
- Conductor Material: Bare Copper
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Diameter: 0.57mm
- Cable Gauge: 23AWG
- Jacket Thickness: 0.60±0.05mm
- DC Resistance (Max.): ≤9.38Ω/100m
- Operating Frequency: 250MHz
- Installation Temperature: -20 ~ +60 degrees Celsius
- Operating Temperature: -40 ~ +75 degrees Celsius
- Dimensions (H x L x W): 0.6mm x 305000mm x 0.57mm
- Weight: 14.3 kg
Key Features
- 305m length of Cat6 Black UTP Gel Filled Solid Cable.
- 250MHz operating frequency with 100% bare copper conductors.
- UV stabilized PE jacket for durability.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
- Ideal for underground installations requiring high-speed data transmission.
- Suitable for residential and commercial networking applications.
Standards & Compliance
- Complies with AS/CA S008:2010 for telecommunications cabling.
Environmental Benefits
- UV stabilized materials enhance longevity and reduce waste.
- Solid construction minimizes the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CERTECH 305M Cat6 U/UTP Solid Gel Filled (Underground) Cable is available now for immediate purchase. Ideal for underground networking applications.
FAQ
Q: What makes the NCC6SLDGEL suitable for underground installations?
A: This cable combines a gel-filled construction with a UV stabilised PE jacket — the gel filling protects against moisture ingress in underground environments, while the UV stabilised PE jacket enhances longevity and reduces waste by minimising the need for frequent replacements. The solid construction is rated for an operating temperature of -40 to +60 degrees Celsius.
Q: What operating frequency and conductor type does the NCC6SLDGEL use?
A: The cable operates at 250MHz with 100% bare copper conductors at 23AWG — delivering reliable high-speed data transmission performance across the full 305 metre run for underground residential and commercial networking applications.
For above-ground external runs where gel-filling is not required, the Cat6 bulk cable 305m U UTP external 250MHz bare copper PE jacket black variant is also stocked.
The 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6a is a structured rack option for terminating underground cable runs of this type at the internal distribution point.
A Cat6 outdoor cable 4-pair 250MHz PE jacket is also available for projects requiring an outdoor-rated option without gel filling.
