Trade Discount 25%

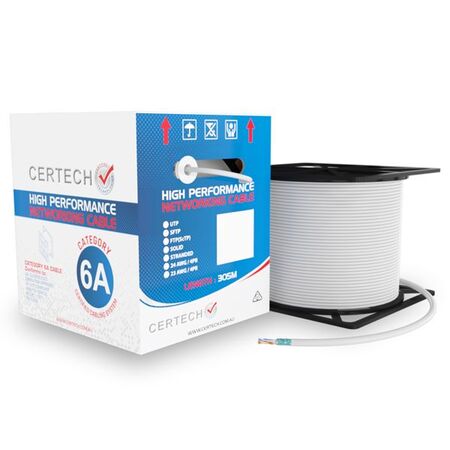

Cat6A F UTP Data Cable Solid 23AWG 500MHz Grey 305m Reel Certech
Cat6A 10G F UTP Ethernet cable with 305m length and LSZH jacket—ideal for high-speed data transmission in residential and commercial networks. Built for reduced inte
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: F/UTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Diameter: 0.57mm
- Cable Gauge: 23AWG
- Jacket Thickness: 0.55±0.05mm
- DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair ≤4.0%
- DC Resistance (Max.): ≤9.38Ω/100m
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- Mutual Capacitance at Frequency: ≤5.8nF/100m
- NVP: 69%
- Operating Frequency: 500MHz
- Flame Test Method: IEC60332-1-2
- Installation Temperature: -10 ~ +50 degrees Celsius
- Operating Temperature: -20 ~ +75 degrees Celsius
- Dimensions (H x L x W): 57mm x 305000mm x 57mm
- Weight: 16 kg
Key Features
- 305m length for extensive installations.
- F/UTP design for reduced interference.
- LSZH jacket for enhanced safety.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
- Residential: Home networking
- Commercial: Office networking, data centers
- General: High-speed data transmission
Standards & Compliance
- Complies with AS/CA S008:2010 for telecommunications cabling.
Environmental Benefits
- LSZH jacket reduces harmful emissions in case of fire.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CERTECH 305M Cat6A 10G F/UTP Solid Cable, Grey LSZH Jacket is available now for immediate purchase. Ideal for high-speed networking applications.
FAQ
Q: What interference protection does the Certech Cat6A F/UTP Data Cable 305m Grey provide?
A: This cable uses F/UTP (foil unshielded twisted pair) construction, providing an overall foil shield for reduced electromagnetic interference. The 23AWG solid bare copper conductors and 500MHz operating frequency support 10G data transmission in residential, commercial, and data centre environments across a full 305m reel for extensive installations.
Q: What does the LSZH jacket on the NCC6AFUTPGREY offer for building and data centre installations?
A: The LSZH (Low Smoke Zero Halogen) jacket reduces harmful emissions in case of fire, making this cable appropriate for occupied buildings, data centres, and telecommunications infrastructure where fire safety compliance is a requirement. The cable complies with AS/CA S008:2010 for telecommunications cabling and has been flame tested to IEC60332-1-2.
The same Cat6A F/UTP LSZH solid cable is available in a green jacket for colour-coded structured cabling across the same installation.
A Cat6A RJ45 STP keystone socket rated to 10Gbps is available for wall outlet terminations on the same Cat6A structured cabling infrastructure.
A 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6a cabling is available for centralised termination across large-scale installations.
Register for a trade account to access exclusive pricing on this and other electrical products.
