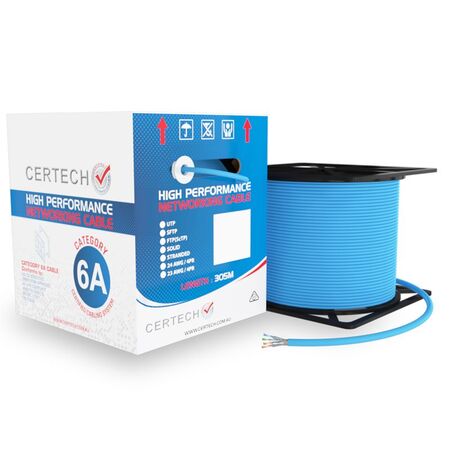

Cat6A S FTP Data Cable Solid 23AWG 650MHz Blue 305m Reel Certech
Cat6A 10G S FTP solid cable with 305m length and LSZH jacket—ideal for high-speed data transmission. Built for residential and commercial networking, with enhanced p
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: S/FTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper
- Insulation Material: Skin Foam Skin PE
- Cable Length: 305m
- Cable Diameter: 0.56mm
- Cable Gauge: 23AWG
- Jacket Thickness: 0.55±0.05mm
- DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair ≤4.0%
- DC Resistance (Max.): ≤9.38Ω/100m
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- Mutual Capacitance at Frequency: ≤5.8nF/100m
- NVP: 74%
- Operating Frequency: 650MHz
- Flame Test Method: IEC60332-1-2
- Installation Temperature: -20 ~ +60 degrees Celsius
- Operating Temperature: -40 ~ +75 degrees Celsius
- Dimensions (H x L x W): 0.56mm x 305000mm x 0.56mm
- Weight: 16.8 kg
Key Features
- 305m length for extensive installations.
- S/FTP design for enhanced performance and reduced interference.
- 100% bare copper conductors for superior conductivity.
- LSZH jacket for reduced smoke and toxicity in case of fire.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
- Residential: Home networking
- Commercial: Office networking, data centers
- General: High-speed data transmission
Standards & Compliance
- Complies with AS/CA S008:2010 for telecommunications cabling.
Environmental Benefits
- LSZH jacket minimizes environmental impact by reducing harmful emissions in case of fire.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CERTECH 305M Cat6A 10G S/FTP Solid Cable, Blue LSZH Jacket is available now for immediate purchase. Ideal for high-speed networking applications.
FAQ
Q: How does the 650MHz operating frequency of this cable compare to standard Cat6A, and who is it suited for?
A: Standard Cat6A cables typically operate up to 500MHz. This Certech S/FTP cable is rated to 650MHz, providing additional headroom for signal integrity in demanding installations such as data centres, commercial office networks, and high-density structured cabling environments. The S/FTP construction with individual pair foil shielding further reduces crosstalk and external interference across the full 305m length.
Q: Is this cable suitable for installations where fire safety compliance is required?
A: Yes. The LSZH (Low Smoke Zero Halogen) jacket minimises harmful emissions in the event of fire, making it appropriate for enclosed commercial spaces and data centres. The cable also complies with AS/CA S008:2010 for telecommunications cabling, and professional installation is recommended for optimal performance and compliance with local regulations.
Terminate this cable at the rack using a Cat6A RJ45 STP keystone socket rated for 10 Gbps to maintain shielded continuity at each outlet point.
Rack termination for this cable run can be managed through a 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6A structured cabling systems.
For installations where a grey jacket is preferred in the same Cat6A S/FTP LSZH category, the Cat6A S/FTP data cable solid 23AWG 650MHz grey 305m reel from Certech is available as a colour variant.
Backed by SCHNAP's 30-day returns policy for added purchasing confidence.
