Trade Discount 25%

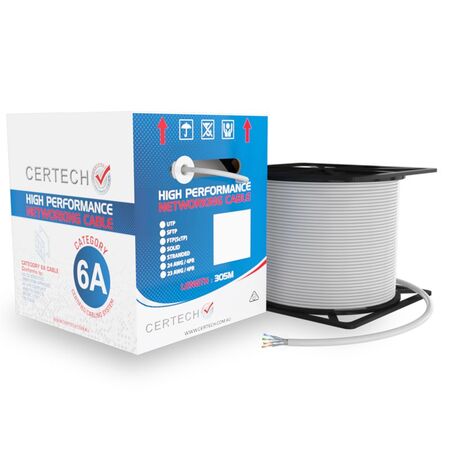

Cat6A S FTP Data Cable Solid 23AWG 650MHz Grey 305m Reel Certech
Cat6A 10G S FTP solid cable with 305m length and LSZH jacket—ideal for high-speed data transmission in residential and commercial networks. Built for reduced interfe
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: S/FTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper
- Insulation Material: Skin Foam Skin PE
- Cable Length: 305m
- Cable Diameter: 0.56mm
- Cable Gauge: 23AWG
- DC Resistance (Max.): ≤9.38Ω/100m
- Operating Frequency: 650MHz
- Installation Temperature: -20 ~ +60 degrees Celsius
- Operating Temperature: -40 ~ +75 degrees Celsius
- Dimensions (H x L x W): 0.56mm x 305000mm x 0.56mm
- Weight: 16.8 kg
Key Features
- 305m length for extensive installations.
- S/FTP design for reduced interference.
- LSZH jacket for improved safety.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with standards.
Applications
- Residential: Home networking
- Commercial: Office networking, data centers
- General: High-speed data transmission
Standards & Compliance
- Complies with AS/CA S008:2010 for telecommunications cabling.
Environmental Benefits
- LSZH jacket reduces toxic emissions in case of fire.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CERTECH 305M Cat6A 10G S/FTP Solid Cable, Grey LSZH Jacket is available now for immediate purchase. Ideal for high-speed networking applications.
FAQ
Q: What makes the S/FTP construction on this cable suited to commercial and data centre installations?
A: The S/FTP (Shielded Foiled Twisted Pair) design provides shielding at both the individual pair and overall cable level, significantly reducing crosstalk and external electromagnetic interference. Combined with a 650MHz operating frequency and 23AWG bare copper conductors, this makes the cable well suited for data centres, office networking, and any structured cabling environment where signal integrity across a 305m run is important.
Q: Does this cable comply with Australian telecommunications cabling standards?
A: Yes. The Cat6A S/FTP Data Cable Solid 23AWG 650MHz Grey 305m Reel Certech complies with AS/CA S008:2010 for telecommunications cabling. Professional installation is recommended for optimal performance and compliance with local regulations.
Terminate this cable at the rack using a Cat6A RJ45 STP keystone socket rated for 10 Gbps to maintain shielded continuity at each outlet point.
Rack termination for this cable run can be managed through a 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6A structured cabling systems.
For installations where a blue jacket is preferred in the same Cat6A S/FTP LSZH category, the Cat6A S/FTP data cable solid 23AWG 650MHz blue 305m reel from Certech is available as a colour variant.
Register for a trade account to access exclusive pricing on this and other electrical products.
