Cat6A UTP Data Cable Solid 23AWG LSZH Blue Cabac

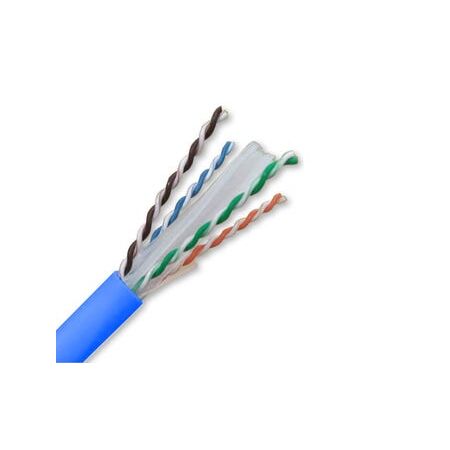

Category 6A U-UTP Ethernet cable in blue LSZH, designed for high-speed data transmission—ideal for home and office networking. Built for reliability, with low smoke
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor: 23 AWG bare copper solid
- Cable Type: Unshielded Twisted Pair (U-UTP)
- Length: 305 metres
- Standards Compliance: AS/NZS 11801.1, ANSI/TIA 568.2-D
- Performance: Supports 10 Gigabit Ethernet
- Jacket: Low Smoke Zero Halogen (LSZH)
- Application: Permanent link installations
- Dimensions (H x L x W): 10mm x 305000mm x 10mm
- Weight: 2.5 kg
Key Features
- Supports Cat6A Link and Channel performance standards
- 23 AWG bare copper solid conductors
- Central spline separator for improved performance
- Unshielded Twisted Pair (U-UTP) design
- Low Smoke Zero Halogen (LSZH) jacket for safety
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure compliance with performance standards and safety.
Applications
- Permanent network installations from patch panel to wall outlet jack
- 10 Gigabit Ethernet networks
- Data communication and networking in commercial and residential buildings
Standards & Compliance
- Complies with AS/NZS 11801.1 for structured cabling systems
Environmental Benefits
- LSZH jacket reduces toxic smoke and halogen emissions in case of fire
- Durable solid conductor design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Ethernet Cable Category 6A U-UTP Blue LSZH is available now for immediate purchase. Ideal for permanent network installations requiring high-speed data transmission.
FAQ
Q: What is the central spline separator in this cable, and why does it matter for Cat6A performance?
A: The central spline separator is a physical cross-shaped element that maintains consistent separation between the four twisted pairs across the full 305m cable length. This reduces crosstalk between pairs and improves overall signal integrity, which is important for supporting Cat6A Link and Channel performance standards — particularly in 10 Gigabit Ethernet network installations where signal quality over longer runs is critical.
Q: Does this cable comply with Australian structured cabling standards?
A: Yes. The Cat6A UTP Data Cable Solid 23AWG LSZH Blue Cabac complies with AS/NZS 11801.1 and ANSI/TIA 568.2-D for performance standards, and meets AS/NZS 11801.1 for structured cabling systems. A standard manufacturer warranty applies — refer to Cabac warranty policy for details.
Terminate this cable at the wall outlet using a Cat6A UTP data socket with toolless IDC connection for a clean, compliant finish in commercial and residential installations.
Rack termination for this 305m reel can be managed through a 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6A structured cabling systems.
For Cat6A UTP installations requiring a green jacket in the same Cabac range, the Cat6A UTP data cable solid 23AWG LSZH green from Cabac is available as a colour variant.
Backed by SCHNAP's 30-day returns policy for added purchasing confidence.
