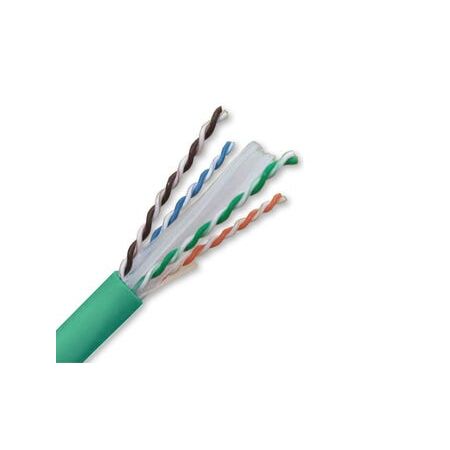

Cat6A UTP Data Cable Solid 23AWG LSZH Green Cabac
Category 6A U-UTP Ethernet cable in green LSZH, designed for high-speed data transmission and low smoke emission. Ideal for networking in homes and offices, it offer
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor: 23 AWG bare copper solid conductors
- Cable Type: Unshielded Twisted Pair (U-UTP)
- Standards Compliance: AS/NZS 11801.1, ANSI/TIA 568.2-D
- Performance: Supports 10 Gigabit Ethernet
- Length: 305 metres per roll
- Jacket: Low Smoke Zero Halogen (LSZH)
- Central spline separator for reduced crosstalk
- Dimensions (H x L x W): 10mm x 305000mm x 10mm
- Weight: 2.5 kg
Key Features
- Supports Cat6A Link and Channel performance standards
- 23 AWG bare copper solid conductors
- Central spline separator for improved performance
- Unshielded Twisted Pair (U-UTP) design
- Supports 10 Gigabit Ethernet speeds
- Low Smoke Zero Halogen (LSZH) jacket for safety
Professional Installation Requirements
- Professional installation by certified network cabling technicians is recommended to ensure compliance with performance standards and optimal network performance.
Applications
- Permanent network installations from patch panel to wall outlet jack
- 10 Gigabit Ethernet networks requiring high performance cabling
- Data communication in commercial and residential buildings
Standards & Compliance
- Complies with AS/NZS 11801.1 for structured cabling systems
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- Durable solid conductor design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Ethernet Cable Category 6A U-UTP Green LSZH is available now for immediate purchase. Ideal for permanent network installations requiring high-speed data transmission.
FAQ
Q: What is the central spline separator in this cable, and how does it improve Cat6A performance?
A: The central spline separator is a physical cross-shaped element that maintains consistent separation between the four twisted pairs across the full 305m length. This reduces crosstalk between pairs and supports Cat6A Link and Channel performance standards per AS/NZS 11801.1 and ANSI/TIA 568.2-D, which is particularly important for reliable 10 Gigabit Ethernet performance in high-density commercial and residential network installations.
Q: Does this cable comply with Australian structured cabling standards?
A: Yes. The Cat6A UTP Data Cable Solid 23AWG LSZH Green Cabac complies with AS/NZS 11801.1 for structured cabling systems and meets ANSI/TIA 568.2-D performance standards. A standard manufacturer warranty applies — refer to Cabac warranty policy for details.
Terminate this cable at the wall outlet using a Cat6A UTP data socket with toolless IDC connection for a clean, compliant finish in commercial and residential installations.
Rack termination for this 305m reel can be managed through a 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6A structured cabling systems.
For Cat6A UTP installations requiring a blue jacket in the same Cabac range, the Cat6A UTP data cable solid 23AWG LSZH blue Cabac is available as a colour variant.
