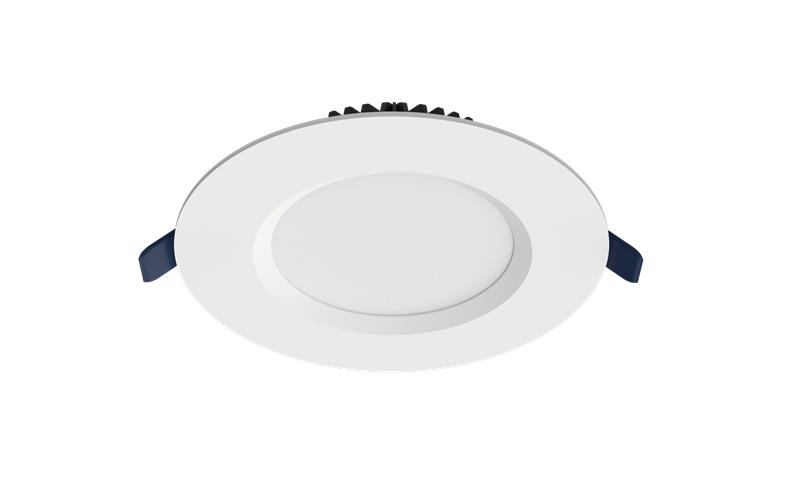

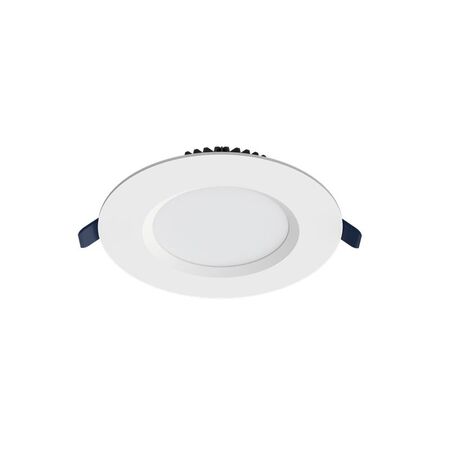

'Centauri 150mm Downlight Tri-Colour 15W 0-10V Dimmable Haneco'

BRAND: Haneco
SKU: CENT150R-H10VD
$163.60 List price: $218.20
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Centauri 150mm downlight features tri-colour CCT, 15W 500mA driver and 0/1-10V power switchable dimming. Ideal for commercial ceiling lighting.'

Alternatively Known As: Haneco Centauri CENT150R-H10VD, commercial LED downlight, recessed LED downlight, tri-colour LED downlight

Technical Specifications
  • Product Code: CENT150R-H10VD
  • SAP Code: 7000297
  • Power: 15W
  • Lumen Output: 1440lm at 3000K, 1520lm at 4000K, 1490lm at 5000K
  • Colour Temperature: 3000K / 4000K / 5000K tri-colour selectable
  • Dimming: 0/1-10V dimmable with power-switchable driver
  • Beam Angle: 100°
  • Efficacy: 95lm/W at 3000K, 101lm/W at 4000K, 99lm/W at 5000K
  • Colour Rendering: CRI greater than 80
  • Ingress Protection: IP44
  • Insulation Rating: IC-4
  • Electrical Classification: Class II
  • Input Voltage: 220-240V AC, 50/60Hz
  • Driver: Remote 15W LED driver
  • Projected Life: 50,000 hours at Ta 25°C
  • Housing Material: Aluminium
  • Diffuser Material: Polycarbonate
  • Finish: White
  • Installation Type: Recessed
  • Dimensions (H x L x W): 35mm x 150mm x 150mm
  • Weight: 0.76 kg
Key Features
  • Tri-colour selectable output between 3000K, 4000K and 5000K
  • 0/1-10V dimmable driver for commercial lighting control systems
  • Power-switchable 15W driver configuration
  • Ultra-low-profile 35mm body for restricted ceiling cavities
  • IC-4 rated recessed construction
  • IP44-rated luminaire for increased installation flexibility
  • 100° beam angle for general commercial illumination
  • Remote driver with plug-and-lead connection
  • Suitable for commercial ceiling lighting applications
Professional Installation Requirements
  • Installation and connection to 220-240V mains power should be completed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian wiring requirements. The 0/1-10V control wiring should be installed and commissioned by a suitably qualified electrical contractor.
Applications
  • Commercial offices
  • Retail stores
  • Hospitality venues
  • Restaurants and cafes
  • Corridors and common areas
  • Education and institutional buildings
  • General recessed ceiling lighting
Standards & Compliance
  • AS/NZS 60598.1: Luminaires — General requirements and tests
  • AS/NZS 60598.2.2: Particular requirements for recessed luminaires
  • AS/NZS 61347.1: Lamp controlgear — General and safety requirements
  • AS/NZS 3000: Electrical installations — Wiring Rules, applicable to installation
Environmental Benefits
  • LED technology provides lower energy consumption than many conventional commercial lighting technologies
  • Selectable power and colour temperature can help optimise lighting output for the application
  • 50,000-hour projected life can reduce replacement frequency and associated waste
  • Aluminium housing and polycarbonate components are recyclable through appropriate material recovery channels
Warranty Information

5-year warranty for the Centauri commercial downlight range, subject to Haneco warranty terms, licensed installation and correct operation.

Available Now

Available through Haneco and authorised Australian electrical and lighting distributors.
