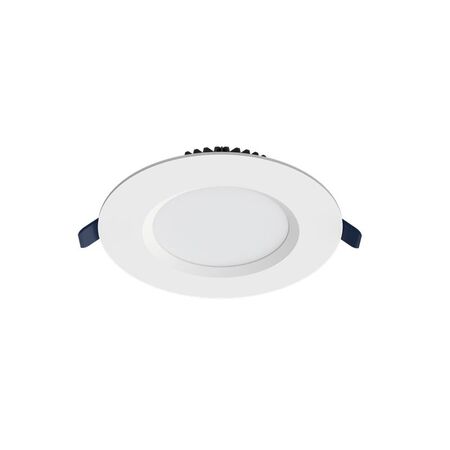

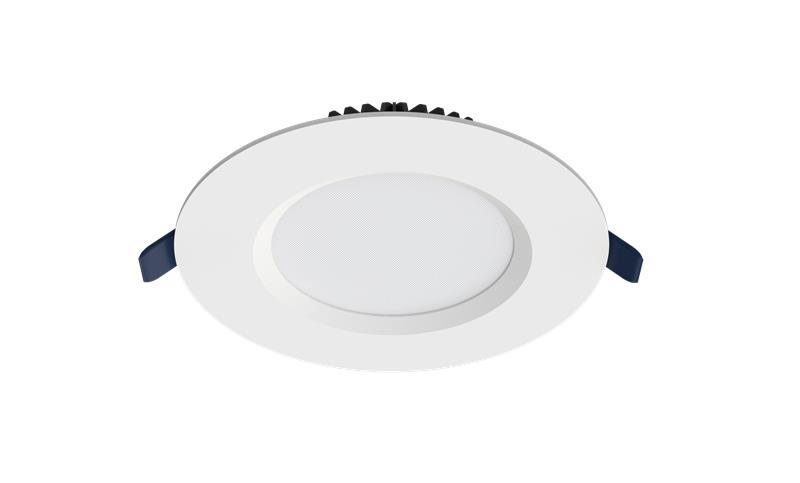

'Centauri 150mm Downlight Tri-Colour 15W DALI Dimmable Haneco'
'Haneco Centauri 150mm downlight features tri-colour CCT, 15W 500mA driver and DALI power switchable dimming. Ideal for commercial ceiling lighting.'
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Centauri CENT150R-HDALI, Haneco 150mm Commercial Downlight, Tri-Tone LED Downlight, DALI LED Downlight
Technical Specifications
- Product Code: CENT150R-HDALI
- SAP Code: 7000298
- Power: 15W
- Driver: Remote DALI dimmable, power-switchable
- Light Output: 1440 / 1520 / 1490 lm at 3000 / 4000 / 5000K
- Colour Temperature: 3000K / 4000K / 5000K tri-colour selectable
- Beam Angle: 100°
- Colour Rendering: CRI >80
- Input Voltage: 220-240V AC, 50/60Hz
- Power Factor: >0.9
- Ingress Protection: IP44 from below
- Insulation Rating: IC-4, suitable for covered and abutted installations
- Housing Material: Diecast aluminium
- Diffuser Material: Polycarbonate
- LED Life: 50,000 hours at L70, Ta 25°C
- Cut-out Size: Ø105-135mm
- Operating Temperature: -20°C to 40°C
- Electrical Classification: Class II
- Finish: White
- Dimensions (H x L x W): 35mm x 150mm x 150mm
- Weight: 0.76 kg
Key Features
- Tri-colour CCT selection from one fitting
- DALI dimmable driver for digital lighting control systems
- Power-switchable output for flexible installation requirements
- Ultra-low-profile 35mm design for shallow ceiling spaces
- IC-4 rated for covered and abutted installations
- IP44 protection from below
- 100° wide beam for general commercial illumination
- Diecast aluminium housing for thermal management
- Remote driver supplied for accessible servicing
- Designed for commercial areas including offices, boardrooms, entrances, hallways and hotel common areas
Professional Installation Requirements
- Installation and connection to mains power and DALI control wiring must be performed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian wiring requirements. Confirm compatibility with the selected DALI control system before installation.
Applications
- Commercial offices and workspaces
- Boardrooms and meeting rooms
- Retail and showroom areas
- Hotel common areas and hospitality venues
- Entrances, hallways and circulation spaces
- Function areas and staircases
- Commercial ceiling lighting where shallow installation depth is required
Standards & Compliance
- AS/NZS 60598 series, including AS/NZS 60598.2.2 for recessed luminaires, as the applicable luminaire safety standard
- AS/NZS 61347 series for LED lamp controlgear and drivers, as applicable to the remote driver
- IEC 62386 for the DALI digital lighting interface
- AS/NZS 3000 wiring requirements for electrical installation
Environmental Benefits
- LED technology provides lower energy consumption than equivalent fluorescent or halogen lighting
- 50,000-hour L70 service life can reduce replacement frequency and associated waste
- Power-switchable operation allows output to be matched to project requirements, avoiding unnecessary energy use
- Aluminium housing is durable and recyclable at end of service life
- Tri-colour selection allows one fitting to suit multiple lighting requirements, reducing product replacement during fit-outs
Warranty Information
5-year warranty against manufacturing defects, subject to Haneco warranty terms, correct installation and installation by a licensed electrician. Warranty is provided by replacement and does not generally cover removal or reinstallation labour.
Available Now
Available through Haneco and authorised Australian electrical wholesalers and distributors.
