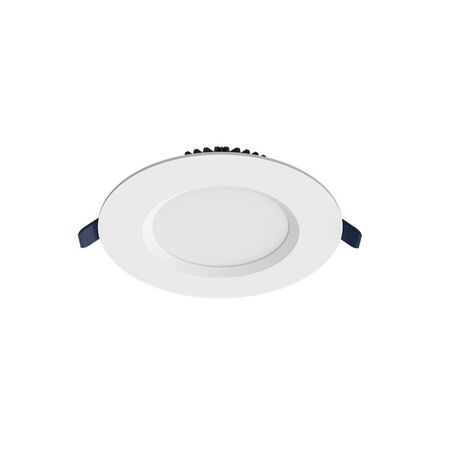

'Centauri 190mm Downlight Tri-Colour 15W 0-10V Dimmable Haneco'

BRAND: Haneco
SKU: CENT190R-H10VD
$215.40 List price: $287.20
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Centauri 190mm downlight features tri-colour CCT, 15W 600mA driver and 0/1-10V power switchable dimming. Ideal for commercial ceiling lighting.'

Alternatively Known As: CENT190R-H10VD, Haneco Centauri Commercial Downlight, Haneco 190mm Commercial LED Downlight

Technical Specifications
  • Product Code: CENT190R-H10VD
  • SAP Code: 7000300
  • Power Modes: 15W low-power mode / 25W high-output mode
  • CCT: 3000K / 4000K / 5000K
  • Lumen Output: 1470/1600/1610 lm at 15W; 2500/2680/2640 lm at 25W
  • Efficacy: 98/107/107 lm/W at 15W; 100/107/106 lm/W at 25W
  • Dimming: 0/1-10V dimmable power-switchable driver
  • LED Input Current: 400-600mA nominal
  • Beam Angle: 100°
  • Input Voltage: 220-240V AC, 50/60Hz
  • Power Factor: >0.9
  • CRI: >80
  • IP Rating: IP44 front and body
  • IC Rating: IC-4
  • Electrical Classification: Class 2, double insulated
  • Housing: Diecast aluminium
  • Diffuser: Opal polycarbonate
  • Connection: 1.2m flex and plug
  • Operating Temperature: -20°C to 45°C
  • Expected Life: More than 50,000 hours at Ta 25°C, L70
  • Cut-out Size: 170-180mm
  • Dimensions (H x L x W): 35mm x 190mm x 190mm
  • Weight: 0.96 kg
Key Features
  • Tri-colour CCT selection between 3000K, 4000K and 5000K
  • Selectable 15W and 25W power modes
  • 0/1-10V dimmable remote driver
  • Ultra-low-profile 35mm fitting depth
  • IC-4 rated for covered and abutted installations
  • IP44 protection from the front and rear
  • 100° wide beam for commercial general lighting
  • Diecast aluminium housing with opal polycarbonate diffuser
  • Suitable for shallow ceiling spaces
  • Supplied with flex and plug
Professional Installation Requirements
  • Installation and mains electrical connection must be completed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable Australian electrical requirements. Confirm compatibility with the selected 0/1-10V control system before installation.
Applications
  • Commercial ceiling lighting
  • Retail premises
  • Hospitality venues
  • Boardrooms and meeting rooms
  • Offices and reception areas
  • Hotel common areas
  • Hallways and entrance areas
  • Function areas and staircases
Standards & Compliance
  • AS/NZS 60598 for general lighting luminaires
  • AS/NZS 60598.2.2 for recessed luminaires
Environmental Benefits
  • LED technology provides high luminous efficacy and lower energy consumption than conventional lighting technologies
  • Selectable 15W low-power mode can reduce energy use where maximum output is not required
  • More than 50,000-hour rated life can reduce replacement frequency and associated waste
  • Aluminium housing and polycarbonate components may be recyclable through appropriate material-recovery streams
Warranty Information

Haneco Centauri products are advertised with a 5-year direct replacement warranty against manufacturing defects, subject to Haneco's warranty terms. Installation by a licensed electrician and proof of purchase and installation may be required; labour and removal/reinstallation costs are generally excluded.

Available Now

Available through Haneco and authorised Australian electrical distributors.
