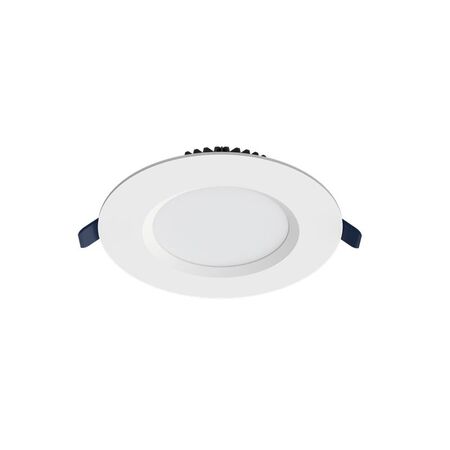

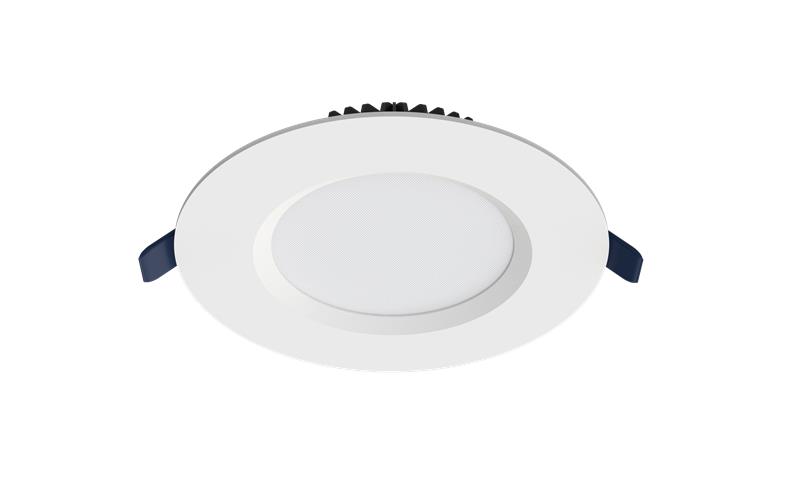

'Centauri 190mm Downlight Tri-Colour 15W DALI Dimmable Haneco'

BRAND: Haneco
SKU: CENT190R-HDALI
$243.10 List price: $324.10
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Centauri 190mm downlight features tri-colour CCT, 15W 600mA driver and DALI power switchable dimming. Ideal for commercial ceiling lighting.'

Alternatively Known As: Centauri 190mm Commercial Downlight, Haneco Centauri DALI Downlight, 190mm Tri-Tone LED Downlight

Technical Specifications
  • Power: 15 W
  • Driver: Remote 600 mA DALI dimmable driver
  • Colour Temperature: 3000 K / 4000 K / 5000 K
  • Lumen Output: 1470 lm / 1600 lm / 1610 lm
  • Efficacy: 98 lm/W / 107 lm/W / 107 lm/W
  • Beam Angle: 100°
  • Cutout Size: 170–180 mm diameter
  • Input Voltage: 220–240 V AC, 50/60 Hz
  • Power Factor: >0.9
  • Ingress Protection: IP44 front and body
  • Insulation Rating: IC-4
  • Electrical Classification: Class II
  • Colour Rendering Index: >80
  • Lifespan: >50,000 hours at 25°C, L70
  • Operating Temperature: -20°C to 45°C
  • Housing Material: Die-cast aluminium
  • Diffuser Material: Opal polycarbonate
  • Connection: Remote driver with flex and plug
  • Dimensions (H x L x W): 35mm x 190mm x 190mm
  • Weight: 0.96 kg
Key Features
  • Tri-colour CCT selection between 3000 K, 4000 K and 5000 K
  • DALI digital dimming for commercial lighting control systems
  • Power-switchable driver configuration
  • Ultra-low-profile 35 mm luminaire depth
  • IC-4 rated for covered and abutted ceiling installations
  • 100° wide beam for general commercial illumination
  • Overload and short-circuit protection
  • White finish with recessed opal diffuser
  • Suitable for shallow ceiling spaces
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. DALI control wiring and mains connections must be isolated and tested before energising.
Applications
  • Commercial offices and meeting rooms
  • Retail shops and showrooms
  • Hotels and hospitality venues
  • Restaurants and function areas
  • Hallways and common areas
  • Staircases and public interior spaces
Standards & Compliance
  • AS/NZS 60598.2.2: Particular requirements for recessed luminaires
  • AS/NZS 3000: Electrical installations and wiring rules
Environmental Benefits
  • LED technology provides lower energy consumption than conventional fluorescent and halogen downlights
  • Long service life of more than 50,000 hours can reduce replacement frequency and material waste
  • Aluminium housing is recyclable at end of service life
  • DALI dimming and tri-colour selection support lighting optimisation and reduced operating energy
  • IC-4 installation compatibility can simplify insulation-covered applications without compromising intended thermal performance
Warranty Information

5-year warranty is stated for the Centauri range, subject to Haneco warranty terms and conditions. Warranty claims require proof of purchase and installation by an authorised electrician.

Available Now

Available through Haneco and authorised Australian electrical distributors.
