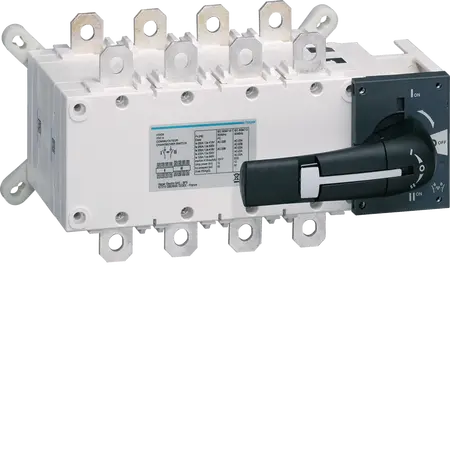

Change-over Switch 4P 250A | 1000V Insulation | Interlockable Cover Hager
Change-over switch with 250A rated current and 1000V insulation—ideal for industrial and commercial power management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated insulation voltage: 1000 V
- Rated impulse withstand voltage: 12000 V
- Rated short-time withstand current: 15 kA
- Rated conditional short-circuit current: 50 kA
- Rated operational power under 400 V AC: 164000 W
- Total power loss under IN: 23.60 W
- Number of poles: 4
- Frequency: 50 - 60 Hz
- Connection cross-section for rigid conductor: 95 - 150 mm²
- Dimensions (H x L x W): 160mm x 218mm x 312mm
- Weight: 5 kg
Key Features
- Rated current of 250 A for robust performance.
- IP00 ingress protection for indoor use.
- Interlockable cover for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and management
- Commercial: Large buildings and facilities
- General: Any application requiring reliable power switching
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Hager Change-over Switch 4P 250A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable power management.
