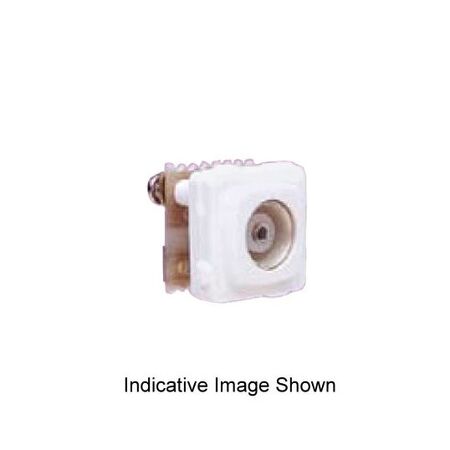

Coax Loop Tap 16dB White 1.3dB Insertion Loss HPM

BRAND: Hpm
SKU: 770L16CXWE
$64.80 List price: $80.80
1 EA ($64.80 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
HPM coax loop tap provides 16dB tap loss for daisy-chained TV outlets. Suited for wall-plate loop-through installs.
Technical Specifications
  • Tap loss: 16dB
  • Insertion loss: 1.3dB
  • Cut-out size: 57 x 95 mm
  • Compatible with HPM Excel, Linea, Architectural Metal and Standard ranges
  • Colour: White
  • Dimensions (H x L x W): 97mm x 45mm x 97mm
  • Weight: 0.1 kg
Key Features
  • Loop circuit connector
  • Tap loss 16dB, insertion loss 1.3dB
  • Flexible 770 module compatible with HPM Excel, Linea, Architectural Metal and Standard ranges
  • White colour finish
  • Easy to clean with a damp cloth only
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal performance.
Applications
  • Residential TV antenna distribution
  • Commercial TV signal distribution
  • Use in coaxial cable loop circuits for signal tapping
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information

1 Year warranty against manufacturing defects.

Available Now

The HPM Standard 16DB TV Coax Loop Circuit Tap is available now for immediate purchase. Ideal for residential and commercial TV signal distribution applications.


FAQ

Q: How does this 16dB tap differ from the 12dB version?

A: It offers a higher 16dB tap loss with a lower 1.3dB insertion loss, suiting different signal splitting requirements within the same loop circuit system.

Q: What cut-out size does this loop circuit tap require?

A: It requires a 57 x 95mm cut-out, compatible with the HPM Excel, Linea, Architectural Metal, and Standard ranges.


A 12dB tap loss loop circuit tap is also available for installations needing a different signal split.

Pair this loop tap with a 1 gang coaxial TV outlet for a complete signal distribution point.

For longer cable runs, an RG6 quad shield coaxial cable suits this loop circuit configuration.

Order with confidence — SCHNAP offers a 30-day return policy on electrical products.
