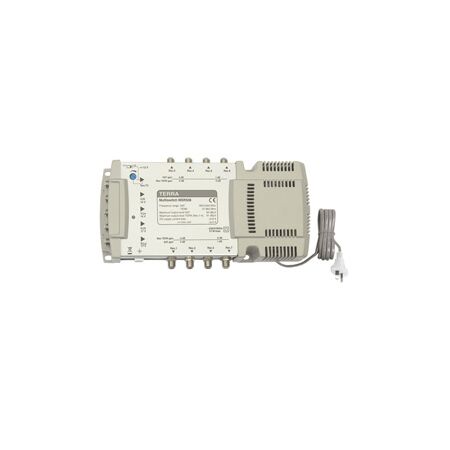

Multiswitch 5 In 8 Out Mains Powered High Output Matchmaster
Matchmaster 5-in 8-out multiswitch with built-in power supply, 47-862MHz terrestrial and 950-2400MHz satellite bands and up to 92dBuV output.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency range: TERR. 47 - 862MHz; SAT 950 - 2400MHz
- Built-in power supply for remote DC feeding
- System isolation exceeds Foxtel specifications
- Signal level control on multiswitch for easy system level balancing
- Graduated output for balanced levels on long and short cable runs
- High output up to 92dBµV allowing cable runs up to 45m
- Dimensions (H x L x W): 50mm x 150mm x 200mm
- Weight: 1.5 kg
Key Features
- Frequency range: TERR. 47 - 862MHz; SAT 950 - 2400MHz
- Built in power supply for remote DC feeding
- System isolation exceeds Foxtel specifications
- Signal level control on multiswitch ensures easy system level balancing at all ports
- Graduated output on multiswitches allows balanced levels on long and short cable runs
- Longer cable runs (up to 45m) can be achieved with the high output on multiswitches (up to 92dBµV)
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with Foxtel and Australian standards.
Applications
- Large homes
- Small blocks of six apartments
- Ideal for up to 8 dual outlets where all outlets are within 40m of the Multiswitch
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Efficient signal distribution reduces the need for multiple satellite dishes and receivers, minimizing electronic waste.
- Mains powered design ensures stable operation with minimal energy consumption.
Warranty Information
Standard manufacturer warranty applies. Please contact supplier for details.
Available Now
The Terra Multiswitch 5 In 8 Out is available now for immediate purchase. Ideal for satellite signal distribution in large homes and small apartment blocks.
