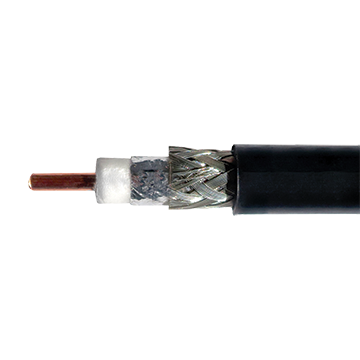

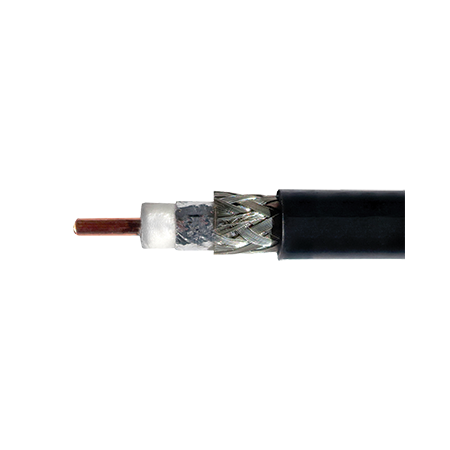

Coaxial Cable LMR-LL400 | 10mm Low Loss | 50 Ohm | Flexible Design by Matchmaster
Coaxial cable with 10mm low loss design and 50 Ohm impedance—ideal for broadband communication systems. Built for enhanced signal quality, with flexible design suitable for various installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Coaxial Cable LMR-LL400 Type 10mm Low Loss Broadband Communication Cable (Cut to Length)
Brand: Matchmaster
SKU: 56MM-E400-1
Alternatively Known As: LMR400 Cable, LL400 Coaxial Cable, Low Loss Coax Cable, 10mm Coaxial Cable, Broadband Communication Cable
Technical Specifications
- Centre Conductor: Solid copper clad aluminium, 2.74mm diameter
- Insulation: Gas injected foamed polyethylene, 7.24mm diameter
- Shield 1: Bonded aluminium tape (aluminium/polyester/aluminium), 7.39mm diameter
- Shield 2: Annealed tinned copper wire braid (8/24/0.16mm), 8.13mm diameter
- Jacket: Non-contaminating PVC, extruded, 10.29mm diameter
- Cable weight: 13.3 kg per 100m
- Max recommended pulling tension: 72.7 kg
- Minimum bend radius: 25.4 mm
- Operating temperature range: -40° to +80°C
- Attenuation and electrical characteristics vary with frequency from 30 MHz to 2500 MHz
- Maximum operating voltage: 2500 V RMS
- Cut off frequency: 16.2 GHz
- Return loss: ≥ 20 dB in 820-960 MHz and 1700-2200 MHz ranges
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 13.3 kg
Key Features
- LMR/LL400 low loss cable for cellular antenna systems
- Cable can be cut to length in 1m increments
- Impedance: 50 ± 1 Ω
- Velocity of propagation: 85%
- Frequency range: 30-2500MHz
- Return loss ≥ 20 dB
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper cable handling, cutting, and termination for optimal performance.
Applications
- Cellular antenna systems
- 4G01 and 4G02 antenna kits with cable runs longer than 6m
- Broadband communication requiring low loss coaxial cable
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low loss cable reduces signal degradation, minimizing the need for additional amplification and energy consumption.
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster Coaxial Cable LMR-LL400 Type 10mm Low Loss Broadband Communication Cable is available now for immediate purchase. Ideal for cellular and broadband communication installations requiring low loss cable runs.
